2-61
2
Board Explorer
n
Database Matching
“Database Matching” is performed by batch for the board specified in the Database Utility window or the
board selected using the Board Explorer.
Whenyouclickthe[DatabaseMatching]buttonintheDatabaseUtilitywindow,theprocessingstartsaftera
confirmation dialog is displayed. The same operation can be performed by selecting the board using the Board
Explorerandselecting“DatabaseMatching”“DatabaseBoard”fromtheright-clickcontextmenuoftheBoard
Explorer.
Database Matching
64285-S0-10
If the check box in the bottom of the above message box is selected and no match is found in the user database
area, the parts data you have created for the board data will be stored into empty positions in the user database
area.
Ifyouclick[OK]button,itwillstart.
The following dialogs are similar to those in the section “
n
Set from Database All”.
n
Database Matching from board
“Database Matching from board” is performed by batch for the board specified in the Database Utility window
or the board selected using the Board Explorer.
Whenyouclickthe[DatabaseMatchingfromboard]buttonintheDatabaseUtilitywindow,theprocessing
starts after a confirmation dialog is displayed. The same operation can be performed by selecting the board
usingtheBoardExplorerandselecting“DatabaseMatching”“BoardDatabase”fromtheright-clickcontext
menu of the Board Explorer.
Database Matching from board
64286-S0-10
If the check box in the bottom of the above message box is selected and no match is found in the user database
area, the parts data you have created for the board data will be stored into empty positions in the user database
area.
Ifyouclick[OK]button,itwillstart.
The following dialogs are similar to those in the section “
n
Set from Database All”.
2-62
2
Board Explorer
n
Database Matching by Shape Name
“Database Matching by Shape Name” is performed by batch for the board specified in the Database Utility
window or the board selected using the Board Explorer.
Whenyouclickthe[DatabaseMatchingbyShapeName]buttonintheDatabaseUtilitywindow,the
processing starts after a confirmation dialog is displayed. The same operation can be performed by selecting
the board using the Board Explorer and selecting “Database Matching by Shape Name” “Database Board”
fromtheright-clickcontextmenuoftheBoardExplorer.
Database Matching by Shape Name
64287-S0-10
Ifyouclick[OK]button,itwillstart.
The following dialogs are similar to those in the section “
n
Set from Database All”.
n
Database Matching from board by Shape Name
“Database Matching from board by Shape Name” is performed by batch for the board specified in the Database
Utility window or the board selected using the Board Explorer.
Whenyouclickthe[DatabaseMatchingfromboardbyShapeName]buttonintheDatabaseUtilitywindow,
the processing starts after a confirmation dialog is displayed. The same operation can be performed by
selecting the board using the Board Explorer and selecting “Database Matching by Shape Name” “Board
Database”fromtheright-clickcontextmenuoftheBoardExplorer.
Database Matching from board by Shape Name
64288-S0-10
Ifyouclick[OK]button,itwillstart.
The following dialogs are similar to those in the section “
n
Set from Database All”.
2-63
2
Board Explorer

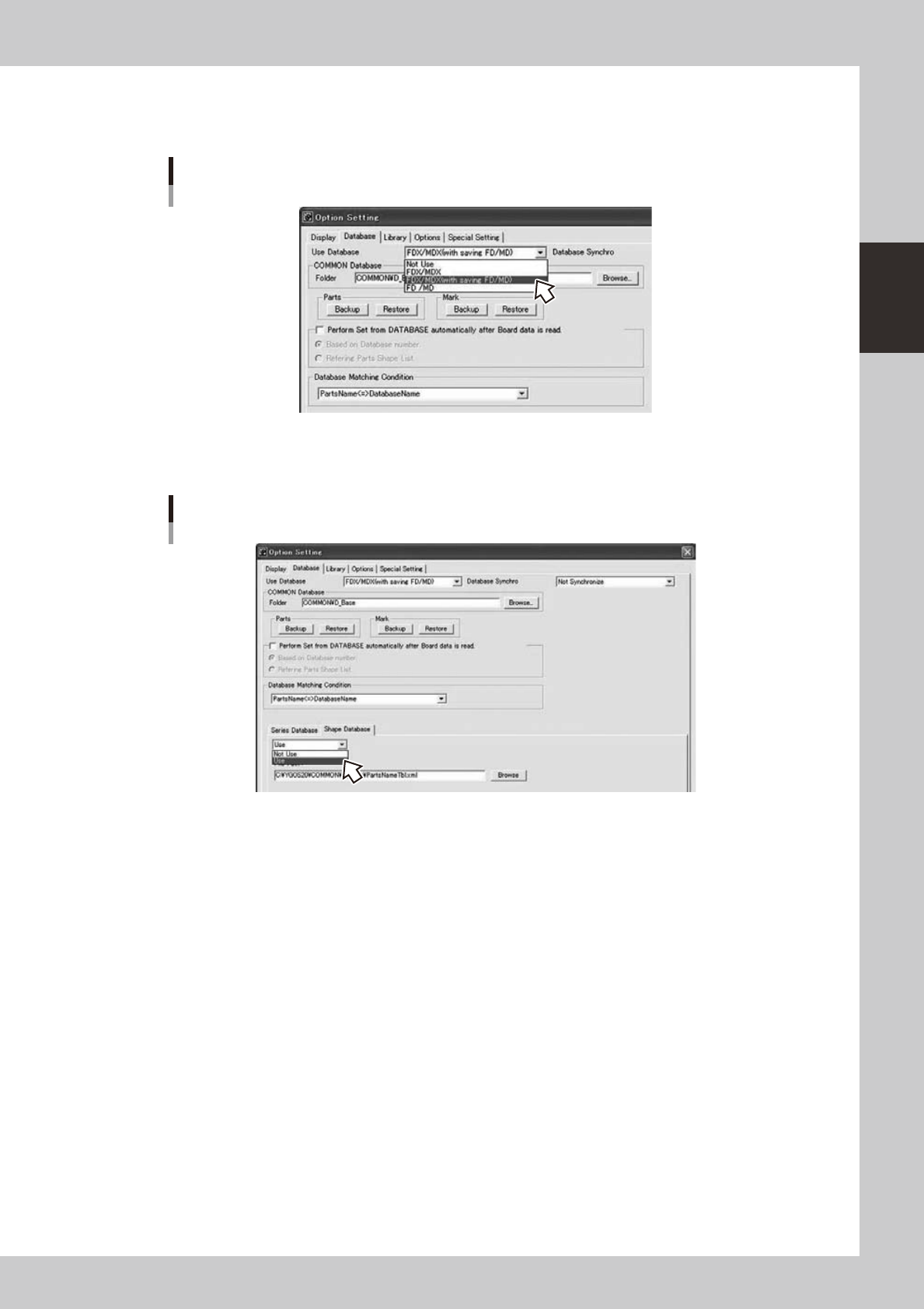

5.4.2 Settings
In the Option Setting, please select excluding “Not Use” at “Use Database”.
Option Setting
64290-S0-00
If you want to do “Database Matching by Shape Name” and “Database Matching from board by Shape Name”,
please select “Use” at “Shape Database”.
Select “Use” for “Shape Database”
64291-S0-00
5.4.3 Limitations
• It doesn’t correspond to the Inspection Database for Printer.
• It doesn’t correspond to the Parts Library and Mark Library.
• Only the board data that exists under the Factory Folder and the under folder can operate the Database.
• When “Copy Back to Database ALL” is done from the Board Explorer, following
Database No. used by system is skipped.
· PartsDatabaseNo.ofYAMAHAarea.(No.980to1000)
· Parts Database No. using Multi max.
· MarkDatabaseNo.ofYAMAHAarea.(No.280to300)
· Mark Database No. using Bad Mark for BNC.
· Mark Database No. using Nozzle Station MACS.
* It is possible from the Board Editor.
