Page
HANWHA TECHWIN
98
SM481
PLUS

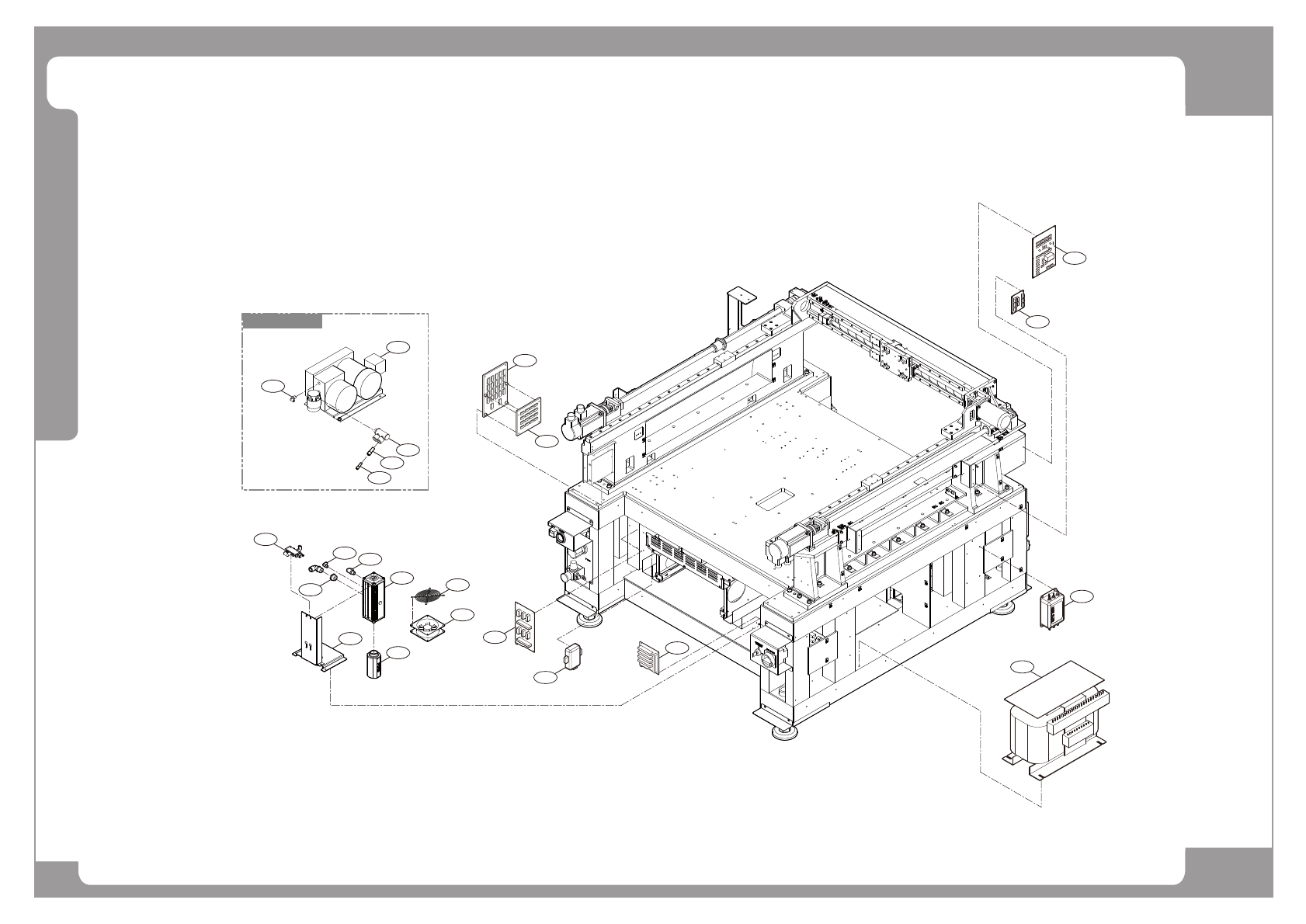

Electric Device Ass’y(3/4)
CAN FEEDER BOARD
6
7
CAN CONVEYOR BOARD
16
17
20
18
19
Option
21
11
12
14
10
1
2
4
3
9
8
5
22
13
15
23
Page
HANWHA TECHWIN
99
SM481
PLUS
Electric Device Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J91741042A SM421_AXIS_SENSOR_BOARD_ASSY VER1.0 1
2 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
3 AM03-019057A CABLE ASSY-SM471_NOISE_FILTER_MODULE 1 EP07-901542 / J91671267A
4 EP23-000028A TRANSFORMER-3PHASE, 3.5KVA 1 EP23-900012 /EP23-000012A
5 AM03-005338A SM471 AXIS SENSOR BD VER1.0 1
6 EP06-901169 MONITOR_DISTRIBUTOR NM-V21 1
7 AM06-000359B ASSY,PCB SMD-SM400_VISION_IF_BD 1 AM06-000359A
8 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
9 J90601030B FR_OPERATE_BOARD 1
10 FC09-001657B BRACKET-BKT VAC_GEN 1
11 HP11-000058 P6010-AK-01-LA52SG 1
12 HP06-900204 FITTING SQL10-02S(WHITE) 1
13 HP14-000978 SOL-VAVLE 1 HP14-900045
14 HP09-900158 SILENCER [AN101-01] 1
15 HP04-900011 COVER-COVER PUMP 1 OPTION
16 HP11-001019 PUMP-PUMP KHA400A-301-G1 1 HP11-000059 OPTION
17 HP06-900104 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1 FC28-000105 OPTION
18 HP06-900046 JOINT KQ2R04-08 1 OPTION
19 HP06-001070 FITTING-FITTING KQ2VT12-03S;ELBOW 1 HP06-000250 OPTION
20 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1 OPTION
21 HP11-000058 P6010-AK-01-LA52SG 1
22 FC28-000103 ADAPTER M3/4 F3/8 1
23 EP07-901508 COOLING FAN 1 OPTION
Page
HANWHA TECHWIN
100
SM481
PLUS

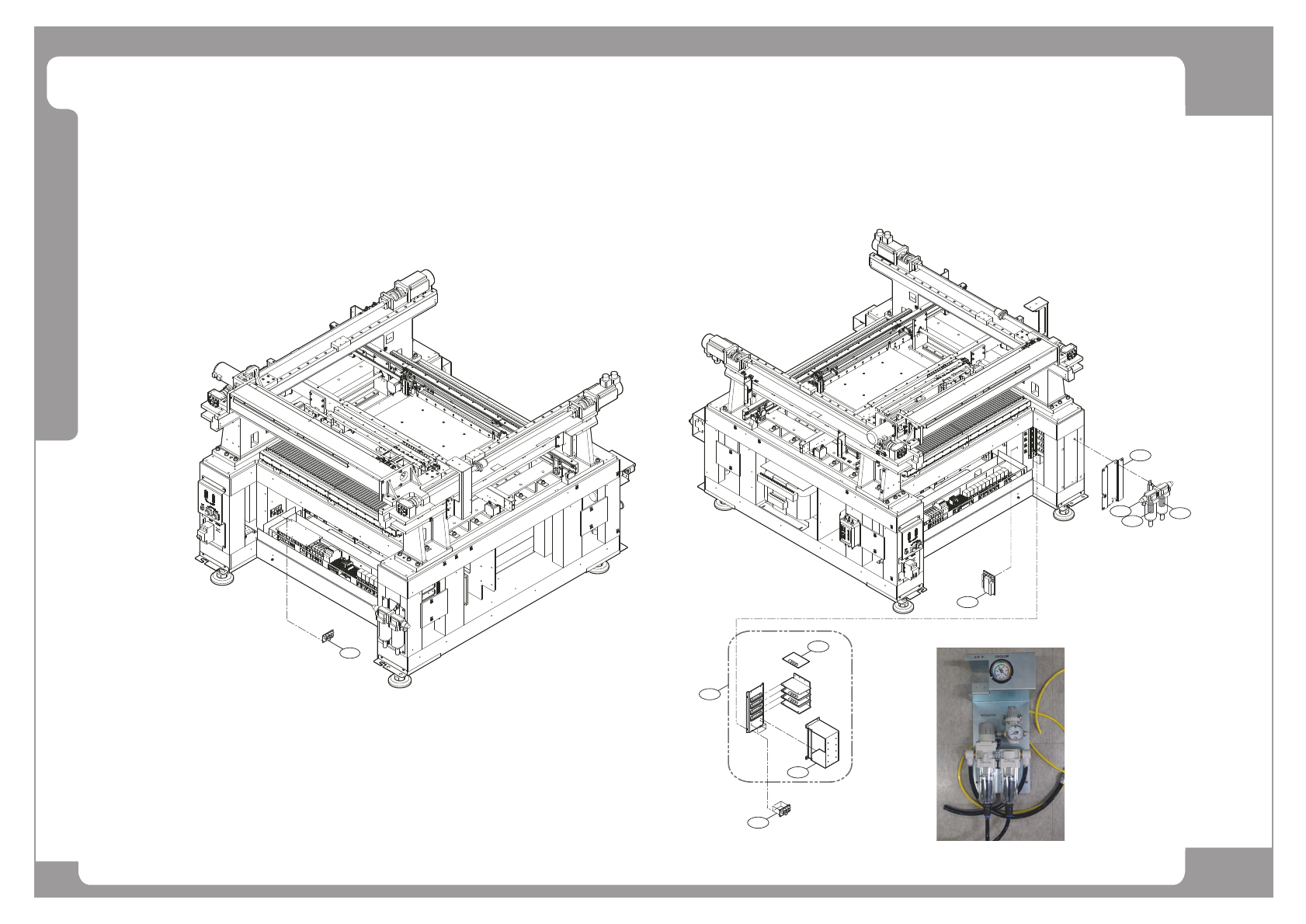

Electric Device Ass’y(4/4)
1
5
7
8
6
2
4
3
9
10
AM03-018434A
ASSY,AIR-GAUGE-
PANEL_NEW
