Page HANWHA TECHWIN 53 SM481 PLUS Conveyor Ass’y(2/4) NO. Lev . P ART NO. P A RT NAME Q'TY Old No. Supply Supply L T Reference 1 J7053078 5B PCB GUIDE-FC J70 530785B 1 2 J7153104 8B PCB_GUIDE_END 2 3 J7253007A IDLER…
Page
HANWHA TECHWIN
52
SM481
PLUS

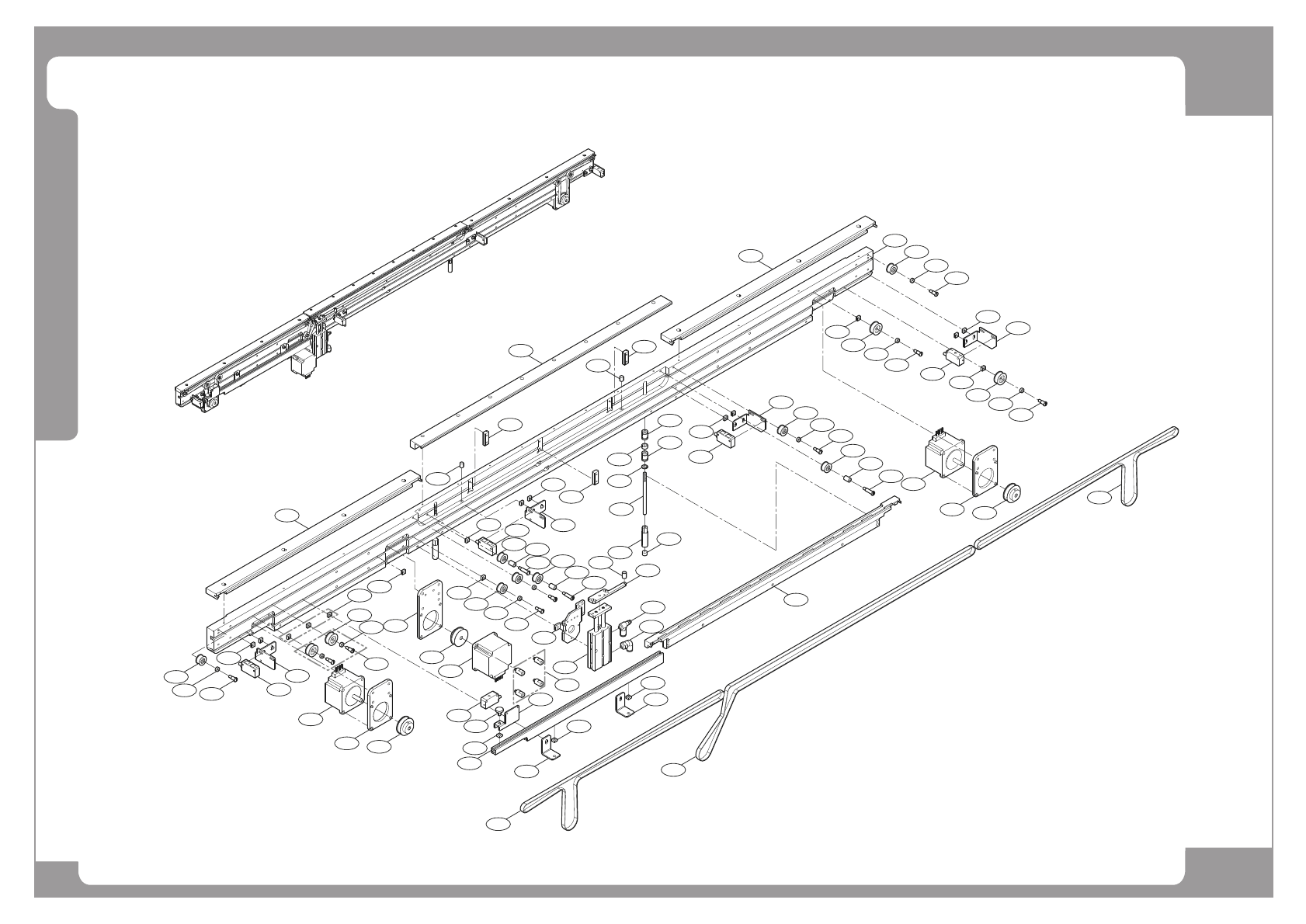

Conveyor Ass’y(2/4)
1
2
31
2
27
40
3
4
5
3
29
28
41
9
42
3
4
5
24
8
18
8
25
26
33
37
39
28
29
3
28
3
29
6
32
32
8
8
16
8
3
4
5
10
12
3
8
4
5
15
43
17
8
22
23
18
19
19
20
11
12
44
45
11
12
13
8
31
32
34
35
36
8
6
38
43
8
8
9
4
5
9
8
21
14
5
7
6
7
4
5
9
4
Page
HANWHA TECHWIN
53
SM481
PLUS
Conveyor Ass’y(2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70530785B PCB GUIDE-FC J70530785B 1
2 J71531048B PCB_GUIDE_END 2
3 J7253007A IDLER 2 8
4 J7053047A IDLER SPACER-S 9
5 J7053009A IDLER SHAFT-S2 [J7053009A] 9
6 EP19-900099 PHOTO SENSOR[E3S-LS3N] 3 E3S-LS3N (OMRON)
EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 3 CX-461A-C05 (PANASONIC)
7 J70531088B WORK_SENSOR_BRACKET 2
8 J7053184A SQUARE NUT M4 19
9 J7253006A IDLER 1 4
10 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007403A / AM03-007403B LONG TYPE: J90831440B
11 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2
12 J7153111A TEP MOTOR PULLEY [J7153111A] 3
13 J70531084A BRACKET_BELT_MOTOR_B J70531084A 1
14 J70531083A ALT_MOTOR_SUPPORT J70531083A 4
15 J7053689A QUICK SENSOR KNOB[J7053689A] 1 BYD30-DDT (AUTONICS)
16 FC09-002034A Q_SENSOR_BKT 1 BYD30-DDT (AUTONICS)
17 J7153331A RAIL SENSOR[J7153331A] 1
18 J70531086A BRACKET_RAIL J70531086A 2
19 MC05-900068 BELT_410_1 2
20 MC05-900069 BELT_410_F MAM-5P-1517-7W 1
21 J71530399C CLAMP FRONT FRAME 1
22 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1
23 FC09-002808A BRACKET-CON_STOP_CYLINDER_SMC;SPCC 1 J70531089A
24 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047
25 HP14-900083 THROTTLE VALVE(ELBOW) 1
26 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL;SS400 1 J70531050A
Page
HANWHA TECHWIN
54
SM481
PLUS
Conveyor Ass’y(2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
27 J70531029B STOPPER_POST 1
28 J7053770A IDLER SHAFT-M[J7053770A] 3
29 J7053048A IDLER SPACER-M 3
31 J7253009B STOPPER 2 [J7253009B] 2
32 J7153036A SLIDE GUIDE 3
33 J7253008A STOPPER 2
34 J7153010B ADJUST SHAFT [J7153010B] 2
35 J7153034A CLAMP SHAFT 2
36 FC18-901355 C-RING DIA11(HOLE) 2
37 MC06-900006 BALL_BUSH LMU5 2
38 J7153033A BUSH SPACER 2
39 MC06-900006 BALL_BUSH LMU5 2
40 J70531100B BRACKET_SENSOR_IN 2 CX-461A-C05 (PANASONIC)
41 FC09-002127A BRACKET-SENSOR_OUT_P;SPCC 1 BYD30-DDT (AUTONICS)
J70531100B BRACKET_SENSOR_IN 1 CX-461A-C05 (PANASONIC)
42 FC39-000975A FRAME-CONV_FRONT_P;A6N01S-T5 1
43 EP19-900092 PHOTOELECTRIC SENSOR [BYD30-DDT] 2 BYD30-DDT (AUTONICS)
EP19-001025 SENSOR,OPTIC-[CX-461],1,MIGRATION 2 CX-461A-C05 (PANASONIC)
44 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007407A / AM03-007407B LONG TYPE: J90831441B
45 J90831439B_AS CONV_BELT1_STEP_MOTOR_ASSY 1 AM03-007405A / AM03-007405B LONG TYPE: J90831431B
