Page HANWHA TECHWIN 74 SM481 PLUS Head Ass’y(1/5) 1 6 7 10 11 4 4 5 3 2 16 16 13 8 9 12 12 14 15
Page
HANWHA TECHWIN
73
SM481
PLUS
Long Conveyor Ass’y 1500mm(4/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Reference
Page
HANWHA TECHWIN
74
SM481
PLUS
Head Ass’y(1/5)
1
6
7
10
11
4
4
5
3
2
16
16
13
8
9
12
12
14
15
Page
HANWHA TECHWIN
75
SM481
PLUS
Head Ass’y(1/5)

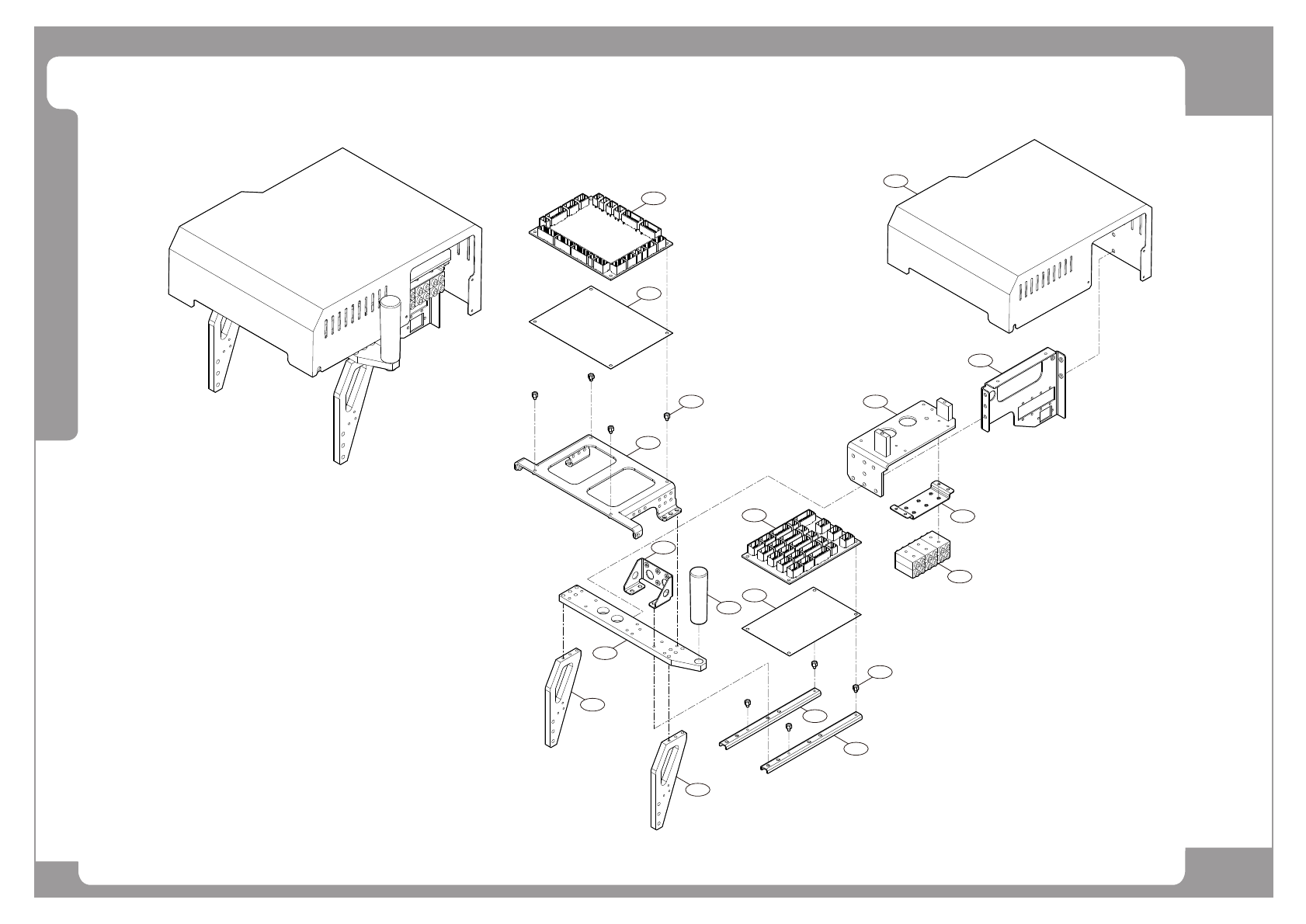

NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000963A HEAD_TOP_COVER 1
2 AM03-005337C ASSY,BOARD-SM471 HEAD IF BOARD VER1.0 1 AM03-005337A / AM03-005337B
3 FC36-000186A PLATE-IO_BOARD_SHEET 1 FC30-000990A
4 FC29-900610 HEX SUPPORT 8
5 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A
6 FC09-002301A BRACKET-481_HEAD_BKT_PANEL 1
7 FC09-001568A BRACKET-FLAT_CABLE_BKT 1
8 FC09-001847A BRACKET-FITTING_BKT 1
9 J1301070 STRAIGHT_CONNETOR_FITTING 6
10 AM03-005341B ASSY,BOARD-SM471 MOTOR IF BOARD VER1.0 1 AM03-005341A
11 FC36-000187A PLATE-MOTOR_IF_BOARD_SHEET 1 FC30-000991A
12 FC09-001576A BRACKET-IF_BOARD_BKT 2
13 FC29-900148 HANDLE BG-10 1
14 FC09-001690A BRACKET-HEAD_BKT_FIX 1
15 FC30-001147A PLATE-SM481_REF_PLATE 1
16 J71541016A HARNESS_SUPPORT J71541016A 2
