SM481_PLUS_TRM(KEC) - 第97页
Page HANWHA TECHWIN 85 SM481 PLUS Head Ass’y(4/5) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference
Page
HANWHA TECHWIN
84
SM481
PLUS
Head Ass’y(4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
28 J7055557A BEARING HOUSING[J7055557A] 1
29 J7155523A PULLEY (S-AXIS 2)[J7155523A] 1
30 J71551026A PULLEY-S_AXIS1 J71551026A 1
31 MC05-900048 TIMING BELT[255-3GT-6] 1
32 MC11-000434A SM411PLUS_CAM 2
33 FC30-001164A PLATE-481_S_SENSOR_DOG 1
34 FC18-901347 E-RING[DIA1.5(SUS)] 2
35 FC18-901044 HEX NUT [M3 (BL/ZN)] 2
36 FC18-902841 SOCKET SET SCREW [M3*4 (BL/ZN)] 2
37 FC18-902728 SOCKET HEAD CAP SCREW M3*12 (NI/ZN) 4
38 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 6
39 FC18-902711 SOCKET HEAD CAP SCREW M2.5*8 (NI/ZN) 4
40 AM03-005553B CABLE ASSY-FLYING_CAMERA_IF 5 AM03-005553A
Page
HANWHA TECHWIN
85
SM481
PLUS
Head Ass’y(4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
HANWHA TECHWIN
86
SM481
PLUS

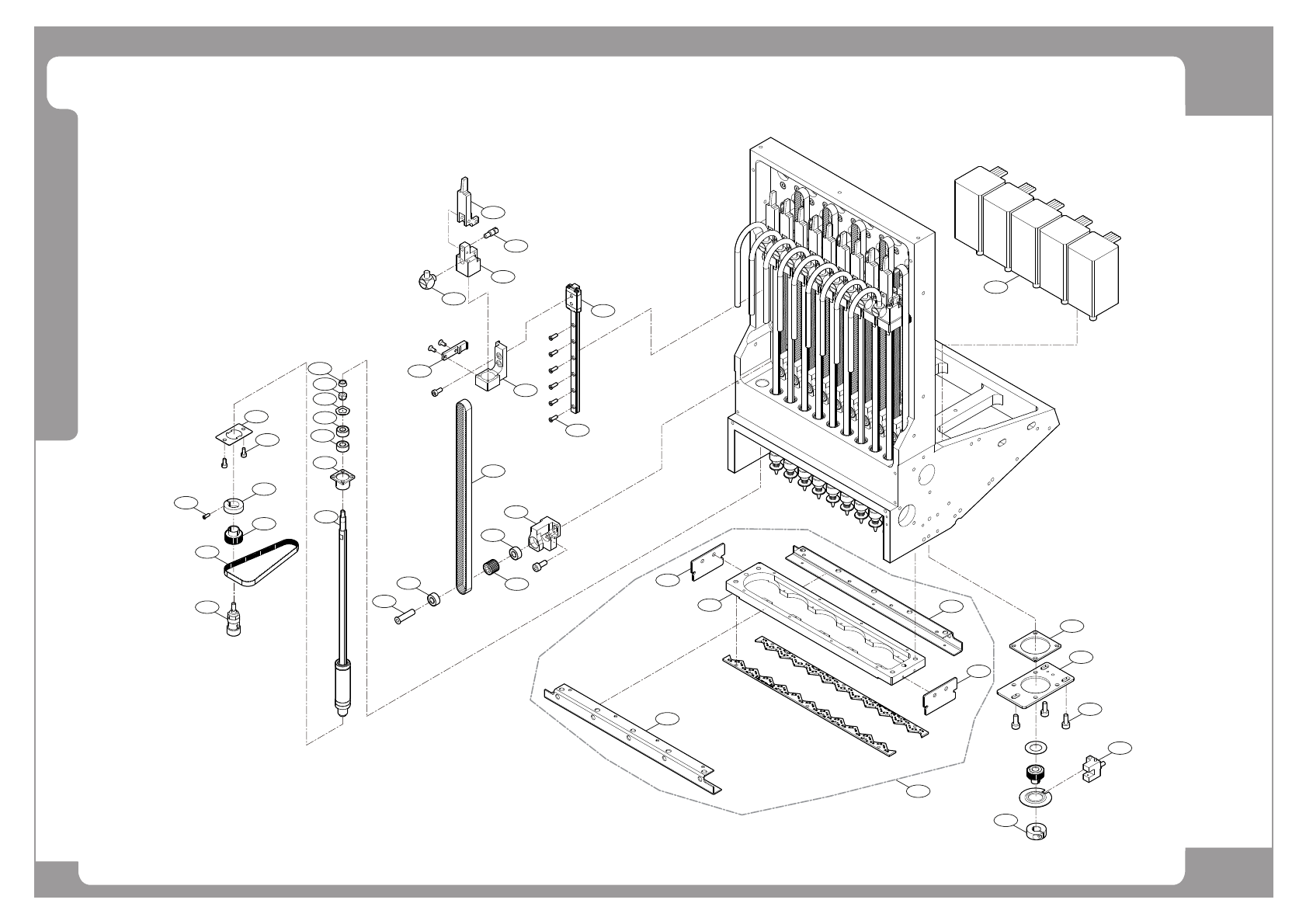

Head Ass’y(5/5)
1
17
18
15
13
35
14
12
16
21
22
19
20
20
29
32
30
38
31
23
25
24
26
26
27
28
34
33
7
2
2
3
8
36
10
11
3
4
5
37
