6.2.2 Tape feeder module 3 x 8 mm S

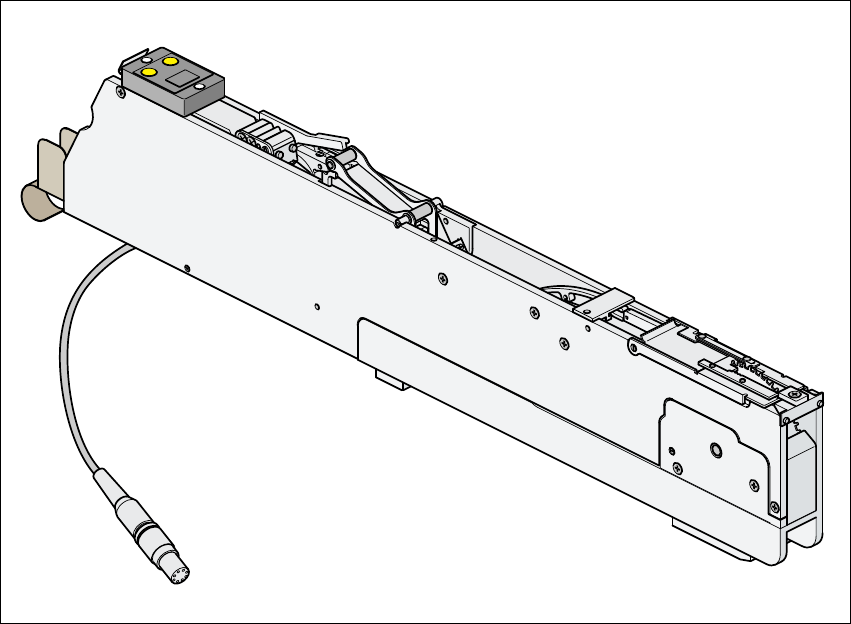

Fig. 6.2 - 2 Tape feeder module 3 x 8 mm S
Item no. 00141098-xx 6
Width 30.6 mm 6
Tracks per feeder module 3 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 to 10,000 6
Conveyor increment 2mm / 4mm 6
User Manual SIPLACE CS 6 Component handling
Software Version SR.408.xx 03/2006 US Edition 6.2 Technical data for the S feeder modules
133
6.2.3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6
Fig. 6.2 - 3 Tape feeder module 3 x 8 mm S for 0201/0402 components
6
Item no. 00141099-xx 6
Width 30.6 mm 6
Component range 0201, 0402 6
Tracks per feeder module 3 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 10,000 6
Conveyor increment 2mm / 4mm 6
6 Component handling User Manual SIPLACE CS
6.2 Technical data for the S feeder modules Software Version SR.408.xx03/2006 US Edition
134
6.2.4 Tape feeder module 12/16 mm S
Fig. 6.2 - 4 Tape feeder module 12/16 mm S
Item no. 00141092-xx 6
Width 30.6 mm 6
Tracks per feeder module 1 6
Feeder module locations filled 1 6
Maximum number of feeder modules 2 x 20 6
Stock of components for 7" reels approx. 4,000 6
Conveyor increment from 4mm to 24 mm in 4 mm increments 6
