User Manual SIPLACE CS 6 Component handling

Software Version SR.408.xx 03/2006 US Edition 6.3 Component trolley

147

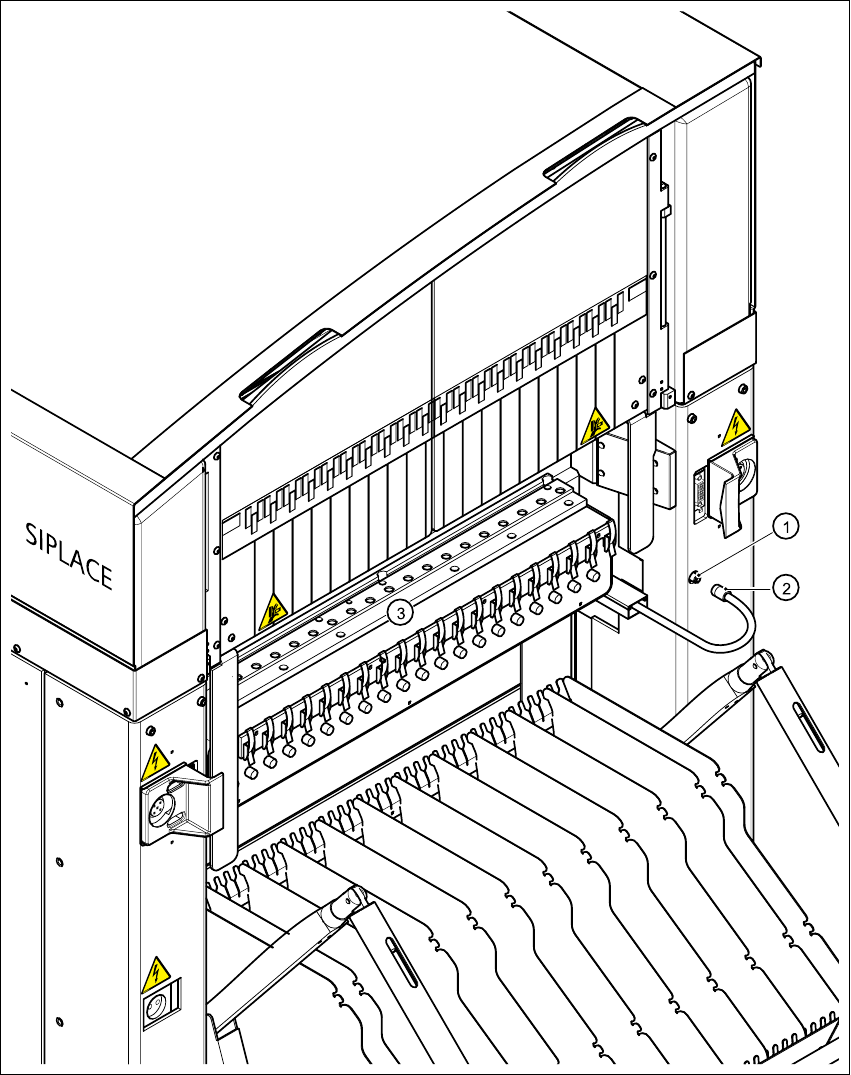

Fig. 6.3 - 4 Connecting the compressed air supply for bulk case feeders

(1) Coupling connector for compressed air

(2) Coupling socket with supply hose

(3) Compressed air distributor for bulk case feeder modules

6 Component handling User Manual SIPLACE CS

6.3 Component trolley Software Version SR.408.xx03/2006 US Edition

148

6.3.4 Support for the middle tape reel for 3x8 mm feeder modules

Type 3x8 mm S feeders transport components to the pick-up position on three tracks. The tape

reels of the two outer tracks are positioned between the separating plates in the tape container.

The middle tape reel is arranged over the tape reels for the two outer tracks.

For the middle tape reels you will therefore also need:

– 1 adapter plate for holding the tape reel holder (item 1) and

– 1 tape reel holder (item 2) for every two feeders

The adapter plate is fixed to the component trolley with four fillister head screws, and the tape

reel holders are inserted into the square openings in the adapter plate.

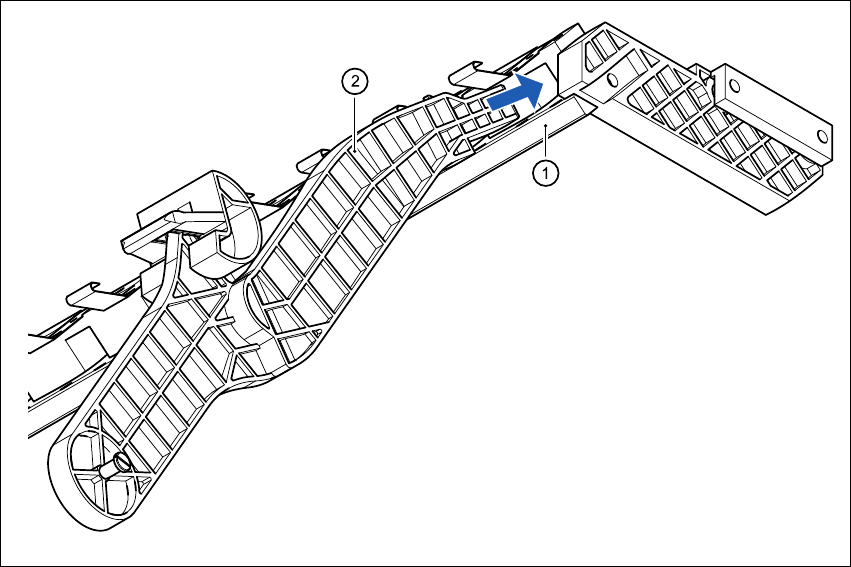

Fig. 6.3 - 5 Support for the middle tape reel for 3x8 mm feeder modules

(1) Adapter plate

(2) Tape reel holder

User Manual SIPLACE CS 6 Component handling

Software Version SR.408.xx 03/2006 US Edition 6.4 Used tape cutter

149

6.4 Used tape cutter

The placement system has a used tape cutter at each of the two component trolley locations. It is

used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the

component trolley.

Æ Empty the waste tape container every day (item 7 in Fig. 6.3 - 1, page 144).

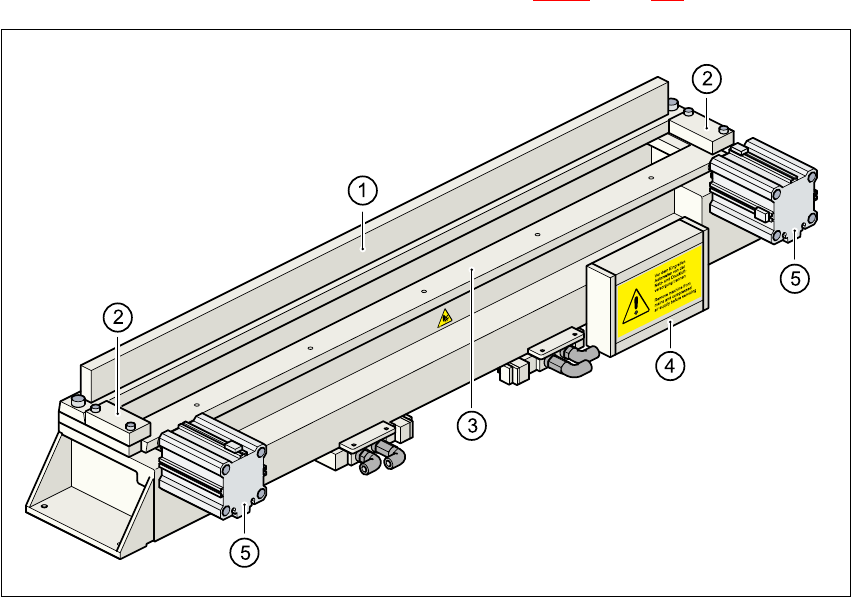

Fig. 6.4 - 1 Used tape cutter

(1) Stationary cutting blade

(2) Retainer

(3) Moving cutting blade

(4) Electronic control unit

(5) Short stroke cylinder
