User Manual SIPLACE CS 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
31
2.2.3.2 Warning label W207 on the PCB conveyor control unit
2

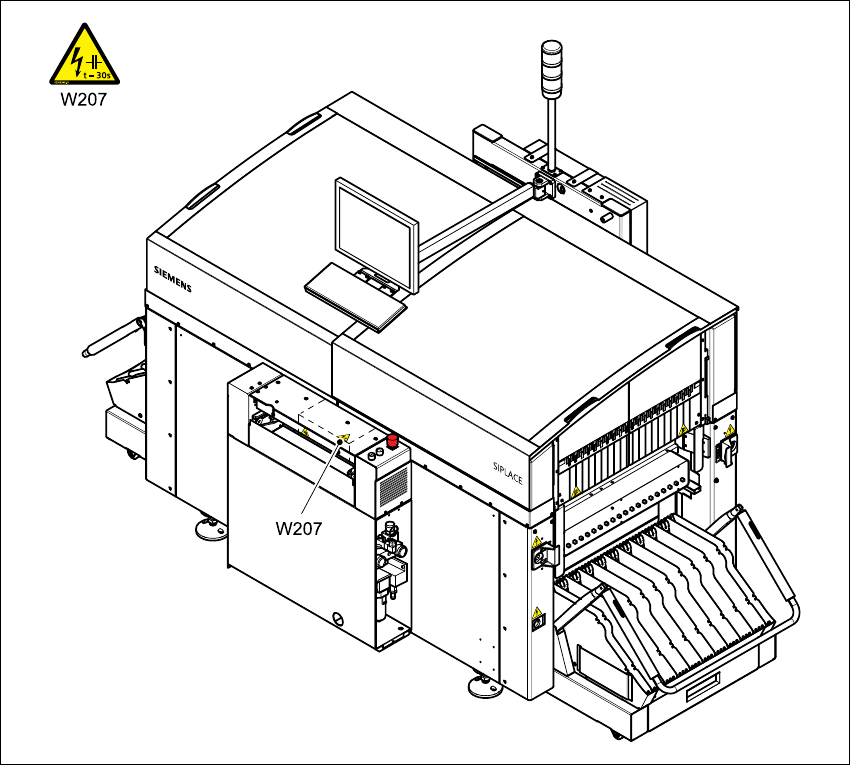

Fig. 2.2 - 8 Warning label W207 on the PCB conveyor control unit
Item W207, item no. 03009346-01
2 Operational safety User Manual SIPLACE CS
2.2 Warning labels Software Version SR.408.xx03/2006 US Edition
32
2.2.4 Warning label W211 on the CEKON plug
2
Item W 211 (number per machine: 1)
2

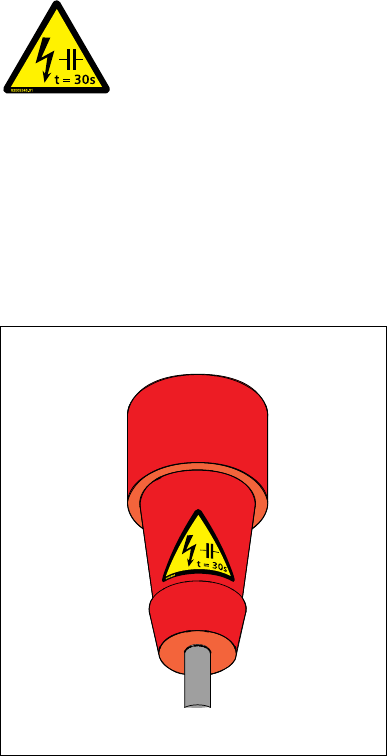

Fig. 2.2 - 9 Warning label W211 on the CEKON plug
Item W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains
to allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious
injury. Avoid contact with power plug and/or wire ends for 30 seconds
User Manual SIPLACE CS 2 Operational safety
Software Version SR.408.xx 03/2006 US Edition 2.2 Warning labels
33
2.2.5 Warning label W209 on the EMERGENCY STOP buttons
2
Warning label W209 in Fig. 2.2 - 10, item no. 03009349-01 (number per placement system: 2)
2
Fig. 2.2 - 10 Warning label W209 on the EMERGENCY STOP buttons
Item W209, item no. 03009349-01
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA,
warning label W209 is affixed to the extension
kit instead of the yellow ring on the EMER-
GENCY STOP buttons.
