2.4.5 Securing the placement machine to prevent it slipping

In areas with an earthquake risk, it is essential to secure the placement machine to prevent it

slipping.

Two holes for M8 bolts are provided in the machine feet for this purpose.

Æ Use the bolts to fix the placement machine to the floor as shown in the diagram below.

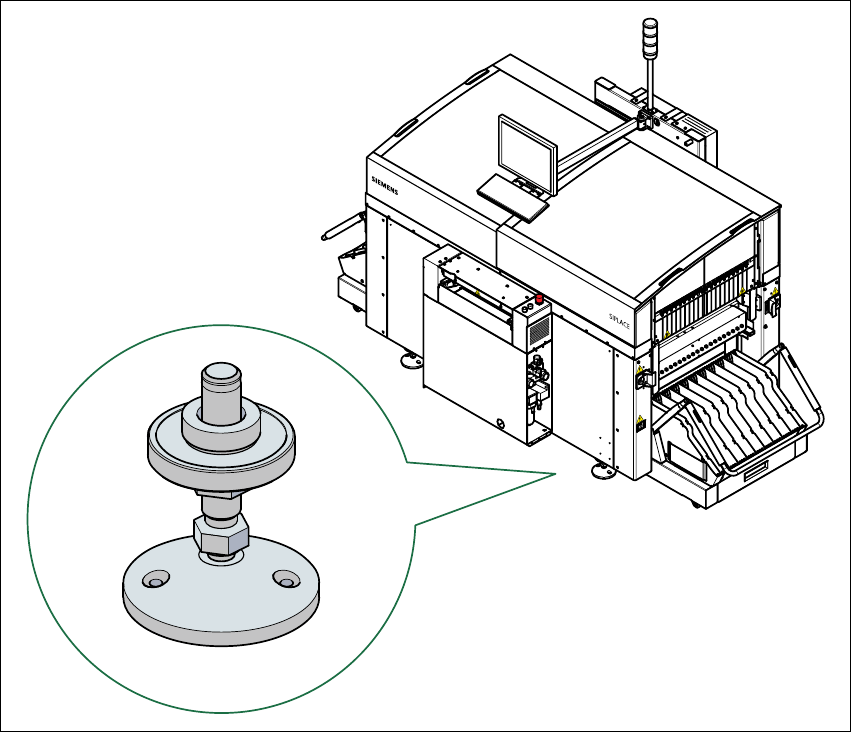

Fig. 2.4 - 3 Securing the placement machine to prevent it slipping

User Manual SIPLACE CS 2 Operational safety

Software Version SR.408.xx 03/2006 US Edition 2.4 Safety instructions for operating the machine

2.4.6 Safety instructions for processing capacitors based on powdered metal

There is a risk associated with processing capacitors based on powdered metal (e.g. tantalum).

The risk is that

– an exothermic reaction, i.e. a sudden build-up of heat, may occur, if these components are

damaged. If the ambient conditions are unfavorable, and depending on the capacitance, this

buildup of heat can cause damage.

– This effect can occur when these components are cut.

Please contact your suppliers to clarify whether the components that you handle are affected.

In extremely rare cases, this risk can occur in the tape cutter of SIPLACE machines, with the

remote possibility of causing a smoldering fire in the waste tape.

The ambient conditions are unfavorable if:

(1) The components remain on the tape while the set tape cycle is checked (since the operator

can cycle the feeder onward without removing components during this check).

(2) The components remain on the tape, e.g. due to a tear in the cover foil.

(3) The components remain on the tape, and the components or tape do not conform to the

specification, thus increasing the pickup error rate.

Please follow the instructions given below to minimize the risk when placing capacitors based on

powdered metal.

(1) If the component tape is cycled onward manually, the operator must remove any components

remaining in the tape pocket.

(2) If the cover foil tears, the operator must remove any components remaining on the tape.

WARNING 2

To avoid the risk, it is essential to use only feeders that have been approved for placing such com-

ponents, namely:

for model C/D item no.: 00141118-01

for model E item no.: 00141117-01 2

2 Operational safety User Manual SIPLACE CS

2.4 Safety instructions for operating the machine Software Version SR.408.xx03/2006 US Edition

The feeders are labeled as shown below:

WARNING FIRE HAZARD 2

Æ Check and empty the waste tape container every hour.

Æ Only empty the waste tape container into suitable collection containers because of the risk of

fire. These containers must not be set up inside buildings.
