User Manual SIPLACE CS 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.4 Dimensions and weight of the placement system
69
3.4.3 Dimensions of the placement system with component trolley
3

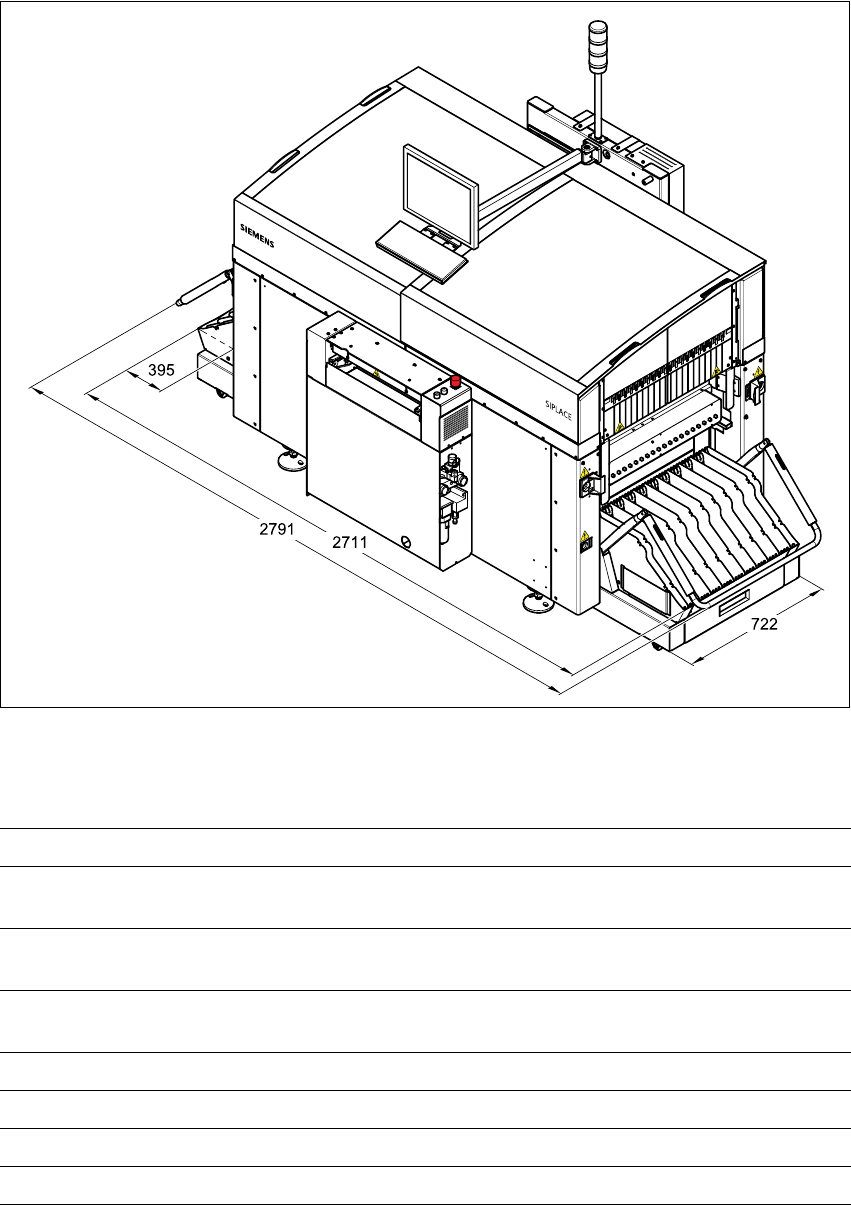

Fig. 3.4 - 3 Dimensions of the placement system with component trolley in millimeters
3.4.4 Technical data - dimensions, weight of the placement system
3
Length 1587 mm including conveyor belts
Width 1921 mm
2711 mm with component trolley
Height with warning lamp 1931 mm (standard height) /
2001 mm / 2031 mm/ 2051 mm SMEMA
Ground clearance 115 mm (standard height) /
185 mm / 215 mm/ 235 mm SMEMA
Weight of basic module 1500 kg
Weight fully equipped Approx. 2000 kg
Admissible load per unit area on foundation 1000 kg/m² min.
Load per unit area on mounting feet 4.42 kg/cm²
3 Technical data User Manual SIPLACE CS
3.4 Dimensions and weight of the placement system Software Version SR.408.xx03/2006 US Edition
70
3.4.5 Maneuvring radius of the component trolley
3
Fig. 3.4 - 4 Maneuvring radius of the component trolley in millimeters
User Manual SIPLACE CS 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.5 Controls
71
3.5 Controls
3.5.1 Position of the controls
3
Fig. 3.5 - 1 Overview of the modules - controls - part 1
(1) Operator panel, input side
(2) EMERGENCY-STOP button
(3) Start button (white)
(4) Stop button (black)
(5) Main power switch
(6) Keyboard with trackball
(7) Monitor
(8) Indicator lamp
