3 Technical data User Manual SIPLACE CS 3.12 Magnetic pin support Software Version SR. 408.xx03/2006 US Edition 98
User Manual SIPLACE CS 3 Technical data
Software Version SR.408.xx 03/2006 US Edition 3.12 Magnetic pin support
97
3.12 Magnetic pin support
Item no. 00119680-xx
Wide boards tend to deflect during placement such that, under certain circumstances, the compo-
nents can no longer be placed with the desired accuracy. Highly curved PCBs also affect the
placement accuracy. This problem can be easily rectified by fitting magnetic pin supports on the
lifting table.
3
Fig. 3.12 - 1 Magnetic pin support
3 Technical data User Manual SIPLACE CS
3.12 Magnetic pin support Software Version SR.408.xx03/2006 US Edition
98
User Manual SIPLACE CS 4 Setting up the placement system
Software Version SR.408.xx 03/2006 US Edition 4.1 Transport configuration and infrastructure
99
4 Setting up the placement system
4.1 Transport configuration and infrastructure
4

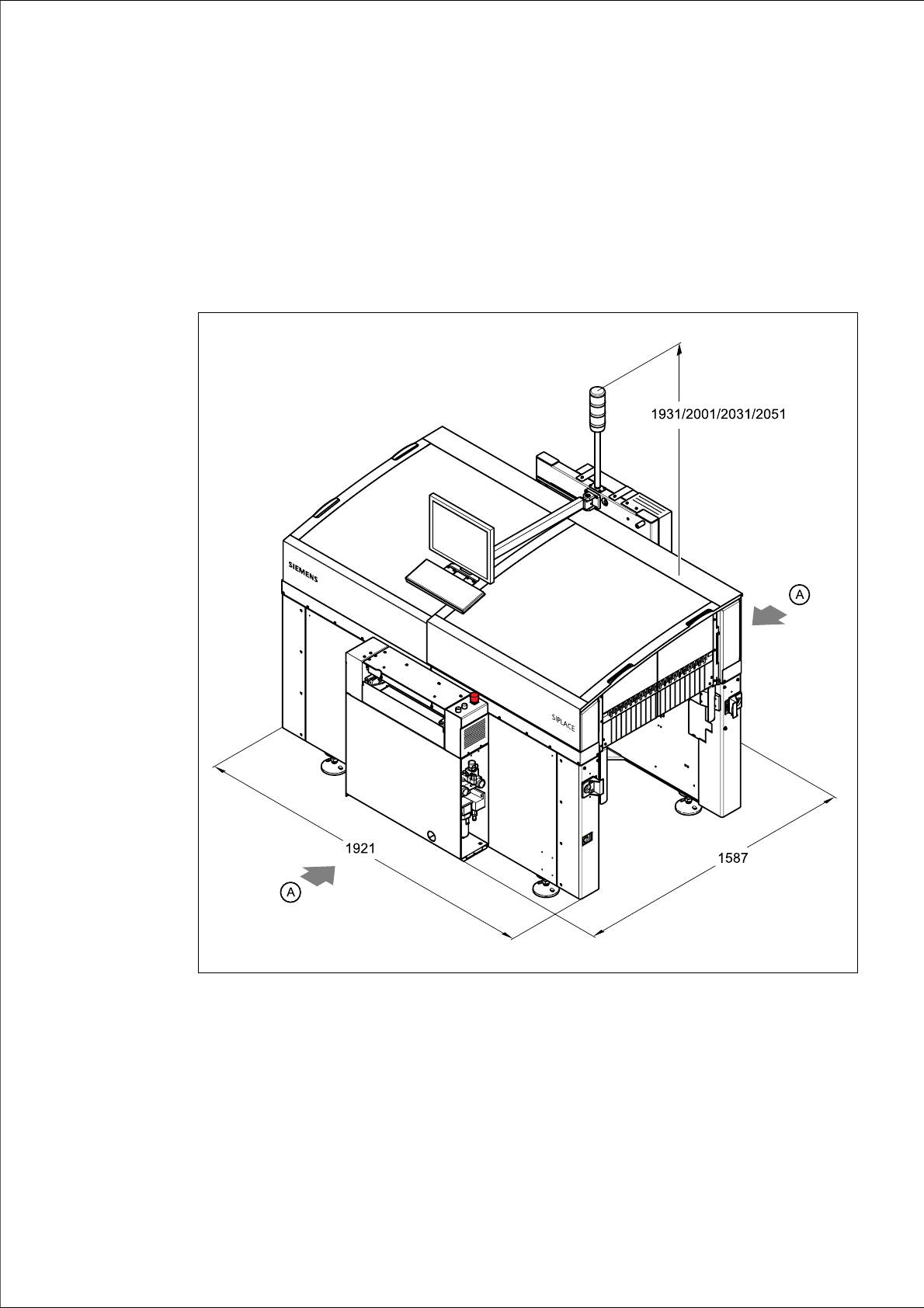

Fig. 4.1 - 1 Dimensions of the placement system during transportation and setting up in millimeters
(A) Points for attaching the fork-lift truck (fork length 1600 mm)
(1) Input conveyor
(2) Output conveyor
