MODEL TCM-X300 0306-001 114 X ゲޔ Y ゲ X AXIS, Y AXIS Fig. JB-5 Y ࠹ࡉ࡞ᬌㇱ Y T able Detector 413 402 41 1 407 413 403 41 1 407 407 41 1 413 See Fig.JB-4 Key No.301 409 412 414 405 406 405 410 409 412 414 406 401 406 405 410…
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
113
JB-4
301 630 107 7192 BASE 1 812JB-010-301
302 630 064 5156 BRACKET,LOCATE 1 812JB-010-302
303 630 064 4197 BRACKET,LOCATE 1 812JB-010-303
304 630 064 5576 HOLDER 1 812JB-010-304
305 630 109 0160 COVER 1 812JB-010-305
306 630 086 0917 MECH PARTS(URETHANES) 1 812JB-010-306
307 630 064 6016 MECH PARTS 1 812JB-010-307
308 630 117 7441 COLLAR 1 812JB-010-308
309 630 119 7982 COLLAR 1 812JB-010-309
310 630 064 5934 COVER 1 812JB-010-310
311 630 086 7978 PANEL 1 812JB-010-311
312 630 086 7985 COVER 1 812JB-010-312
313 630 119 8200 BALL SCREW 1 812JB-010-313
314 630 108 4497 GUIDE,LINEAR 1 812JB-010-314
315 630 063 9285 COUPLING 1 812JB-010-315
316 630 086 3536 MOTOR,AC-SERVO 1 MSVM7(Y),#SGMSH-15ACA-TV11
812JB-010-316
317 630 005 1377 BEARING,UNIT 1 WBK15-11 812JB-010-317
320 630 000 7633 BOLT,HEX-SCT 3 812JB-010-320
321 630 000 7664 BOLT,HEX-SCT 34 812JB-010-321
322 630 000 7770 BOLT,HEX-SCT 20 812JB-010-322
323 630 000 7787 BOLT,HEX-SCT 4 812JB-010-323
324 630 000 7893 BOLT,HEX-SCT 6 812JB-010-324
325 630 000 7909 BOLT,HEX-SCT 6 812JB-010-325
326 630 000 7916 BOLT,HEX-SCT 4 812JB-010-326
327 630 000 7923 BOLT,HEX-SCT 1 812JB-010-327
329 411 141 2905 WASHER SPR 4 3 812JB-010-329
330 411 141 6705 WASHER SPR 5 20 812JB-010-330
331 411 141 3001 WASHER SPR 6 16 812JB-010-331
332 411 141 4008 WASHER V 4X9X0.8 3 812JB-010-332
333 411 141 4107 WASHER V 5X10X1 20 812JB-010-333
334 411 141 4305 WASHER V 6X12.5X1.6 16 812JB-010-334
336 630 000 7930 BOLT,HEX-SCT 1 812JB-010-336
337 630 111 3906 BOLT,HEX-SCT(BUTTON HEAD) 10 812JB-010-337
MODEL TCM-X300
0306-001
114
X ゲޔY ゲ X AXIS, Y AXIS

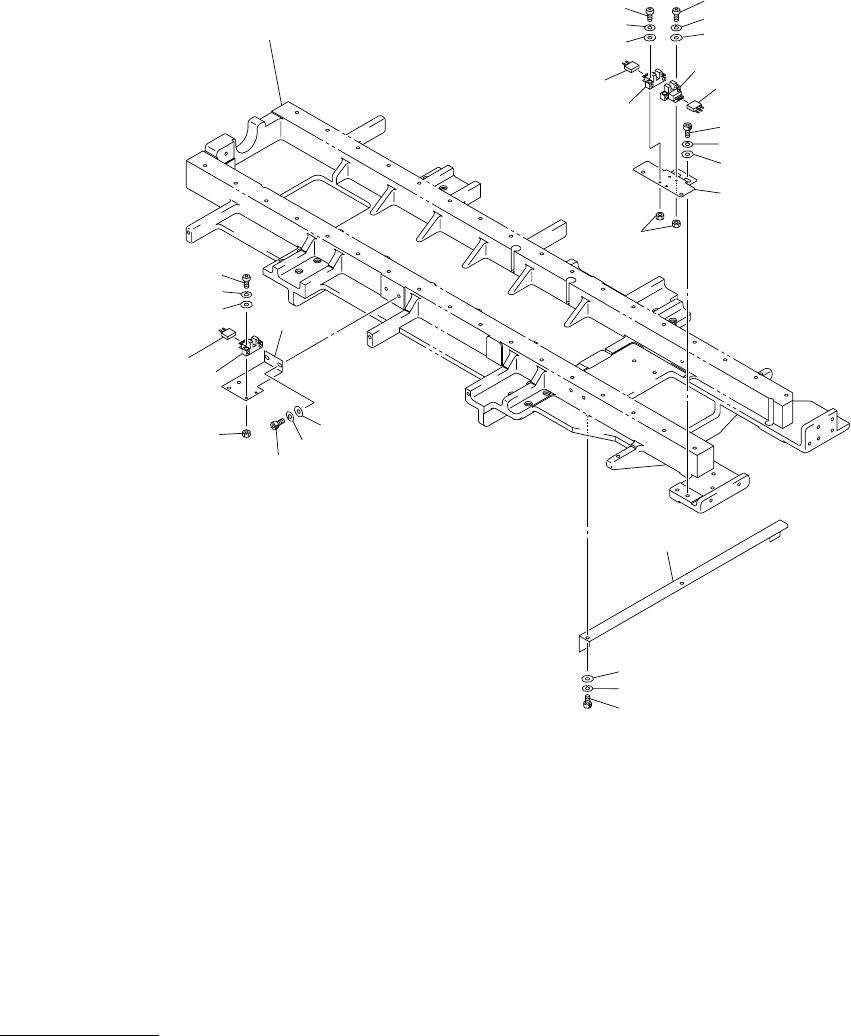

Fig. JB-5 Y ࠹ࡉ࡞ᬌㇱ Y Table Detector
413
402
411
407
413
403
411
407
407
411
413
See Fig.JB-4
Key No.301
409
412
414
405
406
405
410
409
412
414
406
401
406
405
410
409
412
414
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
115
JB-5
401 630 084 5839 BRACKET 1 812JB-010-401
402 630 109 0207 BRACKET 1 812JB-010-402
403 630 064 5699 PLATE 1 812JB-010-403
405 630 000 0252 SENSOR,PHOTO 3 BPH44,BPH45,BPH46,EE-SX671
812JB-010-405
406 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 EE-1001 812JB-010-406
407 630 000 7633 BOLT,HEX-SCT 6 812JB-010-407
409 411 113 0502 SCR PAN 3X14 6 812JB-010-409
410 411 141 0000 NUT HEX 3 6 812JB-010-410
411 411 141 2905 WASHER SPR 4 6 812JB-010-411
412 411 086 4408 WASHER SPR 3 6 812JB-010-412
413 411 141 4008 WASHER V 4X9X0.8 6 812JB-010-413
414 411 088 9005 WASHER F 3X6X0.5 6 812JB-010-414
