MODEL TCM-X300 0306-001 142 XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY T ABLE PIPING, WIRING Fig. JE-3 ㈩▤ޔ㈩✢ᡰᜬㇱ Piping, Wiring Supporter See Fig.JC-1 Key No.4 See Fig.JC-1 Key No.4 See Fig.JB-4 Key No.301 233 205 233 204 209 213 221 218 21 1 224 2…
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
141
JE-2
103 630 109 0719 MECH PARTS 1 812JE-010-103
104 630 047 9782 AIR LINE EQPT 8 812JE-010-104
115 630 109 0726 BLOCK 1 812JE-010-115
116 630 093 7459 PIPE FITTINGS 4 812JE-010-116
117 630 079 8432 AIR LINE EQPT 12 812JE-010-117
118 630 000 7503 BOLT,HEX-SCT 2 812JE-010-118
119 411 141 2806 WASHER SPR 3 2 812JE-010-119
120 411 141 3902 WASHER V 3X7X0.5 2 812JE-010-120
123 630 010 8996 BOLT,HEX-SCT 4 812JE-010-123
124 411 141 6606 WASHER SPR 2.5 4 812JE-010-124
125 411 141 3803 WASHER V 2.5X6.5X0.5 4 812JE-010-125
MODEL TCM-X300
0306-001
142
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

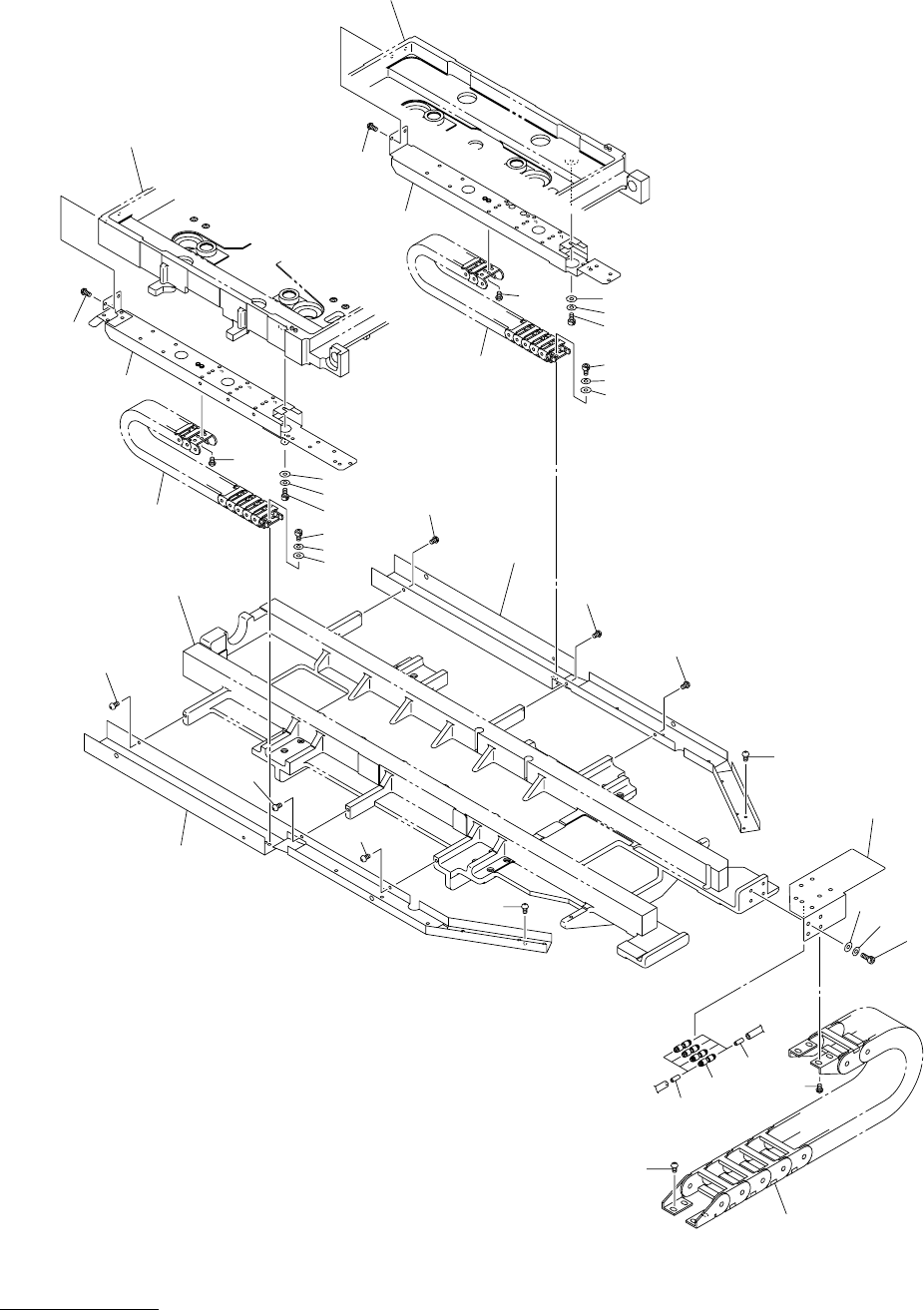

Fig. JE-3 ㈩▤ޔ㈩✢ᡰᜬㇱ Piping, Wiring Supporter
See Fig.JC-1
Key No.4
See Fig.JC-1
Key No.4
See Fig.JB-4
Key No.301
233
205
233
204
209
213
221
218
211
224
225
226
233
233
233
201
222
219
212
227
216
216
208
206
227
203
233
233
233
233
233
202
209
221
213
218
211
224
225
226
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
143
JE-3
201 630 109 0948 BRACKET 1 812JE-010-201
202 630 110 7950 BRACKET 1 812JE-010-202
203 630 110 7967 BRACKET 1 812JE-010-203
204 630 109 0955 PLATE 1 812JE-010-204
205 630 119 7500 PLATE 1 812JE-010-205
206 630 112 7224 MECH PARTS(GUIDE CABLE) 1 812JE-010-206
208 630 076 8916 PIPE FITTINGS 4 812JE-010-208
209 630 112 7231 MECH PARTS(GUIDE CABLE) 2 812JE-010-209
211 630 000 7626 BOLT,HEX-SCT 2 812JE-010-211
212 630 000 7763 BOLT,HEX-SCT 4 812JE-010-212
213 411 050 5004 SCR TRS 3X6 4 812JE-010-213
216 411 140 8007 SCR TRS 5X6 8 812JE-010-216
218 411 141 2905 WASHER SPR 4 2 812JE-010-218
219 411 141 6705 WASHER SPR 5 4 812JE-010-219
221 411 141 4008 WASHER V 4X9X0.8 2 812JE-010-221
222 411 141 4107 WASHER V 5X10X1 4 812JE-010-222
224 630 000 7503 BOLT,HEX-SCT 4 812JE-010-224
225 411 141 2806 WASHER SPR 3 4 812JE-010-225
226 411 141 3902 WASHER V 3X7X0.5 4 812JE-010-226
227 630 079 8432 AIR LINE EQPT 8 812JE-010-227
233 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 12 812JE-010-233
