MODEL TCM-X300 0306-001 182 ࠞࡓ㧟ゲㇱ CAM SHAFT 3 AXIS SECTION Fig. KC-5 ࡁ࠭࡞ಾᦧ߃ࠬ࠻࠶ࡄ Nozzle Changer Stopper See Fig.KC-1 Key No.1 406 407 408 409 410 414 405 404 402 41 1 401 412 41 1 403 402 415 413 418 419 417 414 415 413 4…
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
181
KC-4
301 630 093 2539 BASE 1 812KC-010-301
302 630 000 7909 BOLT,HEX-SCT 4 812KC-010-302
303 411 141 3001 WASHER SPR 6 4 812KC-010-303
304 411 141 6002 WASHER F 6X11.5X1.6 4 812KC-010-304
305 630 093 2546 BRACKET 2 812KC-010-305
306 630 069 0545 SENSOR,PHOTO 2 BPH87,BPH88,EE-SX674
812KC-010-306
307 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 EE-1001 812KC-010-307
308 630 000 7626 BOLT,HEX-SCT 4 812KC-010-308
309 411 141 2905 WASHER SPR 4 4 812KC-010-309
310 411 141 5906 WASHER F 4X8X0.8 4 812KC-010-310
311 411 040 7803 SCR PAN 3X12 4 812KC-010-311
312 411 141 2806 WASHER SPR 3 4 812KC-010-312
313 411 141 5807 WASHER F 3X6X0.5 4 812KC-010-313
314 630 093 8067 ROD 2 812KC-010-314
315 630 000 9743 NUT,HEX 4 812KC-010-315
316 630 050 0738 ROD 2 812KC-010-316
317 411 141 0703 NUT HEX 6 2 812KC-010-317
318 630 048 9330 ROD END 2 BRM6 812KC-010-318
320 630 000 8029 BOLT,HEX-SCT 2 812KC-010-320
321 411 141 3100 WASHER SPR 8 2 812KC-010-321
322 630 001 0237 WASHER 2 812KC-010-322
323 630 088 4708 PLATE 1 812KC-010-323
325 630 001 1067 ROD END 2 BRF6L 812KC-010-325
326 630 008 2395 BOLT,HEX 2 812KC-010-326
327 411 141 0703 NUT HEX 6 2 812KC-010-327
328 411 141 3001 WASHER SPR 6 2 812KC-010-328
329 411 141 6002 WASHER F 6X11.5X1.6 2 812KC-010-329
330 630 085 9621 CAM FOLLOWER 2 CFES6BUU 812KC-010-330
331 411 141 0703 NUT HEX 6 2 812KC-010-331
332 411 141 3001 WASHER SPR 6 2 812KC-010-332
333 411 141 6002 WASHER F 6X11.5X1.6 2 812KC-010-333
MODEL TCM-X300
0306-001
182

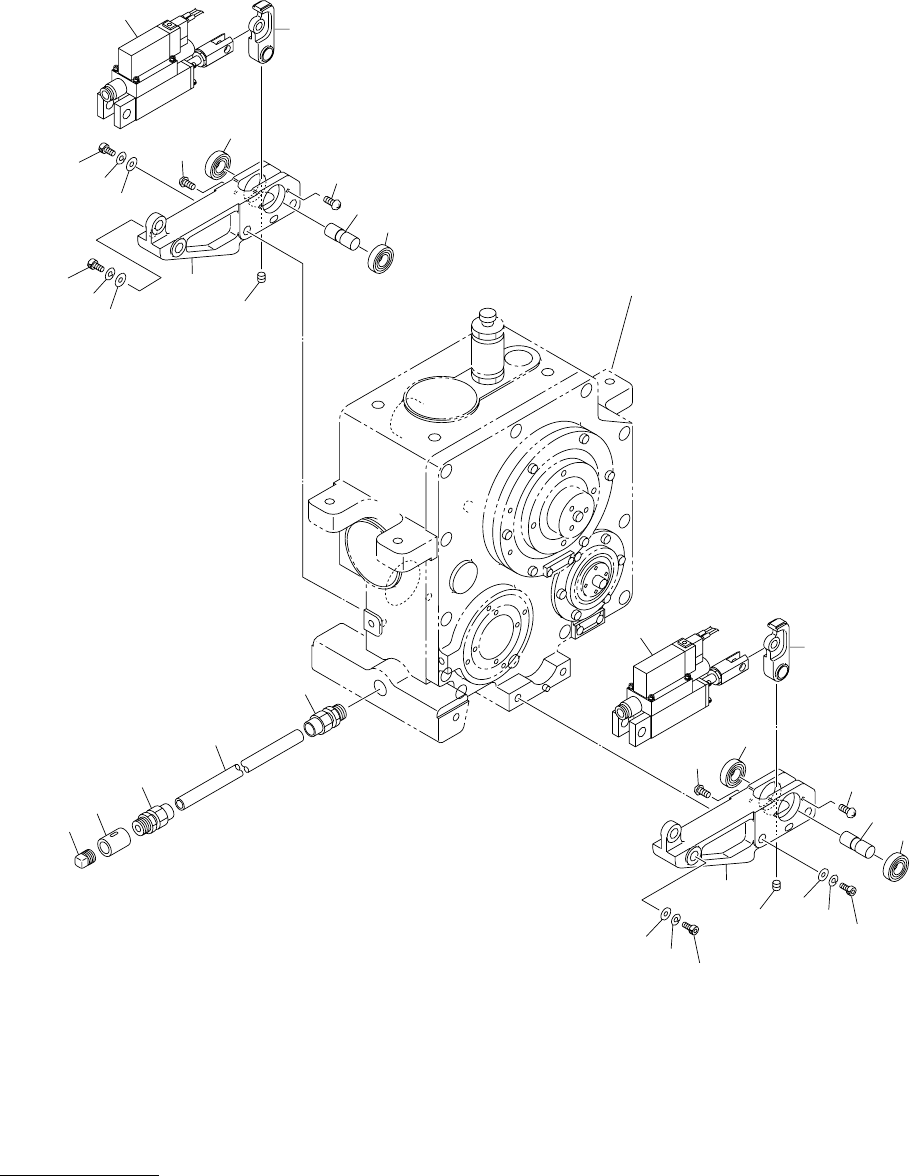

ࠞࡓ㧟ゲㇱ CAM SHAFT 3 AXIS SECTION
Fig. KC-5 ࡁ࠭࡞ಾᦧ߃ࠬ࠻࠶ࡄ Nozzle Changer Stopper
See Fig.KC-1
Key No.1
406
407
408
409
410
414
405
404
402
411
401
412
411
403
402
415
413
418
419
417
414
415
413
418
419
417
416
404
402
411
401
412
411
403
402
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
183
KC-5
401 630 119 3427 BASE 2 812KC-010-401
402 630 001 1289 BEARING,RADIAL 4 6001ZZ 812KC-010-402
403 630 116 3130 SHAFT 2 812KC-010-403
404 630 114 9882 LEVER 2 812KC-010-404
405 630 100 7205 CYLINDER 1 YSV17 812KC-010-405
406 630 004 0845 PIPE FITTINGS 1 812KC-010-406
407 630 004 1279 TUBE 1 812KC-010-407
408 630 003 7159 PIPE FITTINGS 1 812KC-010-408
409 630 003 7937 PIPE FITTINGS 1 812KC-010-409
410 630 003 8125 PIPE FITTINGS 1 812KC-010-410
411 411 051 1708 SCR TRS 4X6 8 812KC-010-411
412 630 000 8944 SET SCREW 2 812KC-010-412
413 630 000 8067 BOLT,HEX-SCT 4 812KC-010-413
414 411 141 3100 WASHER SPR 8 4 812KC-010-414
415 411 141 6101 WASHER F 8X15.5X1.6 4 812KC-010-415
416 630 100 7212 CYLINDER 1 YSV18 812KC-010-416
417 630 119 3571 BOLT 2 812KC-010-417
418 411 141 3209 WASHER SPR 10 2 812KC-010-418
419 411 141 6309 WASHER F 10X18X2 2 812KC-010-419
