MODEL TCM-X300 0306-001 198 ࠞࡃㇱ COVER SECTION Fig. MA-1 ᧄࠞࡃ Body Cover 23 11 11 11 11 11 21 20 19 18 24 11 11 10 11 11 30 11 11 11 31 32 33 7 11 11 9 11 24 11 26 15 11 17 16 25 38 43 42 41 39 40 44
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
197
LB-2
106 630 116 9606 PIPE FITTINGS 2 812LB-010-106
107 630 118 4074 TUBE 1 812LB-010-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 812LB-010-109
110 411 141 4107 WASHER V 5X10X1 3 812LB-010-110
111 411 141 6705 WASHER SPR 5 3 812LB-010-111
112 630 000 7763 BOLT,HEX-SCT 3 812LB-010-112
121 630 110 5260 BRACKET 1 812LB-010-121
122 630 110 5277 BRACKET 1 812LB-010-122
123 411 141 4107 WASHER V 5X10X1 4 812LB-010-123
124 411 141 6705 WASHER SPR 5 4 812LB-010-124
125 630 000 7763 BOLT,HEX-SCT 4 812LB-010-125
126 630 001 0220 WASHER 4 812LB-010-126
127 411 141 6705 WASHER SPR 5 4 812LB-010-127
128 630 000 7770 BOLT,HEX-SCT 4 812LB-010-128
130 630 110 5291 COVER 1 812LB-010-130
131 411 140 8007 SCR TRS 5X6 8 812LB-010-131
132 630 087 1203 ACCESSORY,WIRING 1 812LB-010-132
MODEL TCM-X300
0306-001
198

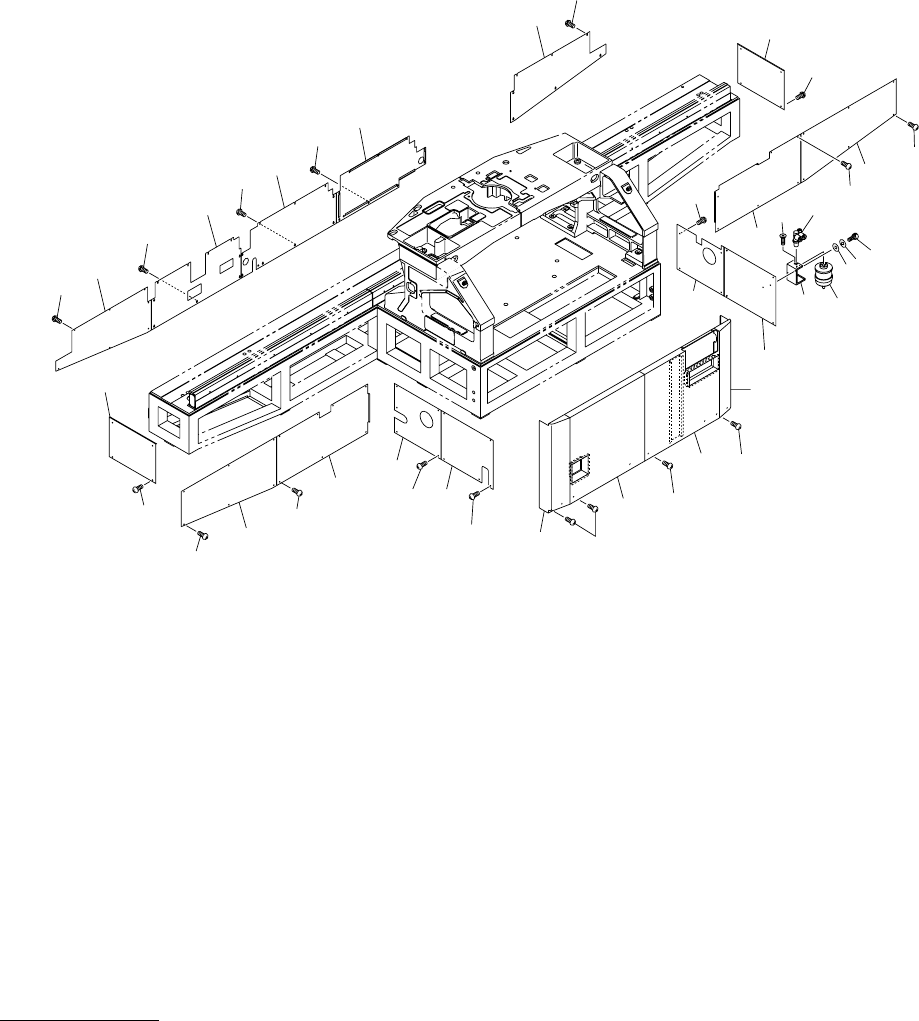

ࠞࡃㇱ COVER SECTION
Fig. MA-1 ᧄࠞࡃ Body Cover
23
11
11
11
11
11
21
20
19
18
24
11
11
10
11
11
30
11
11
11
31
32
33
7
11
11
9
11
24
11
26
15
11
17
16
25
38
43
42
41
39
40
44
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
199
MA-1
7 630 109 3529 COVER(RFR) 1 812MA-010-007
9 630 119 9412 COVER(RFR) 1 812MA-010-009
10 630 116 9880 COVER(FSL) 1 812MA-010-010
11 411 113 9000 SCR TRS 5X8 101 812MA-010-011
15 630 121 3897 COVER(FSL) 1 812MA-010-015
16 630 109 3543 COVER(RFL) 1 812MA-010-016
17 630 120 0279 COVER(RFL) 1 812MA-010-017
18 630 097 2924 COVER(RBL) 1 812MA-010-018
19 630 120 4741 COVER(RBL) 1 812MA-010-019
20 630 117 0855 COVER(RBC) 1 812MA-010-020
21 630 122 2189 COVER(RBC) 1 812MA-010-021
23 630 119 5216 COVER(RBR) 1 812MA-010-023
24 630 120 5755 COVER(RS) 2 812MA-010-024
25 630 123 2010 COVER(FSR) 1 812MA-010-025
26 630 099 6579 COVER 1 812MA-010-026
30 630 095 1127 COVER 1 812MA-010-030
31 630 097 2139 COVER(ML) 1 812MA-010-031
32 630 098 1223 COVER(MR) 1 812MA-010-032
33 630 097 7790 COVER 1 812MA-010-033
38 630 122 4671 PIPE FITTINGS 1 812MA-010-038
39 630 123 2225 AIR CLEAN EQPT 1 812MA-010-039
40 630 123 2164 BRACKET 1 812MA-010-040
41 411 141 4107 WASHER V 5X10X1 2 812MA-010-041
42 411 141 6705 WASHER SPR 5 2 812MA-010-042
43 630 000 7756 BOLT,HEX-SCT 2 812MA-010-043
44 411 034 7208 SCR FLT 3X8 3 812MA-010-044
