P-187-001 - 第294页
MODEL TCM-X300 0306-001 292 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers 354 358 See Fig.RL-5 Key No.453 ASMD2 (F1) ASMD3 (F2) ASMD4 (F3) ASMD5 (F4) 353 357 352 356 351 355
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
291
SB-1
51 630 086 8722 CORD 1 XCN7- 812SB-010-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 812SB-010-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 812SB-010-053
54 630 049 2354 CORD 1 XCN3- 812SB-010-054
55 630 085 3414 CORD 1 XCN28/29- 812SB-010-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 812SB-010-056
57 630 117 1104 CORD(SIO 2M) 1 XCN26- 812SB-010-057
58 630 111 4859 CORD(MON1.5M) 1 XCN32- 812SB-010-058
59 630 117 6109 CORD(LIGHT 500MM) 3 CN1-,CN2-,CN3-, 812SB-010-059
60 630 117 1159 CORD(REC-PIO 2M) 1 XCN25- 812SB-010-060
63 630 052 5335 CORD 1 812SB-010-063
67 630 108 1861 CORD 1 812SB-010-067
MODEL TCM-X300
0306-001
292

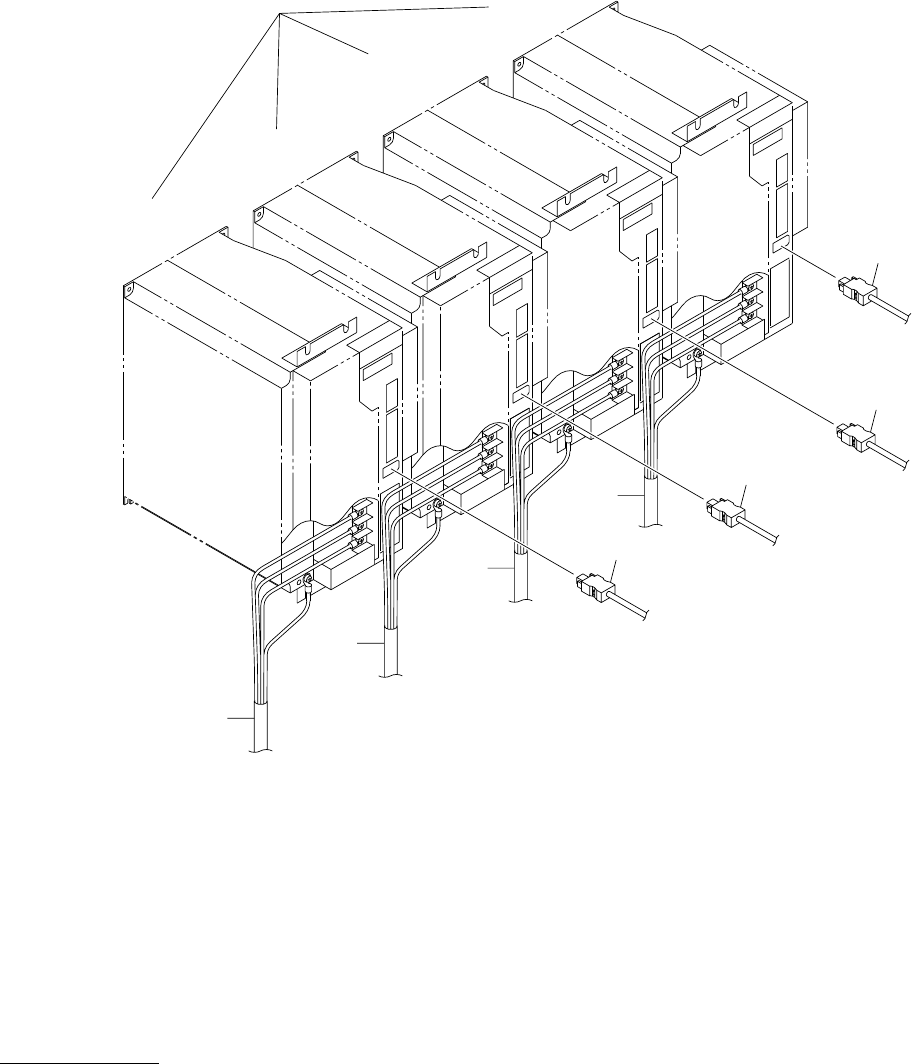

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-4 F ゲ࠼ࠗࡃ F Axis Drivers
354
358
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
353
357
352
356
351
355
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
293
SB-4
351 630 092 4626 ASSY,CORD(X200MOT F1) 1 -XCN105 812SB-010-351
352 630 092 4633 ASSY,CORD(X200MOT F2) 1 -XCN109 812SB-010-352
353 630 092 4640 ASSY,CORD(X200MOT F3) 1 -XCN113 812SB-010-353
354 630 092 4657 ASSY,CORD(X200MOT F4) 1 -XCN117 812SB-010-354
355 630 104 9595 CORD (LINEAR 3.9M) 1 XCN106-XCN107 812SB-010-355
356 630 104 9601 CORD (LINEAR 3.4M) 1 XCN110-XCN111 812SB-010-356
357 630 104 9618 CORD (LINEAR 4.1M) 1 XCN114-XCN115 812SB-010-357
358 630 104 9601 CORD (LINEAR 3.4M) 1 XCN118-XCN119 812SB-010-358
