MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 295 SB-6 55 1 630 086 8173 CORD 2 812SB-010-551 55 2 630 086 8180 CORD 1 812SB-010-552 55 3 630 091 5808 COR D( C3 2- MZ -PG ) 2 812SB-010-553 55 …
MODEL TCM-X300
0306-001
294

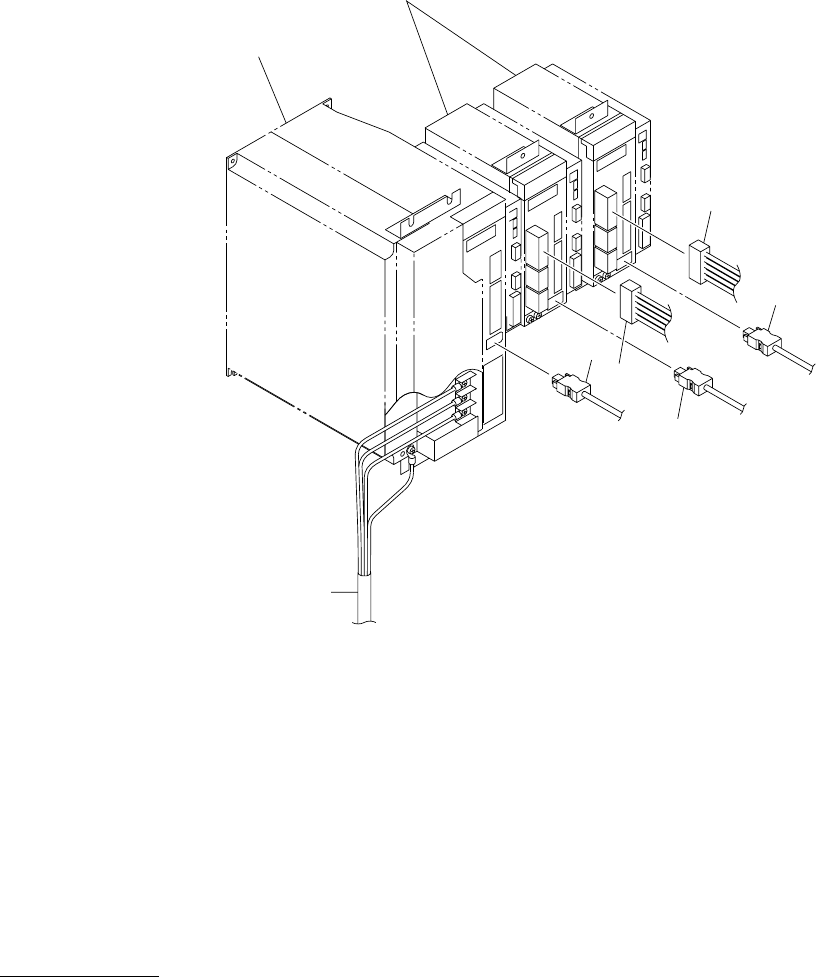

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-6
H ゲޔCZ ゲޔMZ ゲ࠼ࠗࡃ
H Axis, CZ Axis, MZ Axis Driver
553
551
553
551
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
See Fig.RM-1
Key No.54
ASMD1(H)
554
552
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
295
SB-6
551 630 086 8173 CORD 2 812SB-010-551
552 630 086 8180 CORD 1 812SB-010-552
553 630 091 5808 CORD(C32-MZ-PG) 2 812SB-010-553
554 630 092 3575 ASSY,CORD(X200MOT H) 1 812SB-010-554
MODEL TCM-X300
0306-001
296
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
752
See Fig.RL-2
Key No.155
See Fig.RL-2
Key No.154
See Fig.RL-2
Key No.153
ASMD6(X)
ASMD7(Y)
ASMD8(XYTR)
751
753
759
758
See Fig.RL-5
Key No.453
ASMD2
(F1)
ASMD3
(F2)
ASMD4
(F3)
ASMD5
(F4)
757
756
760
See Fig.RM-1
Key No.54
ASMD1(H)
753
774
See Fig.RH-1
Key No.53
See Fig.RH-1
Key No.55
See Fig.RH-1
Key No.61
770
CPU1 PCB
SIO PCB
JAMMC-EB005 PCB
See Fig.RH-1
Key No.52
769
768
760
759
See Fig.RM-1
Key No.55
ASMD10
(MZ)
ASMD9
(CZ)
755
754
T1 PCB
See Fig.RG-1
Key No.63
767
VIEW "A"
A
