MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 35 D-1 1 630 089 0419 P L A T E 1 812D--010-001 2 630 003 6787 ME CH P AR TS (R U BBER DAMPER) 4 81 2 D -- 010-002 3 41 1 141 4305 WA S H ER V 6 X…

100%1 / 306
MODEL TCM-X300
0306-001
34
ⓨ࿶೙ᓮㇱ PNEUMATIC SECTION

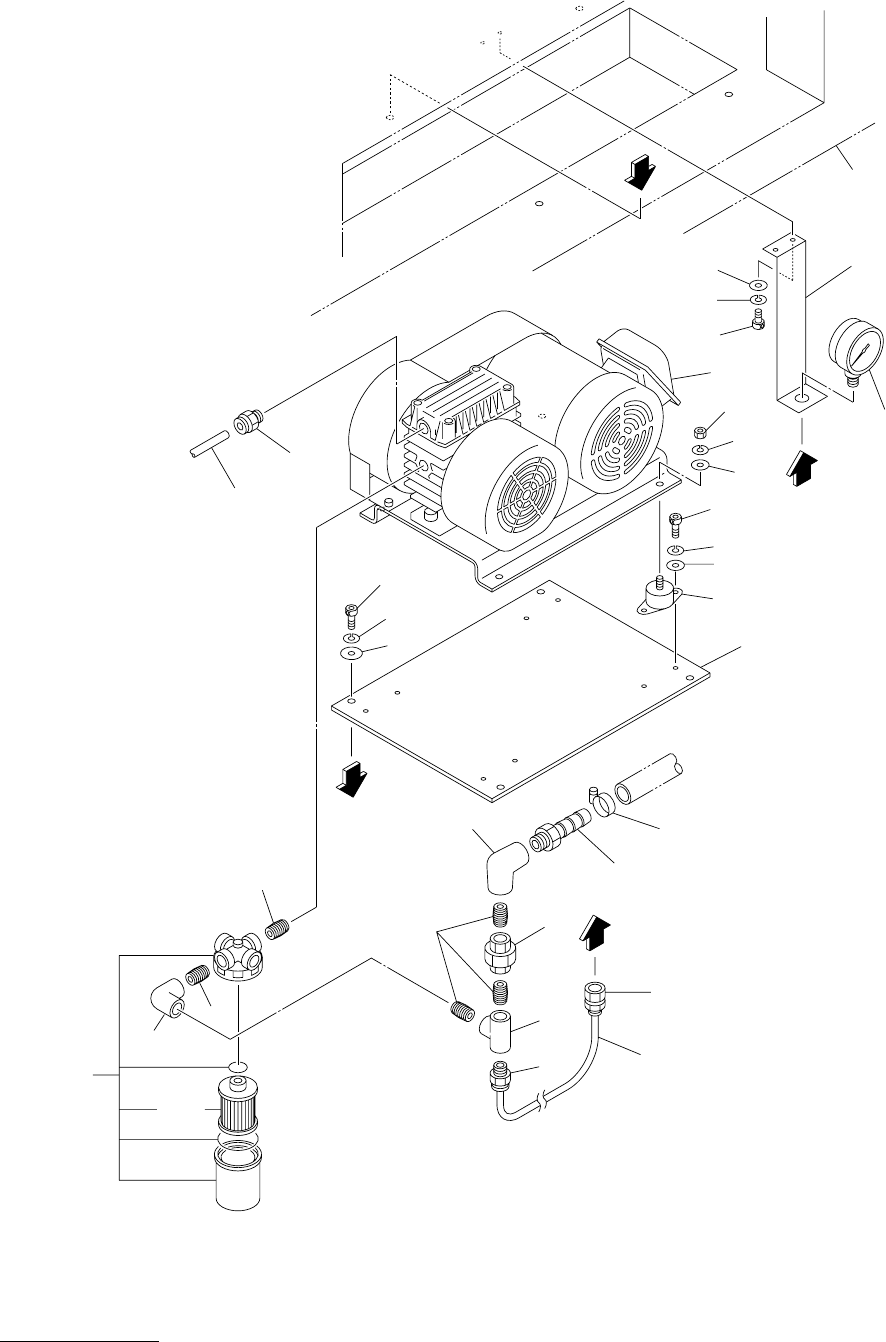

Fig. D-1 ⌀ⓨࡐࡦࡊ Vacuum Pump
1
18
15
35
17
16
9-20
9
A
B
9-10
9-11
21
21
21
20
22
25
2
8
7
6
5
4
3
11
12
13
14
10
34
See Fig.L-1
Key No.9
23
24
29
B
A
See Fig.B-1
Key No.45
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
35
D-1
1 630 089 0419 PLATE 1 812D--010-001
2 630 003 6787 MECH PARTS(RUBBER DAMPER) 4 812D--010-002
3 411 141 4305 WASHER V 6X12.5X1.6 8 812D--010-003
4 411 141 3001 WASHER SPR 6 8 812D--010-004
5 630 000 7862 BOLT,HEX-SCT 8 812D--010-005
6 630 001 0220 WASHER 4 812D--010-006
7 411 141 6705 WASHER SPR 5 4 812D--010-007
8 630 000 7770 BOLT,HEX-SCT 4 812D--010-008
9 630 055 2195 VACUUM PUMP 1 M1,#3-040437-1 812D--010-009
9 -10 630 031 8593 AIR LINE EQPT(FILTER) 1 #3-037940
9 -11 630 012 1230 AIR LINE EQPT(FLT ELEM) 1 #XB401379743 4-410A302-4
9 -20 630 055 2171 VACUUM PARTS 1 #4-400A302-1
10 630 055 3062 PIPE FITTINGS 1 812D--010-010
11 630 086 8821 BRACKET 1 812D--010-011
12 411 141 4107 WASHER V 5X10X1 2 812D--010-012
13 411 141 6705 WASHER SPR 5 2 812D--010-013
14 630 000 7749 BOLT,HEX-SCT 2 812D--010-014
15 630 003 7074 PIPE FITTINGS 1 812D--010-015
16 411 141 4503 WASHER V 8X17X1.6 4 812D--010-016
17 411 141 3100 WASHER SPR 8 4 812D--010-017
18 411 141 0901 NUT HEX 8 4 812D--010-018
20 630 003 7845 PIPE FITTINGS 1 812D--010-020
21 630 003 8187 PIPE FITTINGS 5 812D--010-021
22 630 003 8088 PIPE FITTINGS 1 812D--010-022
23 630 003 8279 PIPE FITTINGS 1 812D--010-023
24 630 009 3520 PIPE FITTINGS 1 812D--010-024
25 630 003 7067 PIPE FITTINGS 1 812D--010-025
29 630 004 1026 PIPE FITTINGS 1 812D--010-029
34 630 116 9958 TUBE 1 812D--010-034
35 630 119 6848 TUBE 1 812D--010-035
MODEL TCM-X300
0306-001
36
ⓨ࿶೙ᓮㇱ PNEUMATIC SECTION

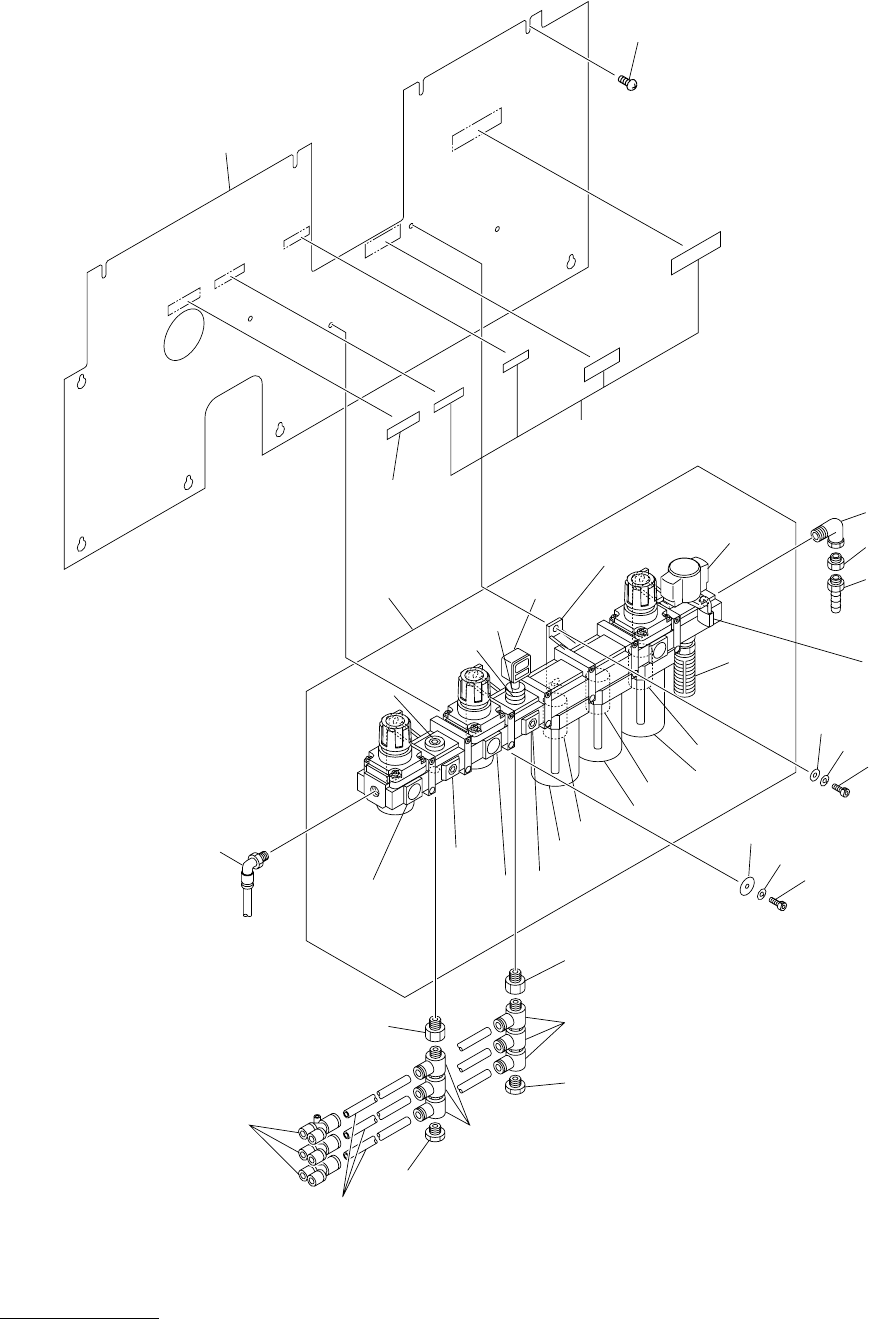

Fig. D-2 ࠛࠕࡐ࡯࠻㈩▤ Air Port Piping
103
103-05
103-11
103-41
103-40
103-31
103-30
103-21
103-20
103-07
103-10
103-09
103-14
103-06
103-08
103-13
103-12
103-02
111
112
113
102
104
105
114
106
123
112
113
107
107
108
108
117
109
109
124
115
116
121
122
