P-0207-001 - 第131页
MODEL TCM-X100 0107-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 129 JD-2 10 1 630 088 2285 P ULLEY 4 76 5 J D - 010-101 10 2 630 093 5745 P ULLEY 2 76 5 J D - 010-102 103 630 076 2792 ROD 4 765JD-010-103 104 63…
MODEL TCM-X100
0212-002
128
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

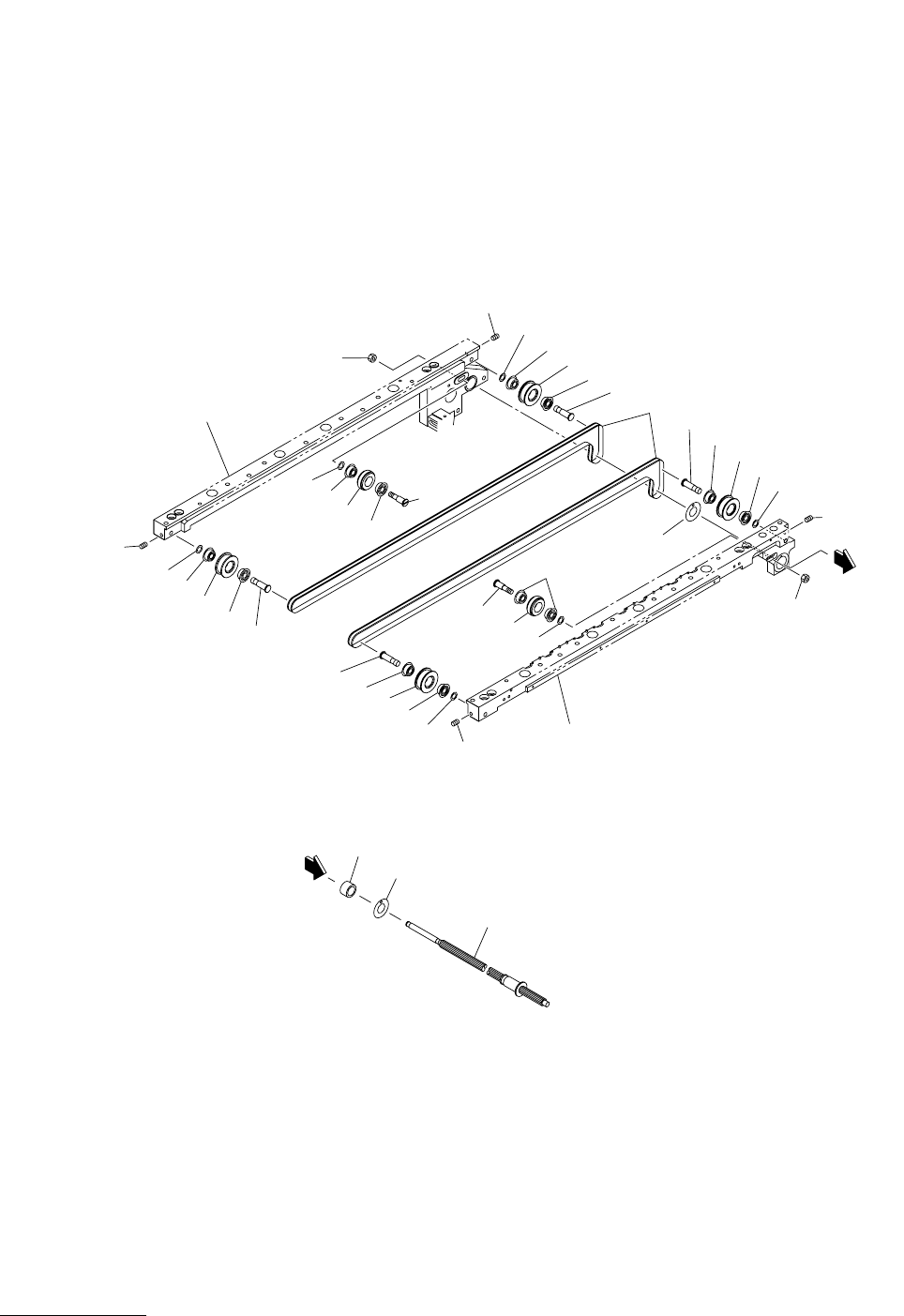

Fig. JD-2 XY ࠪࡘ࠻ࡌ࡞࠻ XY Chute Belt
Fig.JD-2
TCM-X100-002
109
108
105
107
101
107
103
103
107
101
107
105
103
107
101
107
105
112
105
112
107
101
107
103
112
106
112
See Fig.JD-1
Key No.1
See Fig.JD-1
Key No.33
See Fig.JD-4
Key No.306
110
110
113
107
104
105
107
102
107
104
102
105
113
A
A
MODEL TCM-X100
0107-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
JD-2
101 630 088 2285 PULLEY 4 765JD-010-101
102 630 093 5745 PULLEY 2 765JD-010-102
103 630 076 2792 ROD 4 765JD-010-103
104 630 076 2808 ROD 2 765JD-010-104
105 630 076 2815 COLLAR 6 765JD-010-105
106 630 096 7234 BELT,FLAT 2 765JD-010-106
107 630 001 1586 BEARING,RADIAL 12 765JD-010-107
108 630 076 8848 BEARING,RADIAL 1 765JD-010-108
109 630 097 9596 SHAFT,LINEAR 1 765JD-010-109
110 630 051 6166 MECH PARTS(DRYMET WASHER) 2 765JD-010-110
112 630 008 2296 SET SCREW 4 765JD-010-112
113 411 141 0307 NUT HEX 4 2 765JD-010-113
MODEL TCM-X100
0107-001
130
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

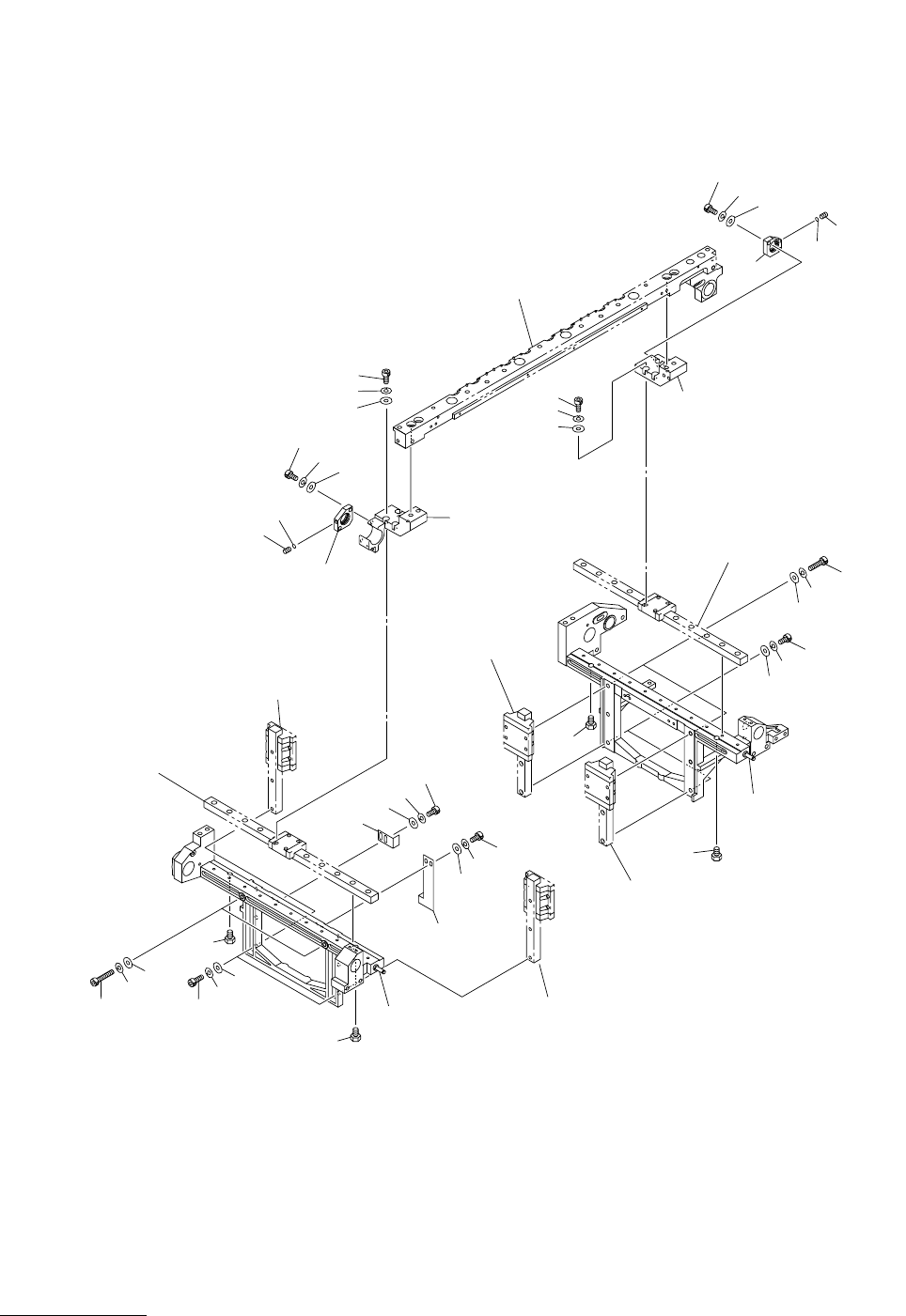

Fig. JD-4 XY ࠪࡘ࠻ࡌࠬ XY Chute Base
Fig.JD-4
TCM-X100AL
310
313
315
304
303
310
313
315
305
317
314
318
321
301
315
313
309
302
308
307
306
See Fig.JC-1
Key No.10
See Fig.JD-7
Key No.622
See Fig.JD-1
Key No.33
See Fig.JC-1
Key No.10
See Fig.JC-1
Key No.9
See Fig.JC-1
Key No.9
315
313
309
308
312
321
305
312
308
324
314
322
322
314
324
323
314
324
317
314
318
324
314
323
See Fig.JD-7
Key No.622
308
