MODEL TCM-X100 0107-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 135 JD-6 501 630 096 7951 BR AC KE T 1 765JD-010-501 50 2 630 059 6762 P ULLEY ,TIMING 1 7 6 5 J D - 010-502 503 630 008 1053 SE T SC RE W 2 765JD…
MODEL TCM-X100
0212-002
134
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

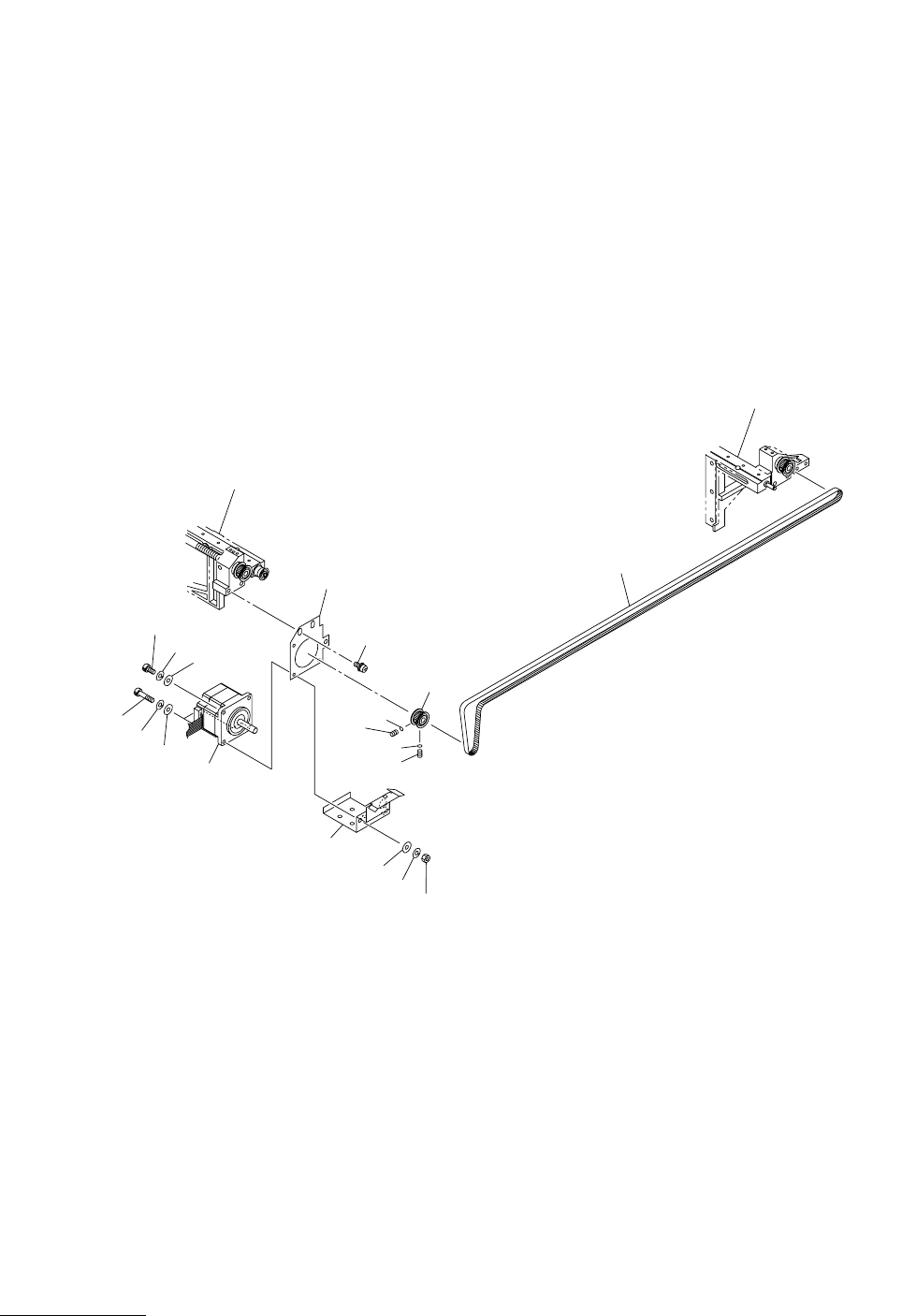

Fig. JD-6 XY ࠪࡘ࠻㚟േㇱ XY Chute Width Control Driver
507
504
509
514
506
509
514
516
505
514
509
513
515
503
515
503
501
See Fig.JD-4
Key No.306
See Fig.JD-4
Key No.307
502
508
Fig.JD-6
TCM-X100-002
MODEL TCM-X100
0107-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
135
JD-6
501 630 096 7951 BRACKET 1 765JD-010-501
502 630 059 6762 PULLEY,TIMING 1 765JD-010-502
503 630 008 1053 SET SCREW 2 765JD-010-503
504 630 092 9805 ASSY,MOTOR,STEPPING 1 MPM14(CHW),103H6701-0440
765JD-010-504
505 630 097 1446 BELT,TIMING 1 765JD-010-505
506 630 000 7626 BOLT,HEX-SCT 1 765JD-010-506
507 630 000 7664 BOLT,HEX-SCT 2 765JD-010-507
508 630 000 8456 BOLT,HEX-SCT 2 765JD-010-508
509 411 141 2905 WASHER SPR 4 5 765JD-010-509
513 411 141 0307 NUT HEX 4 2 765JD-010-513
514 411 141 5906 WASHER F 4X8X0.8 5 765JD-010-514
515 630 061 1434 SHEET 2 765JD-010-515
516 630 066 1064 PLATE 1 765JD-010-516
MODEL TCM-X100
0107-001
136
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

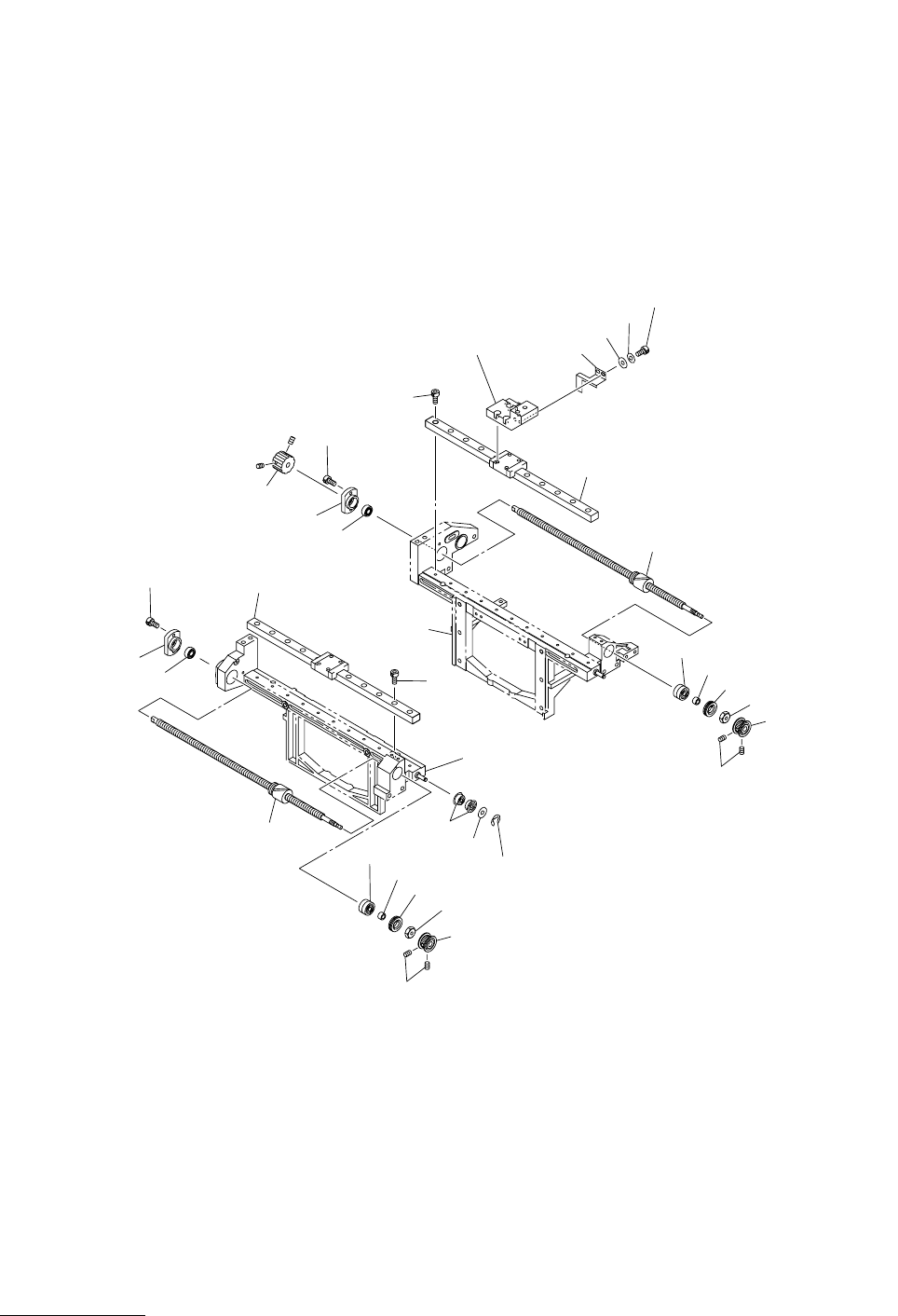

Fig. JD-7 XY ࠪࡘ࠻ᄌᦝㇱ XY Chute Width Changer
622
625
See Fig.JD-4
Key No.306
See Fig.JD-4
Key No.304
See Fig.JD-4
Key No.307
614
636
637
617
616
611
612
623
622
609
624
626
625
635
632
618
613
633
630
625
637
617
616
611
612
623
615
Fig.JD-7
TCM-X100AL
609
624
626
