P-0207-001 - 第139页
MODEL TCM-X100 0107-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 137 JD-7 60 9 630 093 2560 HOLDER 2 765JD-010-609 61 1 630 076 3072 RIN G 2 765JD-01 0-61 1 612 630 076 3089 CO LL AR 2 765JD-010-612 613 630 093 …
MODEL TCM-X100
0107-001
136
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION

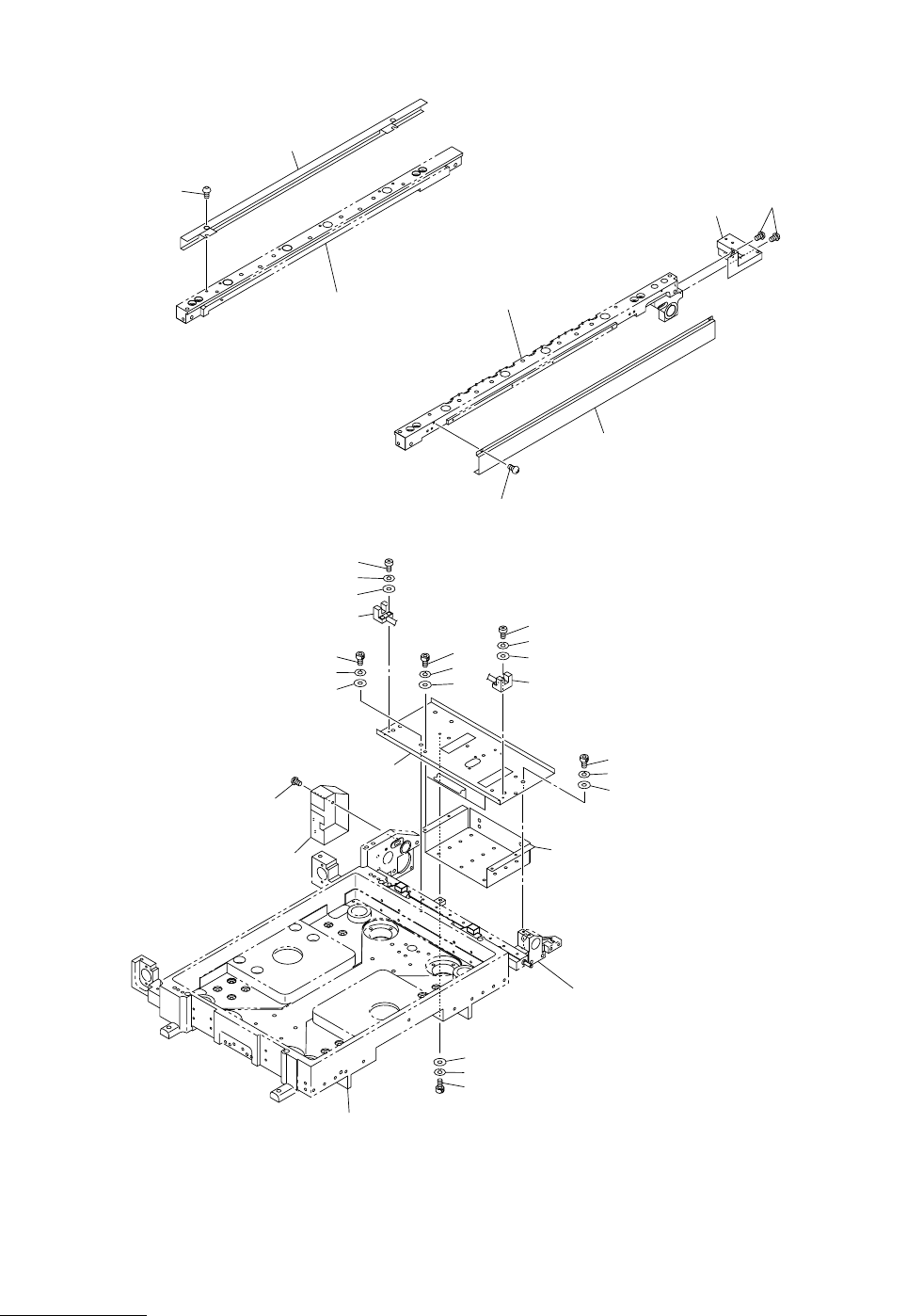

Fig. JD-7 XY ࠪࡘ࠻ᄌᦝㇱ XY Chute Width Changer
622
625
See Fig.JD-4
Key No.306
See Fig.JD-4
Key No.304
See Fig.JD-4
Key No.307
614
636
637
617
616
611
612
623
622
609
624
626
625
635
632
618
613
633
630
625
637
617
616
611
612
623
615
Fig.JD-7
TCM-X100AL
609
624
626
MODEL TCM-X100
0107-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JD-7
609 630 093 2560 HOLDER 2 765JD-010-609
611 630 076 3072 RING 2 765JD-010-611
612 630 076 3089 COLLAR 2 765JD-010-612
613 630 093 9880 PLATE 1 765JD-010-613
614 630 059 6779 GRIP 1 765JD-010-614
615 630 096 6916 BALL SCREW 1 765JD-010-615
616 630 059 6809 NUT 2 765JD-010-616
617 630 059 6755 PULLEY,TIMING 2 765JD-010-617
618 630 093 7008 BEARING,RADIAL 2 765JD-010-618
622 630 096 6909 GUIDE,LINEAR 2 765JD-010-622
623 630 071 0359 BEARING,RADIAL 2 765JD-010-623
624 630 007 1719 BEARING,RADIAL 2 765JD-010-624
625 630 000 7503 BOLT,HEX-SCT 24 765JD-010-625
626 630 000 7510 BOLT,HEX-SCT 4 765JD-010-626
630 411 141 2806 WASHER SPR 3 2 765JD-010-630
632 411 141 5906 WASHER F 4X8X0.8 1 765JD-010-632
633 411 141 3902 WASHER V 3X7X0.5 2 765JD-010-633
635 411 001 0201 RING E 5 1 765JD-010-635
636 630 096 7203 BALL SCREW 1 765JD-010-636
637 630 094 3528 SET SCREW 4 765JD-010-637
MODEL TCM-X100
0212-002
138
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-1 XY ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors
2
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JC-1
Key No.4
See Fig.JD-4
Key No.306
Fig.JE-1
7
1
27
27
11
16
19
14
18
21
12
17
20
26
10
11
16
19
14
6
15
20
17
28
18
21
10
5
27
TCM-X100-002
