MODEL TCM-X100 0107-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 145 JE-4 30 2 630 003 7005 PI P E FITTINGS 1 765JE-010-302 30 3 630 080 1439 PI P E FITTINGS 1 765JE-010-303 30 4 630 008 3217 AI R LI N E E QP T …
MODEL TCM-X100
0107-001
144
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

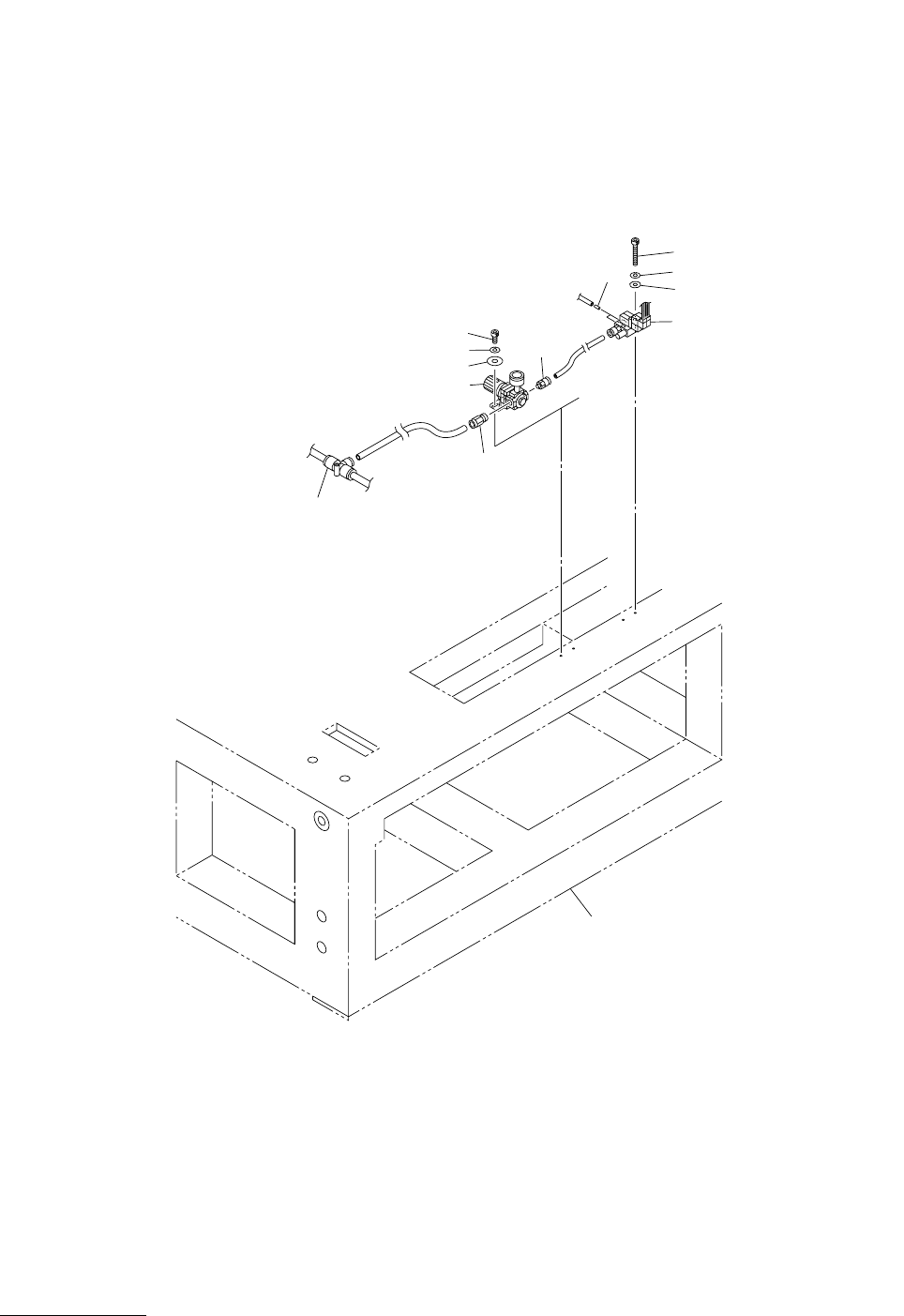

Fig. JE-4 Z ࠢࡦࡊ㈩▤ - 㧞 Z Clamp Piping-2
308
309
310
306
311
305
302
303
307
309
312
304
Fig.JE-4
TCM-X100AL
See Fig.L-1
Key No.9
MODEL TCM-X100
0107-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
145
JE-4
302 630 003 7005 PIPE FITTINGS 1 765JE-010-302
303 630 080 1439 PIPE FITTINGS 1 765JE-010-303
304 630 008 3217 AIR LINE EQPT 1 765JE-010-304
305 630 003 6985 PIPE FITTINGS 1 765JE-010-305
306 630 097 1453 VALVE 1 YSV54,YSV55 765JE-010-306
307 630 000 7633 BOLT,HEX-SCT 2 765JE-010-307
308 630 000 7688 BOLT,HEX-SCT 2 765JE-010-308
309 411 141 2905 WASHER SPR 4 4 765JE-010-309
310 411 141 4008 WASHER V 4X9X0.8 2 765JE-010-310
311 630 079 8432 AIR LINE EQPT 2 765JE-010-311
312 630 001 0213 WASHER 2 765JE-010-312
MODEL TCM-X100
0107-001
146
407
Fig.JE-5
TCM-X100AL
See Fig.JC-1
Key No.4
410
409
408
404
413
413
410
409
408
405
413
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

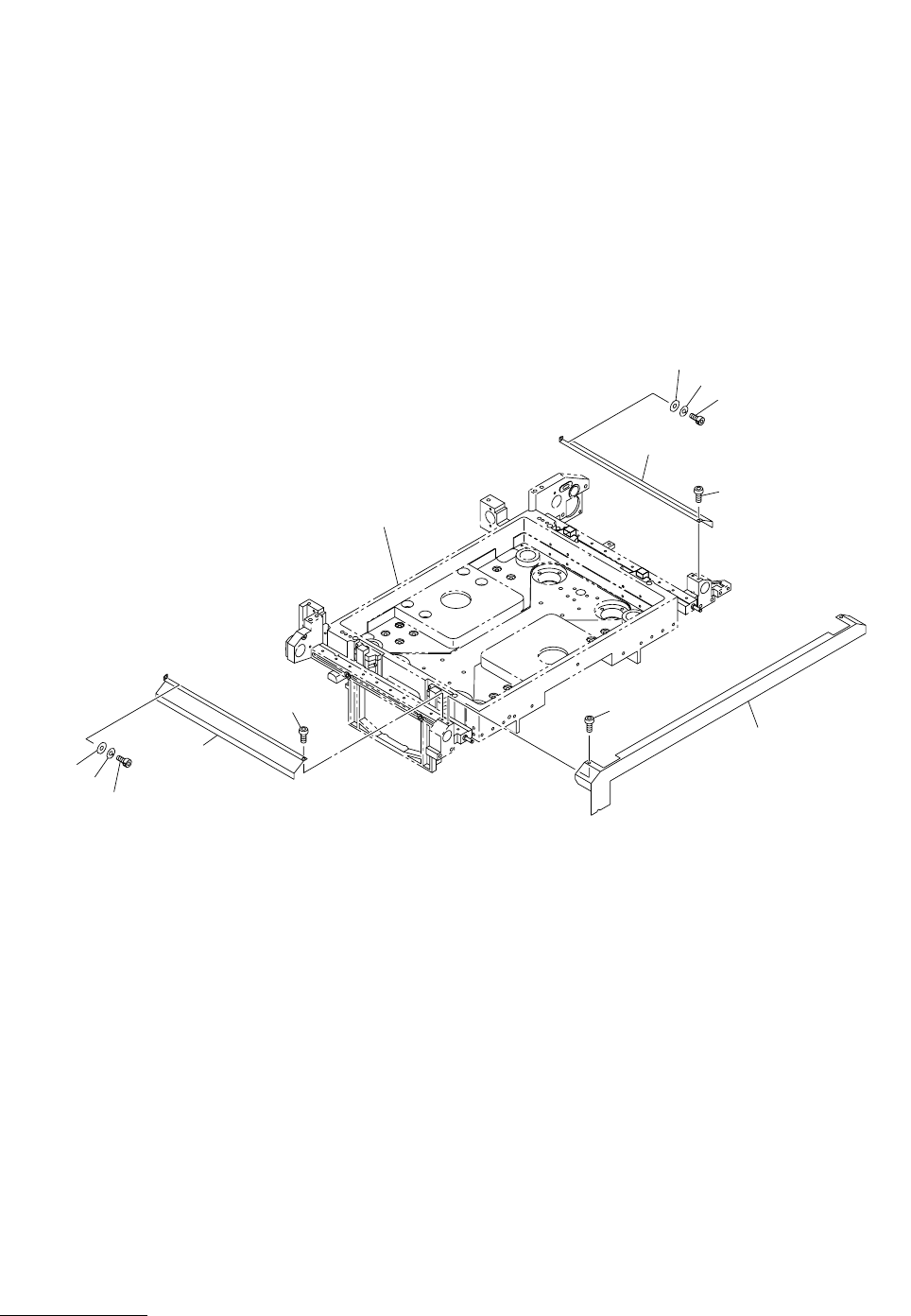

Fig. JE-5 XY ࠪࡘ࠻ࠞࡃ XY Chute Cover
