MODEL TCM-X100 0212-002 214 ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION Fig. MB-1 ᓟ㕙ࠞࡃ Rear Cover 49 45 39 18 44 19 44 36 44 35 44 32 21 46 21 21 46 29 21 13 42 41 40 12 42 41 40 Fig.MB-1 TCM-X100-002 38 28 20 38 49 45 …
MODEL TCM-X100
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
213
MA-9
801 411 113 9109 SCR TRS 5X10 4 765MA-010-801
802 630 103 2733 PLATE 1 765MA-010-802
803 630 098 7430 MECH PARTS(ROTARY DAMPER) 2 765MA-010-803
804 411 051 1708 SCR TRS 4X6 4 765MA-010-804
805 630 097 6861 MECH PARTS(PUSH LATCHES) 2 765MA-010-805
806 411 034 7208 SCR FLT 3X8 4 765MA-010-806
807 630 110 6601 ASSY,SWITCH,KEYBOARD 1 765MA-010-807
807 -01 630 105 3509 COVER(U-KEYBOARD) 1
807 -02 630 105 3516 COVER(B-KEYBOARD) 1
807 -03 630 101 1349 BUSH,LOCATE 2
807 -04 630 103 1835 HOLDER 1
807 -05 630 097 7165 HINGE(DUMPER HINGE) 1
807 -06 630 000 7749 BOLT,HEX-SCT 2
807 -07 411 141 6705 WASHER SPR 5 2
807 -08 411 141 4107 WASHER V 5X10X1 2
807 -09 630 013 8986 MECH PARTS(RUBBER CUSHION 2
807 -10 630 106 4802 SHEET 1
807 -11 411 040 6202 SCR PAN 3X10 4
807 -12 411 086 4408 WASHER SPR 3 8
807 -13 411 119 1909 WASHER V 3X7X0.5 8
807 -14 411 041 8908 SCR PAN 3X6 4
807 -15 630 106 6837 SWITCH,KEYBOARD 1 #KI-05
817 630 102 4912 SUPPORT(L) 1 765MA-010-817
818 630 102 4929 SUPPORT(R) 1 765MA-010-818
819 630 101 0885 COVER 2 765MA-010-819
820 630 100 9254 GUIDE,SLIDE 2 765MA-010-820
821 411 147 6808 SCR TRS 3X5 8 765MA-010-821
823 630 000 7626 BOLT,HEX-SCT 2 765MA-010-823
824 630 105 3554 CLAMP(BALL CATCHERS) 2 765MA-010-824
825 411 002 2600 SCR FLT 3X6 4 765MA-010-825
826 411 108 7103 SCR FLT 3X10 4 765MA-010-826
MODEL TCM-X100
0212-002
214

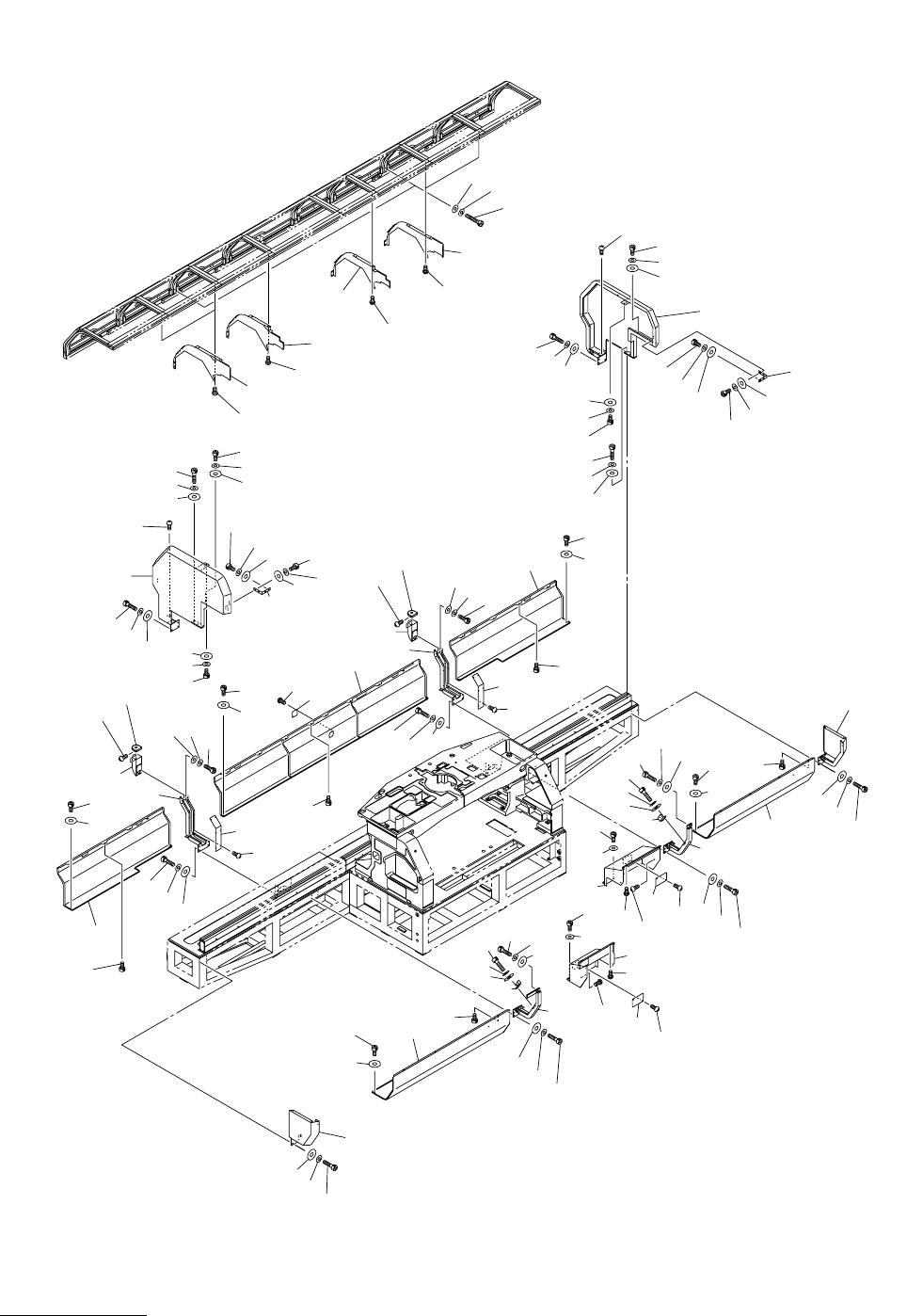

ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION
Fig. MB-1 ᓟ㕙ࠞࡃ Rear Cover
49
45
39
18
44
19
44
36
44
35
44
32
21
46
21
21
46
29
21
13
42
41
40
12
42
41
40
Fig.MB-1
TCM-X100-002
38
28
20
38
49
45
43
30
6
7
6
7
21
8
38
40
41
42
21
46
46
21
17
21
42
21
46
48
48
45
46
34
45
46
44
27
44
38
38
37
5
48
45
46
34
16
21
46
42
21
41
40
48
45
46
26
38
37
38
4
41
40
45
43
49
38
20
8
38
42
40
41
46
21
47
24
46
45
47
46
45
47
40
41
42
40
41
42
45
46
44
43
45
46
2
40
41
42
1
47
45
46
46
45
47
40
41
42
46
24
45
47
44
43
45
46
MODEL TCM-X100
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
215
MB-1
1 630 098 4392 FRAME 1 765MB-010-001
2 630 098 4408 FRAME 1 765MB-010-002
4 630 102 8675 FRAME 1 765MB-010-004
5 630 103 8186 FRAME 1 765MB-010-005
6 630 102 4998 FRAME 2 765MB-010-006
7 630 097 0944 FRAME 2 765MB-010-007
8 630 097 1019 COVER 2 765MB-010-008
12 630 098 5535 FRAME 1 765MB-010-012
13 630 098 5542 FRAME 1 765MB-010-013
16 630 103 8209 COVER 1 765MB-010-016
17 630 102 9252 COVER 1 765MB-010-017
18 630 101 3442 PLATE(R) 2 765MB-010-018
19 630 101 3459 PLATE(L) 2 765MB-010-019
20 630 102 5476 BRACKET(STOP) 2 765MB-010-020
21 630 000 8456 BOLT,HEX-SCT 37 765MB-010-021
24 630 097 3723 SUPPORT 2 765MB-010-024
26 630 103 8216 COVER 1 765MB-010-026
27 630 103 8537 COVER 1 765MB-010-027
28 630 095 9093 COVER 1 765MB-010-028
29 630 097 7455 COVER(R) 1 765MB-010-029
30 630 097 7172 COVER 1 765MB-010-030
32 630 097 7462 COVER(L) 1 765MB-010-032
34 630 095 0694 BRACKET 2 765MB-010-034
35 630 101 0106 PLATE(L) 1 765MB-010-035
36 630 105 4391 PLATE(R) 1 765MB-010-036
37 630 103 8544 COVER 2 765MB-010-037
38 411 140 8007 SCR TRS 5X6 26 765MB-010-038
39 630 000 7794 BOLT,HEX-SCT 4 765MB-010-039
40 630 000 7893 BOLT,HEX-SCT 32 765MB-010-040
41 411 141 3001 WASHER SPR 6 32 765MB-010-041
42 630 001 0237 WASHER 32 765MB-010-042
43 630 000 7756 BOLT,HEX-SCT 10 765MB-010-043
44 411 113 9109 SCR TRS 5X10 42 765MB-010-044
45 411 141 6705 WASHER SPR 5 34 765MB-010-045
46 630 001 0220 WASHER 48 765MB-010-046
47 630 000 7763 BOLT,HEX-SCT 12 765MB-010-047
48 630 000 7770 BOLT,HEX-SCT 12 765MB-010-048
49 411 141 4107 WASHER V 5X10X1 12 765MB-010-049
