MODEL TCM-X100 0107-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 249 RE-2 15 1 630 083 5496 FUSE HOLDER 1 0 76 5RE -01 0-1 51 15 2 630 059 6632 AC C ESSORY ,WIRING 1 7 6 5 R E - 0 1 0 - 1 5 2 15 3 630 083 5601 A…
MODEL TCM-X100
0212-002
248
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

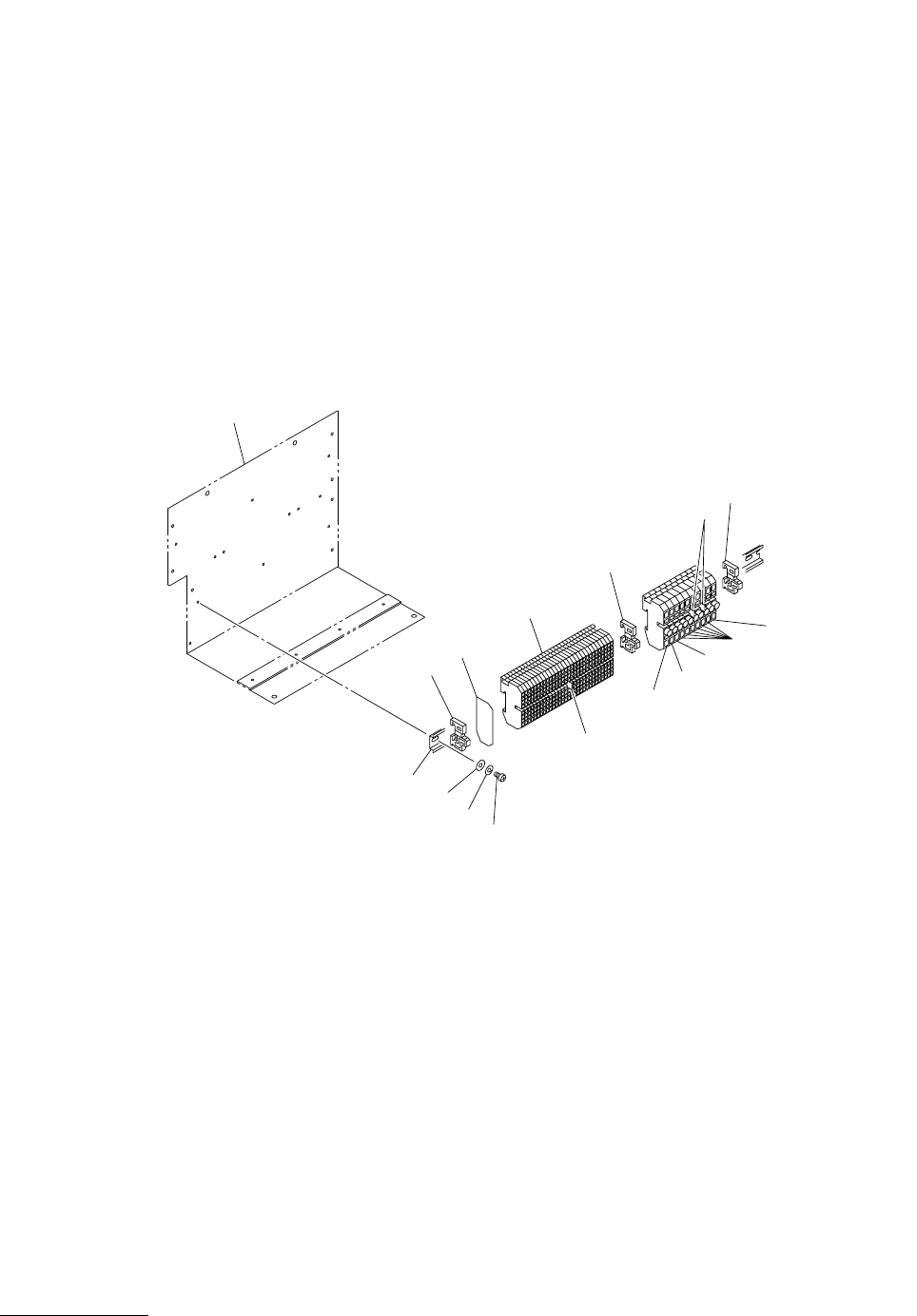

Fig. RE-2 100V 㔚Ḯ㧞 100V Power Supply 2
166
158
155
See Fig.RE-1
Key No.58
164
154
158
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
199
198
197
165
Fig.RE-2
TCM-X100AL
MODEL TCM-X100
0107-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
249
RE-2
151 630 083 5496 FUSE HOLDER 10 765RE-010-151
152 630 059 6632 ACCESSORY,WIRING 1 765RE-010-152
153 630 083 5601 ACCESSORY,WIRING 1 765RE-010-153
154 630 083 5465 TERMINAL 30 765RE-010-154
155 630 083 5533 ACCESSORY,WIRING 1 765RE-010-155
156 630 072 8408 ACCESSORY,WIRING 1 765RE-010-156
157 630 058 8460 ACCESSORY,WIRING 3 765RE-010-157
158 630 049 3672 BRACKET,WIRING 3 765RE-010-158
159 423 022 8005 FUSE 250V 1A 1 F104 765RE-010-159
160 423 022 8104 FUSE 250V 2A 1 F100 765RE-010-160
161 423 025 2109 FUSE 250V 6.3A 6 F105,F106,F107,F108,F110,F111
765RE-010-161
162 423 022 8500 FUSE 250V 10A 1 F101 765RE-010-162
164 630 083 5564 ACCESSORY,WIRING 1 765RE-010-164
165 630 058 8415 ACCESSORY,WIRING 2 765RE-010-165
166 630 091 2128 RAIL,WIRING 1 765RE-010-166
197 411 043 5004 SCR PAN 4X8 2 765RE-010-197
198 411 008 1706 WASHER SPR 4 2 765RE-010-198
199 411 119 2104 WASHER V 4X9X0.8 2 765RE-010-199
MODEL TCM-X100
0212-002
250
100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION

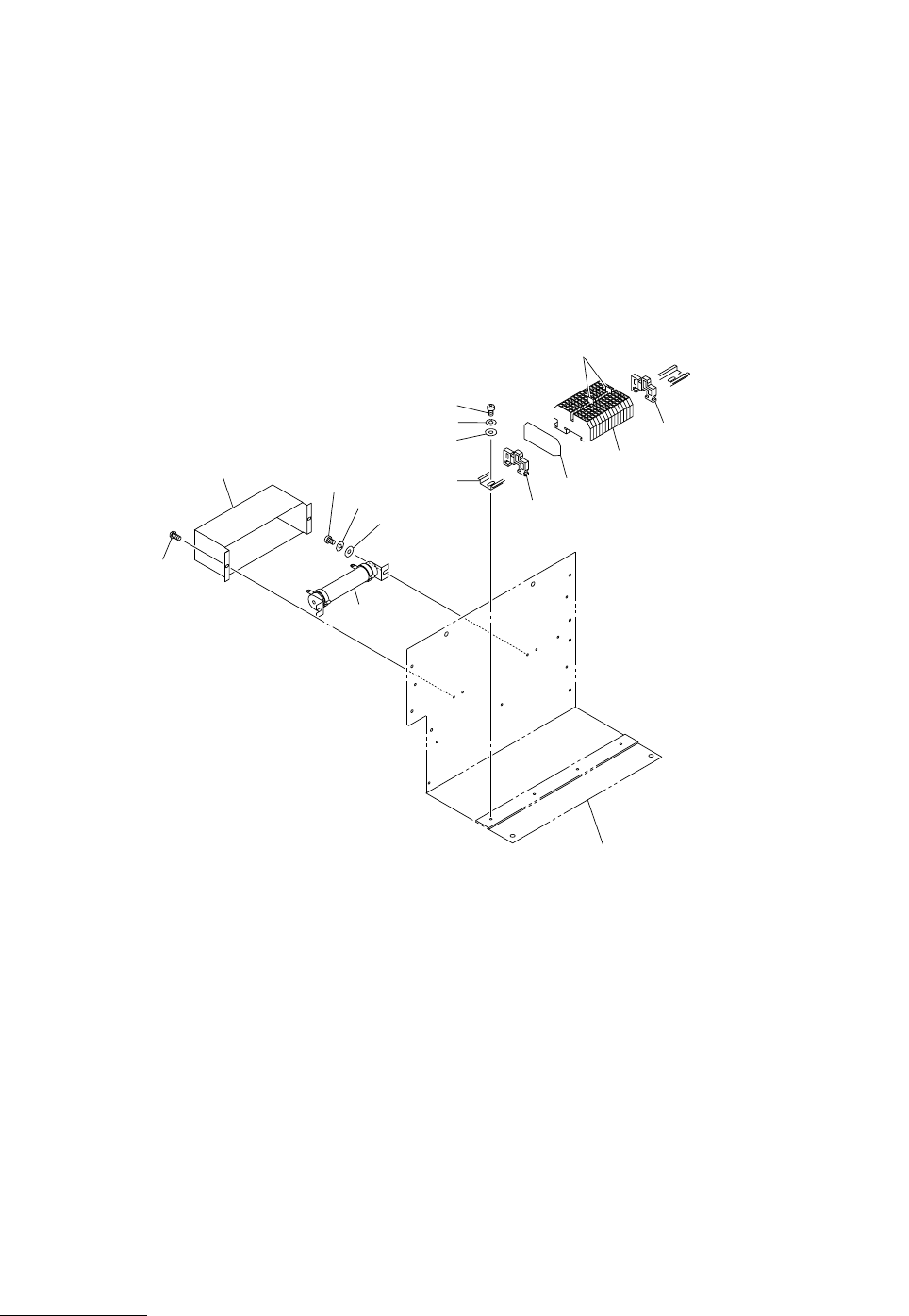

Fig. RE-3 100V 㔚Ḯ㧟 100V Power Supply 3
252
297
298
299
298
299
297
258
257
253
255
.
259
.
254
257
256
See Fig.RE-1
Key No.58
251
296
Fig.RE-3
TCM-X100AL
