2 5 Cleaner Head-2 Cleaner KHU-090703 14 49 49 49 16 11 14 55 60 60 62 16 46 50 48 63 66 22 51 61 29 21 25 26 59 54 41 27 57 28 29 57 54 54 53 60 43 13 30 64 53 45 31 18 17 15 52 32 54 36 19 34 37 35 56 33 53 12 54 27 63…
1
5

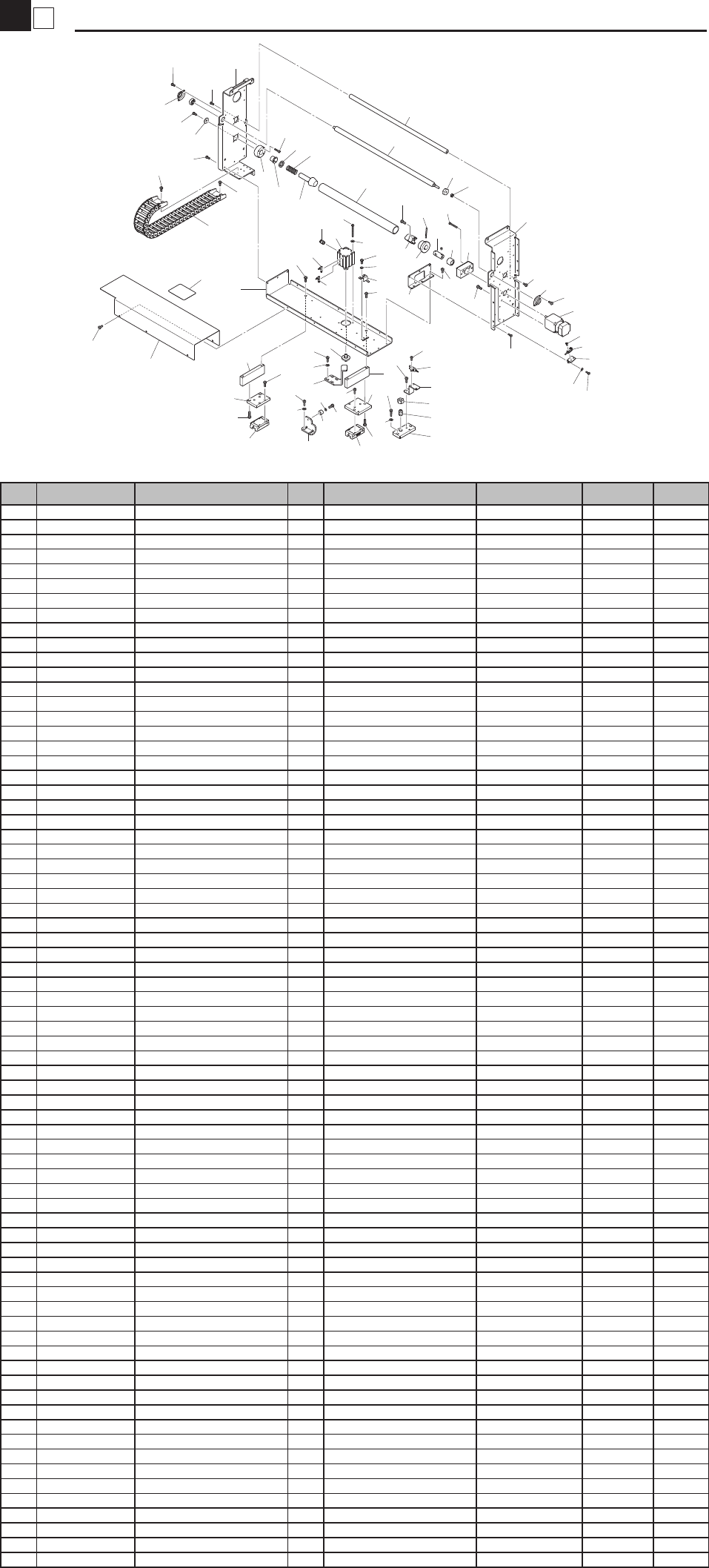

Cleaner Head-1
Cleaner
KHU-080918
48
58
6
38
55
49
49
50
31
52
21
30
32
34
47
39
54
36
37
59
4
42
48
12
48
63
22
59
5
18
14
19
20
49
9
29
45
7
58
38
48
15
61
35
28
62
49
61
60
60
1
64
43
25
11
46
17
10
57
51
49
63
40
24
44
64
56
51
23
56
63
49
3
3
2
48
8
26
53
49
50
41
33
27
13
16
65
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3601-00X SPACER Y,L 1
2 KHU-M3601-10X SPACER Y,R 1
3 KHU-M3602-00X SPACER,CLE.BASE 2
4 KHU-M3603-00X PLATE,BASE 1
5 KHU-M3604-00X BRKT,PLATE 1
6 KHU-M3605-00X PLATE L 1
6-1 KHU-M3605-01X PLATE L 1 (2007/5/24) MD50117 OK
7 KHU-M3606-00X PLATE R 1
8 KHU-M3608-00X SHAFT,CLEANER 1
9 KHU-M3609-00X SHAFT,IDLER 1
10 KHU-M3619-00X STAY,BALL PLUNGER 1
11 KHU-M3620-00X BRACKET,SENSOR 1
12 KHU-M3623-00X COVER2,HNS 1
13 KHU-M3624-00X CABLE DUCT 1
14 KGJ-M3656-02X PLATE,ROLLER 2
15 KGG-M121A-10X DC MOTOR ASSY 1
16 KHU-M3685-00X STAY 3,STOPPER 1
16-1 KHU-M3685-01X STAY 3,STOPPER 1 (2007/6/18) MD50110 OK
17 KGJ-M3617-00X BALL PLUNGER 1
18 KGJ-M3648-01X ROLLER,CLUTCH 1
19 KGJ-M3654-00X SHAFT 3,ROLLER 1
20 KGJ-M3655-00X PIN,SPRING 2
20-1 90990-03J001 PIN,SPRING 2 (2007/11/30) MD00140 OK
21 KGJ-M3660-00X SPRING 2 1
22 KGJ-M3678-01X DOG,SENSOR 1
23 KGJ-M3681-03X PIN 2,LOCK 1
24 KGJ-M3683-00X STAY 1,STOPPER 1
25 KHU-M653D-00X SENSOR,CLNG DET 1
26 KGY-M3617-01X SHAFT,MOTOR 1
27 KGY-M3618-01X STAY,MOTOR 1
28 KGY-M3624-00X BRKT,SENSER 1
29 KGY-M3625-00X NUT:M6 1
30 KGY-M3650-00X SHAFT,SPRING 1
31 KGY-M3651-00X STAY,DRY BRG 1
32 KGY-M3652-00X OIL FREE BUSH 1
33 KGY-M3653-00X WASHER,SPRING 2
33-1 90990-28J056 WASHER,PLAIN 2 (2007/12/18) MDX0125 OK
34 KGY-M3661-B0X PIPE,PAPER 360 1
35 KGY-M653N-00X SENSOR, ROLL ANGLE 1
36 KHU-M653F-20X SENSOR,CLNG OFF 1
37 KHU-M653F-40X SENSOR,CLNG ON 1
38 KW3-M3635-00X BEARING:SFB34-8 2
38-1 90990-39J003 BEARING 2 (2008/4/15) ME20075 OK
39 KW3-M3656-00X CYL,LOCK 1
40 KW3-M3666-00X DAMPER2,PLATE 1
41 KW3-M3668-00X STOPPER1,SHAFT 2
41-1 90990-28J081 WASHER,PLAIN 2 (2008/8/19) MDY0047 OK
42 90K41-000550 LABEL,ALERT 1
43 90K80-S15LW0 LM BLOCK,SSR15W-L 1
44 90K80-S15RW0 LM BLOCK(SSR15W) 1
45 95302-06600 NUT HEXAGON 1
46 99780-12600 NUT,HEXAGON 1
47 $TS4-01 JOINT 2
48 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
49 91312-04008 BOLT HEX.SOCKET HEAD 15 M4X8
50 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
51 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
52 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
53 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
54 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
54-1 91312-04050 BOLT HEX.SOCKET HEAD 4 M4X50 (2013/3/8) MK20158 NG
55 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
56 91312-05014 BOLT HEX.SOCKET HEAD 6 M5X14
57 91312-05020 BOLT HEX.SOCKET HEAD 2 M5X20
58 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
59 91312-06016 BOLT HEX.SOCKET HEAD 5 M5X16
60 91312-06020 BOLT HEX.SOCKET HEAD 4 M5X20
61 98902-03008 SCREW BINDING HEAD 1
62 92902-03200 WASHER PLAIN 2
63 92902-04600 WASHER PLAIN 3
64 92902-05200 WASHER PLAIN 8
65 90990-28J171 WASHER PLAIN 4 (2013/3/8) MK20158
2
5

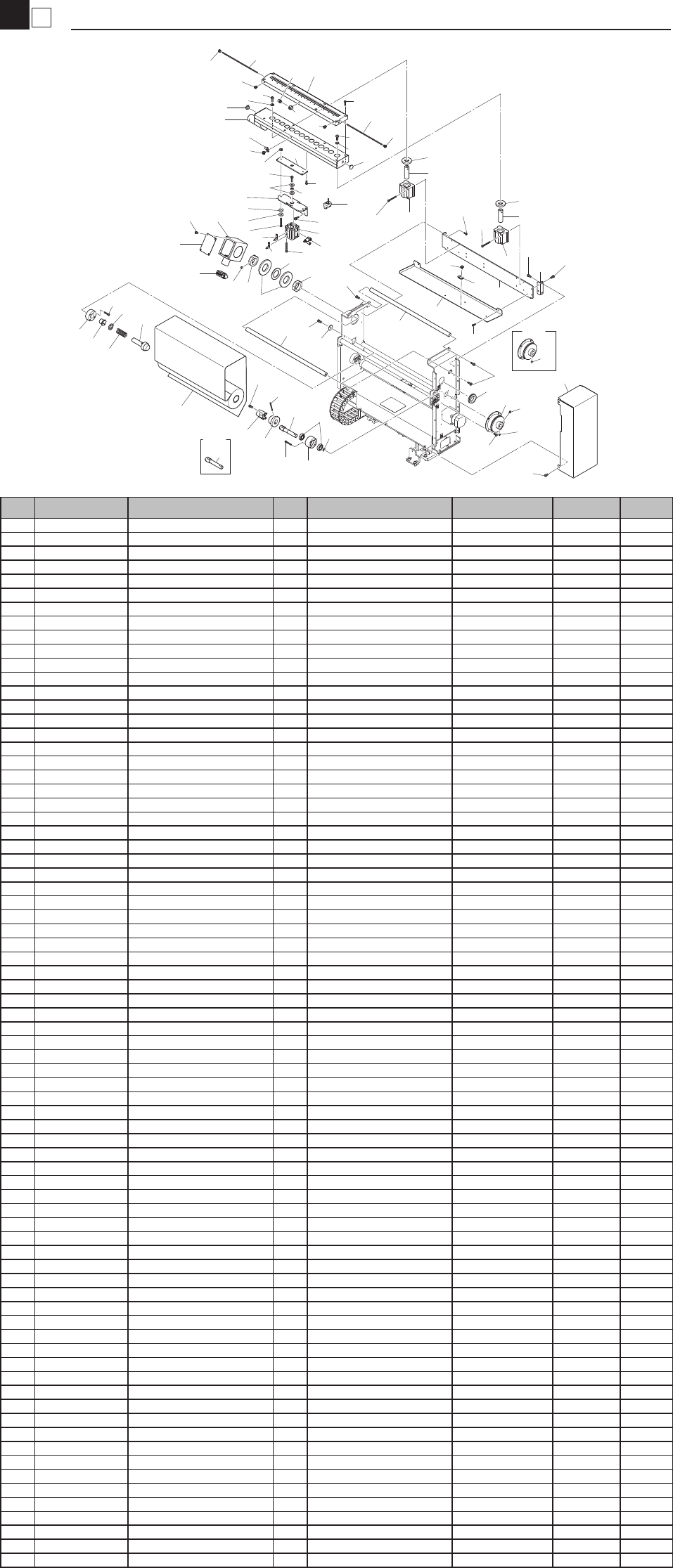

Cleaner Head-2
Cleaner
KHU-090703
14
49
49
49
16
11
14
55
60
60
62
16
46
50
48
63
66
22
51
61
29
21
25
26
59
54
41
27
57
28
29
57
54
54
53
60
43
13
30
64
53
45
31
18
17
15
52
32
54
36
19
34
37
35
56
33
53
12
54
27
63
47
1
28
29
20
44
56
39
40
7
2
42
58
60
6
65
38
953
10
8
5
23
49
62
4
2
3
64
67
64
OLD
31
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3607-00X BRKT,CLEANER 1
2 KHU-M3608-10X SHAFT,CLEANER 2
3 KHU-M3610-00X STAY,CLEANER 1
4 KHU-M3611-00X PIPE,VACUUM 1
5 KHU-M3612-00X LOCK NUT 1 1
6 KHU-M3612-10X LOCK NUT 2 1
7 KHU-M3613-00X WASHER 2
7-1 90990-28J089 WASHER,PLAIN 2 (2008/8/19) MDY0047 OK
8 KHU-M3614-00X COLLAR 1
9 KHU-M3615-00X DUCT,VACUUM 1
10 KHU-M3616-00X PLATE L 1
11 KHU-M3618-00X PAD,VACUUM 360 1
12 KHU-M3621-00X GUARD PLATE 1
13 KHU-M3622-01X COVER,MOTOR 1
14 KHU-M3629-00X SHAFT,LIQUID 2
15 KHU-M3656-00X PLATE,ROLLER 2
16 KGJ-M3614-00X PLUG 2
17 KGJ-M3654-00X SHAFT 3,ROLLER 1
18 KGJ-M3655-00X PIN,SPRING 1
19 KGJ-M3660-00X SPRING 2 1
20 KGY-M3606-00X CYL,CLEANER 1
21 KGY-M3607-01X BRKT.CYL 1
22 KGY-M3608-00X PLATE,CYL. 1
23 KGY-M3609-00X SPACER,CYL 1
23-1 90990-28J053 WASHER,PLAIN 1 (2007/12/20) MDX0104 OK
24 KGY-M3610-00X WASHER 1 2
24-1 90990-28J054 WASHER,PLAIN 2 (2007/12/18) MDX0125 OK
25 KGY-M3611-00X DAMPER,CLEANER 1 2
25-1 90990-28J107 WASHER,PLAIN 2 (2008/8/19) MDY0047 OK
26 KGY-M3612-00X WASHER,STOPPER 2
26-1 90990-28J055 WASHER,PLAIN 2 (2007/12/18) MDX0125 OK
27 KGY-M3613-00X HOUSING,LINER BUSH 2
28 KGY-M3614-00X SHAFT,LINEAR BUSH 2
29 KGY-M3615-00X DAMPER,CLEANER 2
29-1 90990-28J108 WASHER,PLAIN 2 (2008/8/19) MDY0047 OK
30 KGY-M3619-00X BRAKE MAGNETIC 1
31 KGY-M3620-01X SHAFT,BRAKE 1
31-1 KGY-M3620-02X SHAFT,BRAKE 1 (2008/6/17) ME60120 OK
32 KGY-M3621-00X STAY,BRAKE 1
33 KGY-M3651-00X STAY,DRY BRG 1
34 KGY-M3652-00X OIL FREE BUSH 1
35 KGY-M3653-00X WASHER,SPRING 1
36 KGY-M3655-00X SHAFT21,SPRING 1
37 KGY-M3660-B0X BENCOT,ROLL 360 1
38 KGY-M3730-00X TUBE 25,BAND 1
39 KHU-M653F-10X SENSOR, CLNG, UP 1
40 KHU-M653F-30X SENSOR, CLNG, DOWN 1
41 KGY-M653X-00X SENSOR,SOLVENT, CHK 1
42 KW3-M3668-00X STOPPER1,SHAFT 1
43 K46-M101B-00X GROMMET (NG-79-Q) 1
44 $SSF4-M5-A-P JOINT 1
45 90933-01J901 BEARING 1
46 $BF6U JOINT 1
47 $NK-2N NYLON CLIP 21
48 $NK-4N NYLON CLIP 1
49 $PF JOINT 6
50 $UEF JOINT 1
51 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
52 91312-03025 BOLT,HEX.SOCKET HEAD 4 M3X25
53 91312-04006 BOLT HEX.SOCKET HEAD 18 M4X6
54 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
55 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
56 91312-04020 BOLT HEX.SOCKET HEAD 4 M4X20
57 91312-04040 BOLT HEX.SOCKET HEAD 12 M4X40
58 91312-05010 BOLT HEX.SOCKET HEAD 1 M5X10
59 91312-05030 BOLT HEX.SOCKET HEAD 2 M5X30
60 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X40
61 91312-06016 BOLT HEX.SOCKET HEAD 1 M6X16
62 92902-06200 WASHER PLAIN 2
63 90990-11J003 SCREW,PAN HEAD W/W 2
64 92A08-04305 SET SCREW M4X5 3
64-1 92A08-04304 SET SCREW M4X4 4 (2008/6/17) ME60120 OK
65 92A08-05306 SCREW,SET 1
66 95302-05600 NUT HEXAGON 1
67 99009-12400 CIRCLIP : 1 (2008/6/17) ME60120
3
5
Cleaner Base Assy
Cleaner
KHU-080918
2
50
40
36
45
23
14
42
25
24
22
39
15
6
28
27
32
41
21
16
1
26
5
30
11
40
8
18
42
4
43
31
38
47
33
37
17
7
37
12
3
42
3
42
42
46
9
42
3
26
26
13
34
29
29
40
10
20
19
44
35
35
48
51
49
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M3750-00X BOTTLE BASE 1
2 KHU-M3751-01X COVER,PUMP 1
3 KHU-M3752-00X BRKT.,TUBE 3
4 KHU-M3753-00X BODY,VALVE 1
5 KHU-M3754-00X BRKT. 3,TUBE 1
6 KHU-M3756-00X PUMP 1
7 KHU-M3757-01X BRKT,BOTTLE 1
8 KHU-M3758-00X GUIDE,TUBE VACUUM 1
9 KHU-M3759-00X HOSE JOINT 1
10 KHU-M3760-00X COVER,CYL. 1
11 KHU-M3761-00X COVER,TUBE 1
12 KHU-M3762-00X TUBE 25,VACUUM 1
13 KHU-M3762-10X TUBE 25,VACUUM 1 1
14 KHU-M3776-20X TUBE,PUMP 2 1
15 KHU-M3776-30X TUBE,PUMP 3 1
16 KHU-M653F-00X SENSOR VAC,CLOSE 1
17 KGY-M653V-00X SENSOR,SOLV.EMPTY 1
18 KW3-M653J-00X CHANGE,PN ASSY 1
19 KGJ-M3751-00X WASHER 1
19-1 90990-28J021 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
20 KGJ-M3753-00X SPACER,VALVE 1
20-1 90990-28J022 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
21 KGJ-M3754-00X CYL,VALVE 1
22 KGJ-M3762-00X BOTLLE 1
23 KGJ-M3764-02X BRKT,JOINT 1
24 KGJ-M3765-01X JOINT,F 1
24-1 90990-42J012 JOINT 1 (2008/6/17) ME30112 OK
25 KGJ-M3766-01X JOINT,M 1
25-1 90990-42J013 JOINT 1 (2008/6/17) ME30112 OK
26 KGY-M3730-00X TUBE 25,BAND 3
27 KGY-M3732-00X SOLVENT FILTER 1
28 KGY-M3733-01X SPACER 1
28-1 90990-41J092 COLLAR 1 (2008/4/11) ME30019 OK
29 KU5-M3419-00X WASHER 2
29-1 90990-28J069 WASHER,PLAIN 2 (2007/12/18) MDX0125 OK
30 KW3-M3690-00X TUBE,BAND 1
31 KW7-M5126-00X SAFETY SWITCH 1
32 $BF6U JOINT 2
33 $NK-2N NYLON CLIP 3
34 $TL4-01 JOINT 2
35 $UEF JOINT 2
36 90K41-000410 LABEL,ALERT 2
37 90990-12J004 SCREW BIN.HEAD W/W 2
38 90563-24J370 SPACER BOLT 4
39 91312-03005 BOLT HEX.SOCKET HEAD 2 M3X5
40 91312-04006 BOLT HEX.SOCKET HEAD 5 M4X6
41 91312-04045 BOLT HEX.SOCKET HEAD 4 M4X45
42 91312-05008 BOLT HEX.SOCKET HEAD 17 M5X8
43 91312-05010 BOLT HEX.SOCKET HEAD 4 M5X10
44 91312-08020 BOLT HEX.SOCKET HEAD 1 M8X20
45 92902-05600 WASHER PLAIN 1
46 92990-04400 WASHER EXTL.TOOTHED 4
46-1 90172-00J040 WASHER,EXTL.TOOTHED 4 (2008/4/15) ME40115 OK
47 98980-03008 SCREW BINDING HEAD 2
48 90K41-000390 LABEL,ALERT 1
49 KGJ-M3762-A0X BOTTLE ASSY 1
50 90K41-000410 LABEL,ALERT 1
51 90K41-000390 LABEL,ALERT 1
