1 7 Main Stopper Conveyor KHU-080924 5 34 33 38 40 6 45 45 2 32 50 41 45 1 4 41 40 30 48 48 3 43 10 9 19 19 7 44 29 37 28 21 23 26 49 22 20 47 46 25 46 14 36 36 8 11 16 15 40 30 31 12 50 27 41 17 24 42 39 39 18 13 51 35 …
3
6

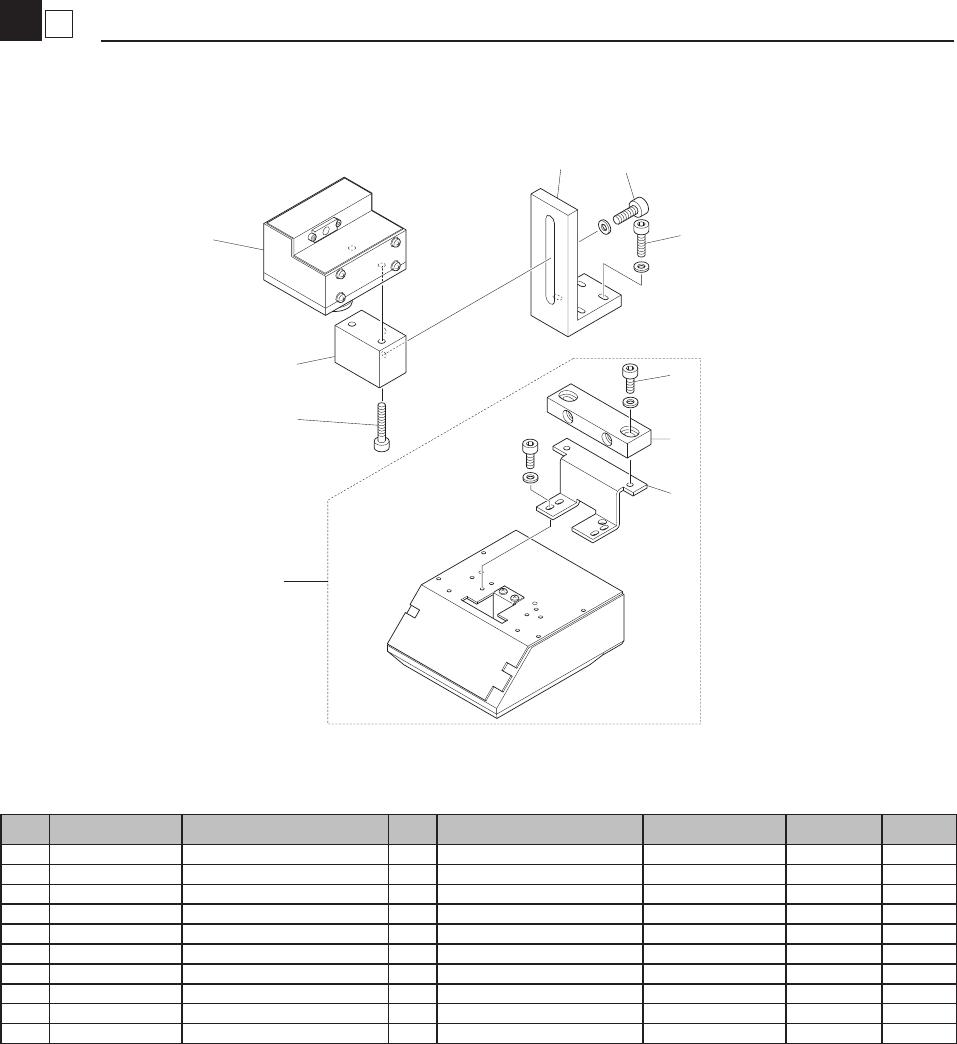

Inspection Camera (Op.)
Camera
KHU-080918
1
8
3
10
4
6
5
7
2
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M72A0-20X SINGLE CAM. SUB ASSY 1
2 KGJ-M7915-11X BRACKET, CAMERA 1
3 KGJ-M7916-00X STAY, CAMERA 1
4 91317-05020 BOLT HEX. SOCKET HEAD 4
5 91317-06018 BOLT HEX. SOCKET HEAD 2
6 91317-05030 BOLT HEX. SOCKET HEAD 2
7 KGJ-M79B0-00X INSP. LIGHT ASSY 1
8 KGJ-M7914-10X BRKT, LIGHT 1
9 KGJ-M7918-01X STAY, LIGHT 1
10 91317-05014 BOLT HEX. SOCKET HEAD 4
1
7

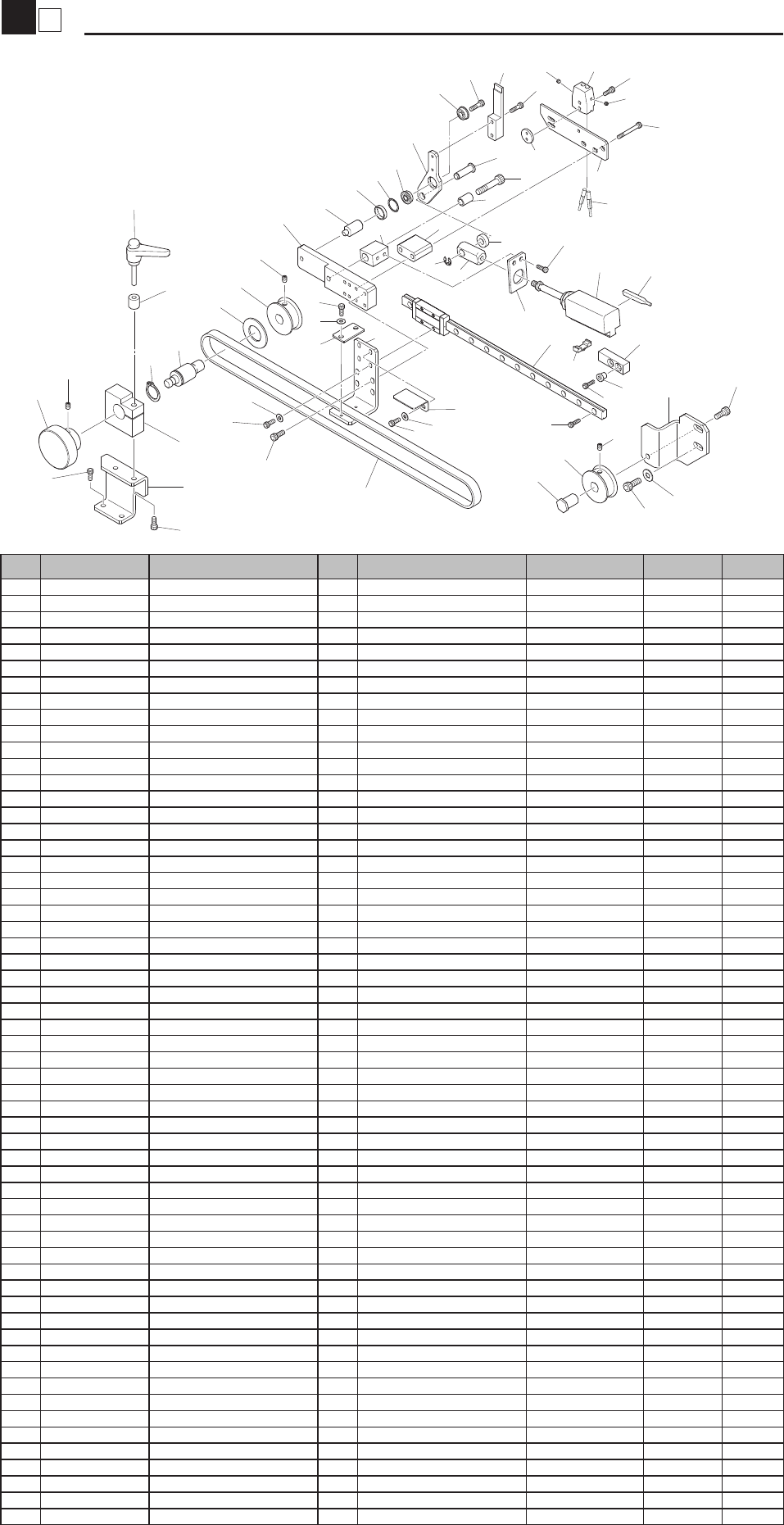

Main Stopper
Conveyor
KHU-080924
5
34
33
38
40
6
45
45
2
32
50
41
45
1
4
41
40
30
48
48
3
43
10
9
19
19
7
44
29
37
28
21
23
26
49
22 20
47
46
25
46
14
36
36
8
11
16
15
40
30
31
12
50
27
41
17
24
42
39
39
18
13
51
35
50
41
52
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9176-00X BELT MS 1
2 KHU-M9183-00X PLATE 1, PULLEY 1
3 KHU-M9184-00X PLATE 2, PULLEY 1
4 KHU-M9185-00X DIAL PLATE 1
5 KHU-M9193-00X LEVER,CLAMP 1
6 KG7-M9190-00X HANDLE 1
7 KHU-M653L-00X SENSOR,MAIN ST 1
8 KGJ-M9139-00X SHIM,to.1 1
9 KGJ-M9172-00X DAMPER 2
10 KGJ-M9173-00X COLLAR,DAMPER 4
11 KGJ-M9174-00X WASHER,BRG. 1
11-1 90990-28J025 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
12 KGJ-M9186-01X PLATE,BELT 1
13 KGJ-M9189-00X GUIDE 1
14 KGY-M9161-00X BLOCK,STOPPER 1
15 KGY-M9162-01X MAIN PLATE 1
16 KGY-M9163-00X SHAFT,BRG. 1
17 KGY-M9164-01X BLOCK,COLLAR 1
18 KGY-M9165-01X PALTE, SENSOR 1
19 KGY-M9167-00X CYLINDER 1
20 KGY-M9174-00X NUT,SENSOR 1
21 KGY-M9175-00X COLLAR,SENSOR 1
22 KGY-M9178-00X HINGEE PIN 1
23 KGY-M9179-00X COLLAR,HINGE 1
23-1 90990-41J038 COLLAR 1 (2008/4/14) ME20133 OK
24 KGY-M9180-00X PLATE,STOPPER 1
25 KGY-M9181-00X STAY,SENSOR 1
26 KGY-M9182-00X COLLAR,HOLDER CYL. 1
26-1 90990-41J039 COLLAR 1 (2008/4/14) ME20133 OK
27
KGY-M9186-00X PLATE,GUIDE 1
27-1 KHU-M9187-00X PLATE,GUIDE 1 (2007/6/18) MD50110 OK
28 KGY-M9187-00X CAP,SYL. 1
29 KGY-M9188-00X HOLDER,CYL. 1
30 KH2-M9105-11X PULLEY,MOTOR:P30-3GT 2
31 KU0-M9194-00X WASHER 1
31-1 90990-28J068 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
32 KV7-M9185-00X HOUSING,SHAFT 1
33 KV7-M9191-00X SHAFT 1 1
34 KV7-M9193-10X COLLAR LEVER 1
34-1 90990-41J059 COLLAR 1 (2008/4/17) ME20197 OK
35 KV7-M9196-02X SHAFT 2 1
36 90933-03J694 BEARING 2
37 90440-1J040 CIRCLIP : 1
38 99009-15400 CIRCLIP : 1
39 92A08-03303 SET SCREW M3X3 2
40 92A08-04306 SET SCREW M4X6 5
41 91312-03008 BOLT HEX.SOCKET HEAD 21 M3X8
42 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
43 91312-03012 BOLT,HEX.SOCKET HEAD 4 M3X12
44 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
45 91312-04010 BOLT HEX.SOCKET HEAD 8 M4X10
46 91312-04014 BOLT HEX.SOCKET HEAD 1 M4X14
47 91312-04030 BOLT HEX.SOCKET HEAD 2 M4X30
48 91312-05010 BOLT HEX.SOCKET HEAD 3 M5X10
49 91312-06025 BOLT HEX.SOCKET HEAD 1 M4X17
50 92902-03200 WASHER PLAIN 6
51 92902-05200 WASHER PLAIN 2
52 KHU-M653K-00 SENSOR,SET POS 1
2
7

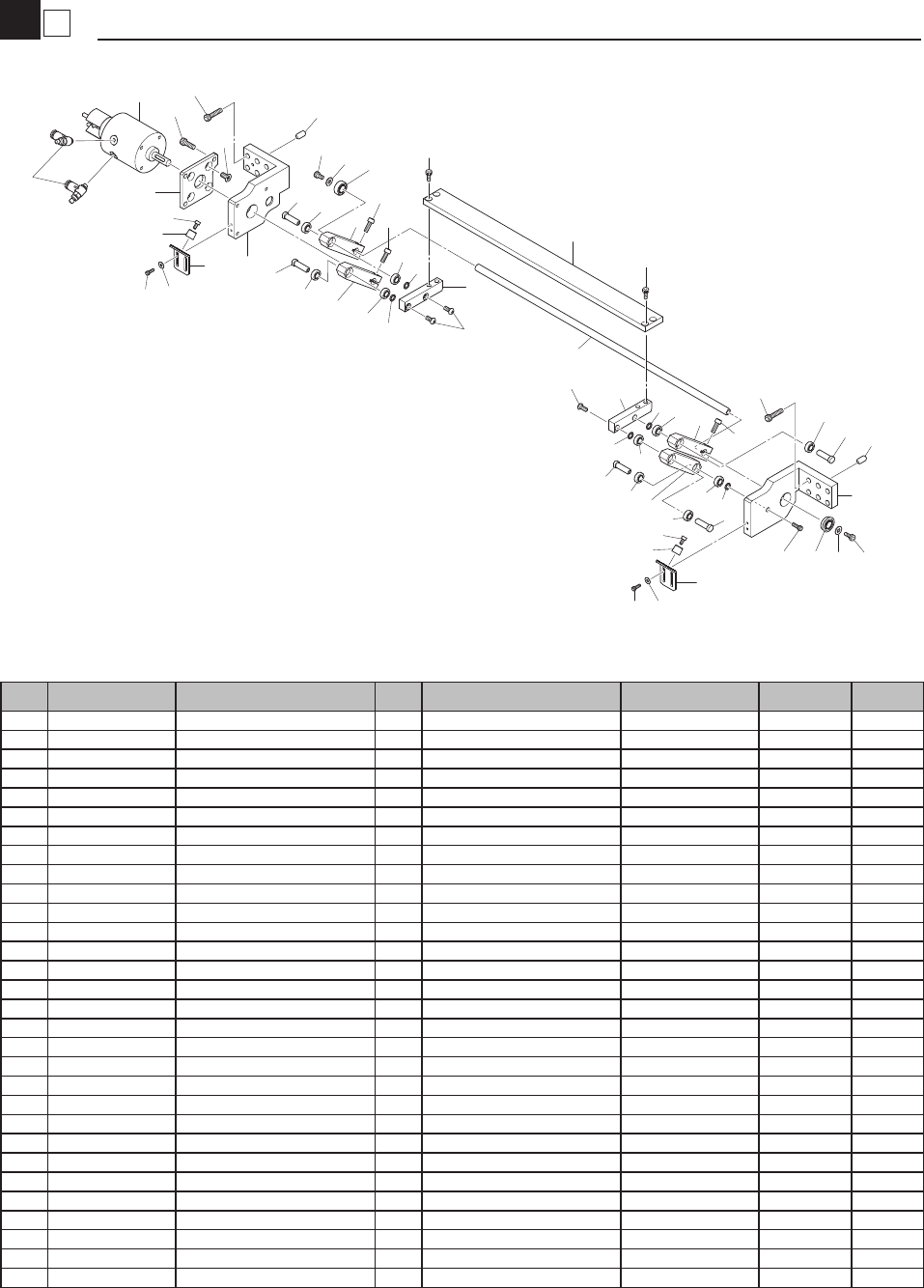

Board Stopper
Conveyor
KHU-080924
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M9253-00X SHAFT 1
2 KHU-M9254-01X PLATE 1 1
3 KGJ-M925A-00X PIN 1 5
4 KGJ-M925D-00X BRKT.1,STOPPER 2
5 KG7-M9127-00X STOPPER,LOCATE PIN 2
6 KHU-M9251-00X LEG 1 1
7 KGY-M9251-10X PLATE, ROTARY AC. 1
8 KHU-M9252-00X LEG 2 1
9 KGY-M9255-00X ROTARY AC. 1
10 KHU-M9256-00X ARM 2 3
11 KHU-M9257-00X ARM 3 1
12 KGY-M9259-00X BAR L 1
13 KGY-M9259-10X BAR R 1
14 KW3-M925K-00X SPACER 1 5
14-1 90990-29J004 SHIM 5 (2008/1/14) MDY0057 OK
15 90933-02J126 BEARING 10
16 90933-02J688 BEARING 1
17 90933-03J688 BEARING 1
18 $SC4-M5B SPEED CONTROLLER 2
19 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
20 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
21 91312-04010 BOLT HEX.SOCKET HEAD 1 M4X10
22 91312-04012 BOLT,HEX.SOCKET HEAD 3 M4X12
23 91312-05014 BOLT HEX.SOCKET HEAD 3 M5X14
24 91312-05020 BOLT HEX.SOCKET HEAD 8 M5X20
25 92012-04010 BOLT,BUTTON HEAD 4
26 92902-03200 WASHER PLAIN 4
27 92902-04200 WASHER PLAIN 2
28 98702-05010 SCREW FLAT HEAD 4
29 99480-06012 PIN,PARALLEL 4
15
3
29
26
17
21
6
3
3
3
3
19
19
26
4
5
19
7
19
26
4
5
8
15
15
15
16
20
29
24
23
9
18
27
15
15
15
15
15
16
14
14
14
14
12
10
10
10
11
14
13
25
25
20
20
2
1
20
24
22
22
22
28
Front & Rear Same Parts
