KHU_YCP_PL - 第5页
11 12 18 15 18 50 16 37 9 13 17 49 34 14 7 6 39 7 3 9 6 39 21 30 43 20 22 52 52 28 36 48 23 24 25 27 4 37 1 10 45 41 8 2 1 42 46 44 38 5 37 52 40 26 38 29 44 36 39 35 35 39 19 47 31 33 33 51 32 22 2 2 Cover Sub Assy Cove…
49
6
59
40
60
74
27
43
57
55
8
57
56
10
63
63
60
5
3
4
7
66
63
71
70
64
61
60
11
68
39
60
61
60
60
41
38
60
12
64
45
60
15
11
10
52
51
63
63
69
9
1
19
21
22
17
48
48
44
44
18
48
16
45
64
60
62
46
61
60
38
66
60
60
41
71
69
67
60
64
60
53
2
63
69
54
50
48
20
14
49
60
59
42
69
52
47
72
28
75
35
63
69
25
74
65
61
60
33
36
29
31
30
34
24
37
74
26
32
71
67
60
13
14
58
23
1
2
Cover Assy
Cover
KHU-080916
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M1117-00X PULL 1
2 KHU-M1311-00X COVER T 1
3 KHU-M1320-00X COVER FR,ASSY 1
4 KHU-M1322-00X HOLE,HNS 1
5 KHU-M1323-00X PANEL PLATE 1
6 KHU-M1330-00X COVER FL, ASSY 1
7 KHU-M1340-00X COVER FT ASSY 1
8 KHU-M1351-00X DOOR F 1
9 KHU-M1351-50X DOOR R 1
9-1 KHU-M1351-51X DOOR R 1 (2007/6/19) MD60065 OK
10 KHU-M1352-00X BRKT HINGE 2
11 KHU-M1353-00X PLATE,NUT 4
12 KHU-M1361-00X COVER SR 1
13 KHU-M1361-50X COVER S 1
14 KHU-M1362-00X COVER ST 2
15 KHU-M1371-00X COVER RL 1
16 KHU-M1371-50X COVER RR 1
17 KHU-M1372-00X COVER,RC 1
18 KHU-M1374-00X BRKT,COVER RC 1
19 KHU-M1375-00X COVER RCB 1
20 KHU-M1376-00X BRKT,COVER RCT 1
21 KHU-M1377-00X COVER 2, RCB 1
22 KHU-M1378-00X NUT PLATE, R WINDOW 2
23 KHU-M1380-00X REGULATOR UNIT ASSY 1
24 KHU-M1381-00X PLATE,REG. 1
25 KHU-M1382-00X BRKT.,GAUGE 1
26 KHU-M1383-00X BRKT.,REG. 1
27 KHU-M1384-00X BRKT.,SPEED C. 1
28 KHU-M8596-00X PRESSURE GAGE 1
29 KG7-M8504-00X REGULATOR (R300-03) 1
30 KH5-M8501-00X EXHAUST VALVE 1
31 KH5-M8531-00X FITTING 1 1
32 $KM-23 MUFFLER 1
33 $SL10-03 JOINT 1
34 $SL12-03 JOINT 1
35 $TSH4-M5 JOINT 1
36 $TBY4-02 JOINT 1
37 $NK-2N NYLON CLIP 2
38 KHU-M1391-00X BRKT U,COVER S 2
39 KHU-M1392-00X BRKT, MAIN S/W 1
40 KHU-M1392-50X BRKT, COVER FR 1
41 KHU-M1393-00X BRKT, COVER SB 2
42 KHU-M1394-00X STAY COVER FR 1
43 KHU-M1395-00X STAY,FD 1
44 KHU-M1397-00X BRKT,COVER RC 2
45 KHU-M1398-00X BRKT, COVER R 2
46 KHU-M1399-00X BRKT,MAGNET 2
47 KHU-M13D6-00X EMBLEM,YCP 1
48 K16-90101-06X BOLT:TP-M4X6 27
48-1 90990-46J001 BOLT,THIN HEAD 27 (2008/6/3) ME30136 OK
49 K16-90103-00X BOLT: TP-M4X8 12
49-1 90990-46J006 BOLT,THIN HEAD 12 (2008/6/16) ME50123 OK
50 K44-M1354-00X MG.CATCH (TL-152-2) 2
51 K46-M1373-00X SHAFT HINGE 4
52 KG2-M1372-00X PIECE B HINGE 4
53 KW3-M1343-00X COVER,AIR DUCT 1
54 KGY-M1323-00X COVER 23 1
55 KV7-M1372-00X HANDLE 1 1
56 KW7-M13D7-01X SEAL 2(YAMAHA) 1
57 90K41-000360 LABEL,ALERT 3
58 90K41-000350 LABEL,ALERT 1
59 90K41-000380 LABEL,ALERT 2
60 90990-12J001 SCREW BIN.HEAD W/W 67
61 90990-12J004 SCREW BIN.HEAD W/W 12
62 91312-03010 BOLT HEX.SOCKET HEAD 4 M3X10
63 91312-04008 BOLT HEX.SOCKET HEAD 22 M4X8
64 91312-05010 BOLT HEX.SOCKET HEAD 14 M5X10
65 91312-06010 BOLT HEX.SOCKET HEAD 8 M6X10
66 91312-06016 BOLT HEX.SOCKET HEAD 4 M6X16
67 91312-08016 BOLT HEX.SOCKET HEAD 2 M8X16
68 91312-08020 BOLT HEX.SOCKET HEAD 2 M8X20
69 92902-04200 WASHER PLAIN 12
70 92902-05200 WASHER PLAIN 10
71 92902-06200 WASHER PLAIN 10
72 98502-03008 SCREW PAN HEAD (+) 4
73
74 90990-11J001 SCREW PAN HEAD 6
75 98902-03006 SCREW BINDING HEAD 2
11
12
18
15
18
50
16
37
9
13
17
49
34
14
7
6
39
7
3
9
6
39
21
30
43
20
22
52
52
28
36
48
23
24
25
27
4
37
1
10
45
41
8
2
1
42
46
44
38
5
37
5240
26
38
29
44
36
39
35
35
39
19
47
31
33
33
51
32
22
2
2
Cover Sub Assy
Cover
KHU-100108
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M1321-00X COVER FR 1
2 KHU-M1324-00X STAND BRACKET 1
3 KHU-M1326-00X STAY, DAMPER 1
4 KHU-M1344-00X RAIL R 1
5 KHU-M134A-00X BRKT S/W 1
6 KGJ-M3133-00X COLLAR,DAMPER 2
7 KGY-M7177-00X DAMPER 3 4
8 KW7-M5126-00X SAFETY SWITCH 1
8-1 KW7-M5126-H0X SAFETY SW UNIT ASSY 1 (2009/12/1) MFX0093 OK
9 K16-90103-00X BOLT: TP-M4X8 7
9-1 90990-46J006 BOLT,THIN HEAD 7 (2008/6/16) ME50123 OK
10 K46-M101B-00X BROMMET 1
11 KHU-M1331-00X COVER FR 1
12 KHU-M1333-00X DOOR AIR U 1
13 KHU-M1334-00X BRKT.,MAGNET 1
14 KHU-M1344-50X RAIL L 1
15 KGJ-M1350-00X SPACER,MINI LATCH 1
16 KGJ-M1351-01X PLATE,MINI LATCH 1
17 KV5-M1130-00X CATCH MG. 1
18 KW3-M1349-00X MINI LATCH 1
19 KHU-M1341-00X COVER FCT 1
19-1
KHU-M1341-01X COVER FCT 1 (2007/7/26) MD70084 OK
20 KHU-M1342-01X FRAME,COVER FC3 1
21 KHU-M1343-01X COVER FC2 1
22 KHU-M1345-00X HINGE 2
23 KHU-M1346-00X STAY CAMF 2
24 KHU-M1347-00X WASHER 2
25 KHU-M1348-00X CAM FOLLOWER 2
26 KHU-M1349-00X BRKT KEY S/W 1
27 KHU-M134D-00X WASHERS 2
27-1 90990-28J105 WASHER,PLAIN 2 (2008/8/19) MDY0047 OK
28 KHU-M134E-00X PLATE HINGE 1
29 KHU-M134F-00X PLATE, NUT 1
30 KH2-M1324-00X GRIP 1
31 KL3-M1348-10X GAS SPRING 1
32 KM0-M1331-01X BRACKET GAS DAMPER 1
33 KM0-M1346-00X SHOULDER,BOLT 2
33-1 90990-31J006 BOLT,SHOULDER 2 (2008/6/24) ME10118 OK
34 K16-90101-10X BOLT:TP-M4X10 10
34-1 90990-46J003 BOLT,THIN HEAD 10 (2008/6/3) ME30136 OK
35 K46-M1374-10X HINGE 2 2
35-1 K46-M1374-11X HINGE 2 2 (2009/7/13) MF70096 OK
36 91312-03008 BOLT HEX.SOCKET HEAD 16 M3X8
37 91312-04006 BOLT HEX.SOCKET HEAD 5 M4X6
38 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
39 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
40 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
41 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
42 91312-05008 BOLT HEX.SOCKET HEAD 3 M5X8
43 91312-05010 BOLT HEX.SOCKET HEAD 2 M5X10
44 92902-04200 WASHER PLAIN 4
45 92902-04600 WASHER PLAIN 2
46 92902-05200 WASHER PLAIN 3
47 92902-06200 WASHER PLAIN 2
48 95612-06100 NUT,U 2
49 98902-03006 SCREW BINDING HEAD 2
50 98902-04006 SCREW BINDING HEAD 2
51 98902-04008 SCREW BINDING HEAD 2
52 98702-04008 SCREW,FLAT HEAD (+) 18
1
27
22
2
30
5
5
27
4
12
8
13
32
34
14
25
30
33
20
21
29
7
16
16
16
7
24
19
28
31
10
34
17
6
25
30
15
15
15
11
26
26
26
25
23
25
35
18
3
28
33
20
9
24
36
1
3

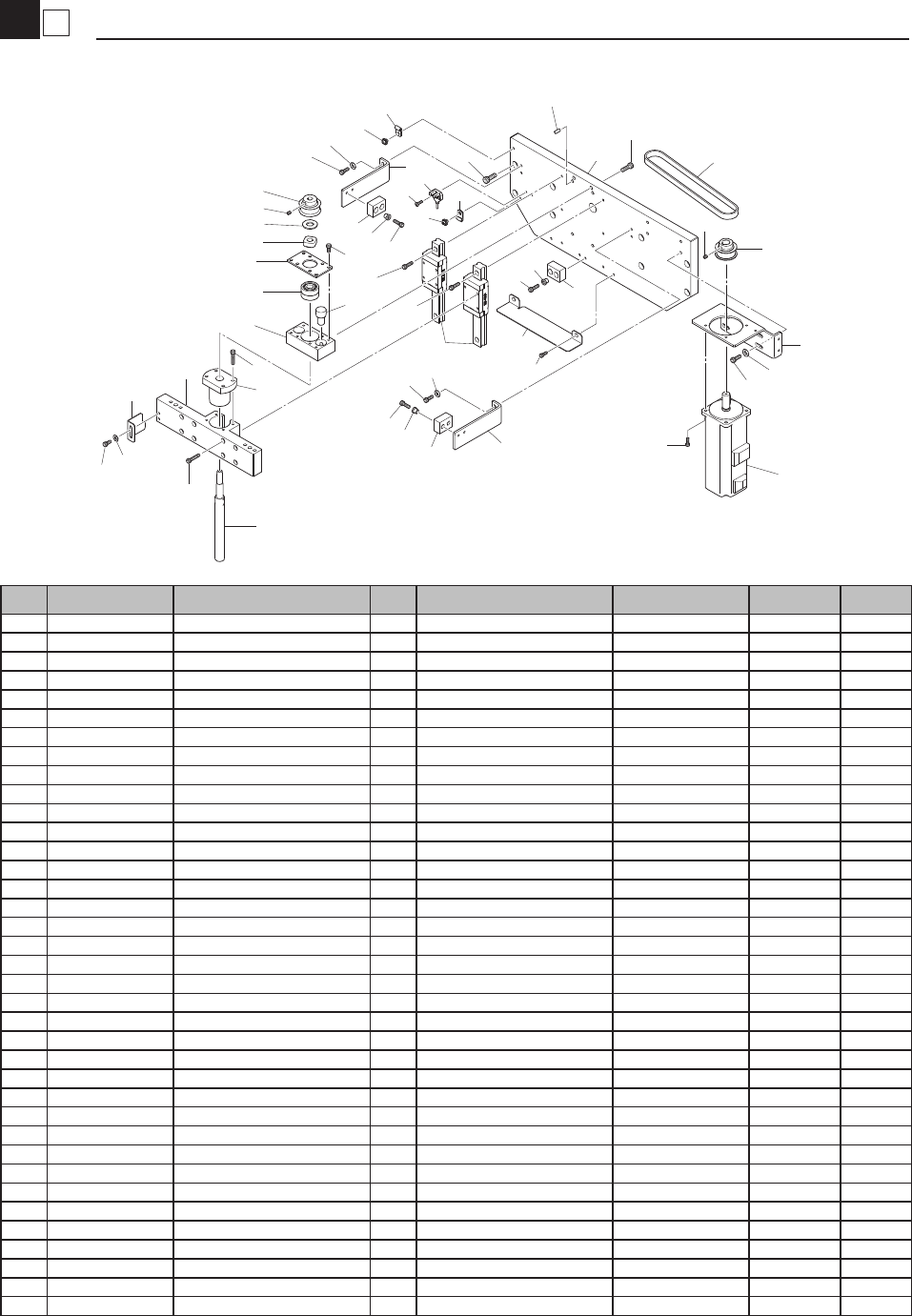

SZ Assy-1
Moving-axis
KHU-080917
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M2210-00X HOLDER,NUT 1
2 KHU-M2216-00X DOG,SZ ORG. 1
3 KHU-M2230-00X BASE SQ HEAD 1
4 KHU-M2231-00X HOLDER,BRG 1
5 KHU-M2232-00X BALL SCREW,SZ AXIS 1
6 KHU-M2233-00X BELT, SZ 1
7 KHU-M2234-00X BRKT,STOPPER 2
8 KHU-M2235-00X PLATE,BRG. 1
9 KHU-M2236-00X URETHANE 2
10 KHU-M2237-00X BRACKET,SZ MOTOR 1
11 KHU-M2238-00X SZ LM GUIDE,SET 1
12 KG2-M7141-00X BEARING (7000ADF) 1
12-1 90990-26J002 BEARING 1 (2007/12/6) MDX0068 OK
13 KG2-M9173-00X LOCK NUT 1
14 KG7-M9111-01X PULLEY 1 1
15 KGJ-M3133-00X COLLAR,DAMPER 6
16 KGY-M2218-00X LOWER DAMPER,SZ 3
17 KW3-M2212-00X PULLY, SZ MOTOR 1
18 KHU-M653A-80X SENSOR,SZ ORG 1
19 90K55-523734 AC SERVO MOTOR 1
20 $NK-2N NYLON CLIP 7
21 99480-04010 PIN PARALLEL: 4X10 2
22 91312-04006 BOLT HEX.SOCKET HEAD 2 M4X6
23 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
24 91312-04010 BOLT,HEX.SOCKET HEAD 6 M4X12
25 91312-04012 BOLT,HEX.SOCKET HEAD 8 M4X12
26 91312-04016 BOLT,HEX.SOCKET HEAD 8 M4X16
27 91312-04020 BOLT HEX.SOCKET HEAD 12 M4X20
28 91312-05016 BOLT HEX.SOCKET HEAD 6 M5X16
29 91312-06014 BOLT HEX.SOCKET HEAD 8 M6X14
30 92902-04200 WASHER PLAIN 6
31 92902-05200 WASHER PLAIN 4
32 92902-10200 WASHER,PLAIN 1
33 90990-11J001 SCREW PAN HEAD 7
34 92A08-04306 SET SCREW M4X6 3
35 98902-03010 SCREW BINDING HEAD 2
36 KHU-M2239-00X COVER GUIDE 1
