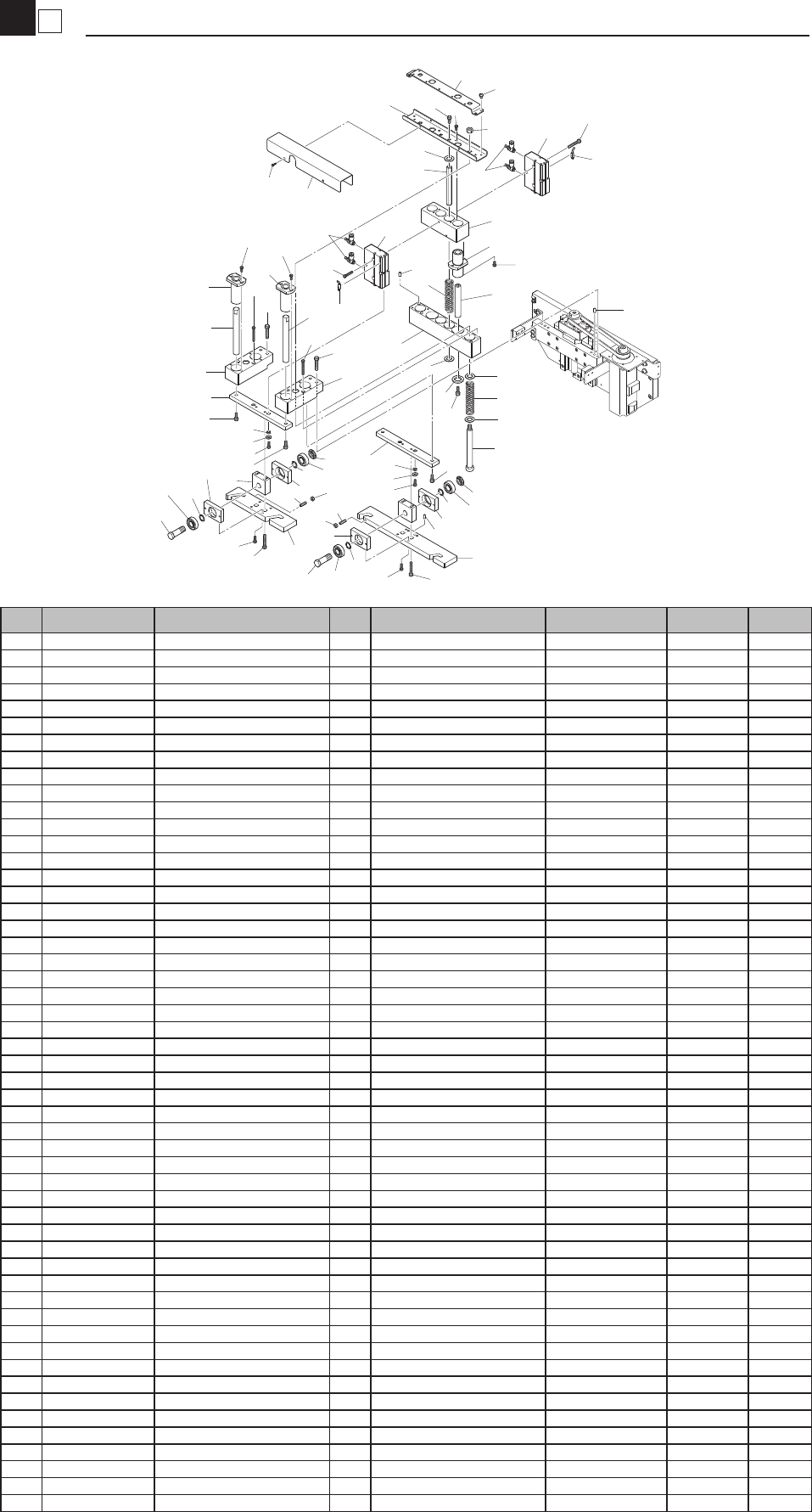

SZ Assy-2
Moving-axis
KHU-080917
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M2211-00X STAY,SHEAD 1
2 KHU-M2212-00X STAY 2,SHEAD 2
3 KHU-M2214-00X PLATE 1,LC 1
4 KHU-M2215-00X PLATE 2,LC 1
5 KHU-M2218-00X GUIDE SHAFT,3S 2
6 KHU-M2219-00X LINEAR BUSH 2
7 KHU-M2220-00X HEXAGONAL POST 2
8 KHU-M2221-00X WASHER 8
8-1 90990-28J106 WASHER,PLAIN 8 (2008/8/19) MDY0047 OK
9
KHU-M2222-00X WIRE SPRING
4
10 KHU-M2223-00X STRIPPER BOLT 2
10-1 90990-31J024 BOLT,SHOULDER 2 (2008/6/24) ME10118 OK
11 KHU-M2224-00X LINEAR BUSH 4
12 KHU-M2225-10X CYL. SQ 2
13 KHU-M2226-00X RUBBER WASHER 2
14 KHU-M2241-00X PLATE,SQ 2
15 KHU-M2242-00X PLATE R,SQG. 1
16 KHU-M2242-50X PLATE F,SQG. 1
17 KHU-M2243-00X HOLDER,FLOATING SHAF 2
18 KHU-M2244-00X GUIDE SHAFT,3S 4
19 KHU-M2245-00X BALL PLUNGER 2
20 KHU-M2246-00X WASHER 4
20-1 90990-28J088 WASHER,PLAIN 4 (2008/8/19) MDY0047 OK
21 KHU-M2247-00X WASHER 4
21-1 90990-28J100 WASHER,PLAIN 4 (2008/8/19) MDY0047 OK
22 KHU-M2248-00X HOLDER R,BRG. 2
23 KHU-M2248-50X HOLDER F,BRG. 2
24 KHU-M2250-00X PLATE STAY 1
25 KHU-M2251-00X COVER PLATE 1
26 KGY-M7156-00X SHAFT,BRG. 2
27 KGY-M7167-00X SHIM,FLOATING 4
27-1 90990-29J040 SHIM 4 (2008/1/17) MDY0074 OK
28 KHU-M653C-00X SENSOR,SQUEEGEE 1U 1
29 KHU-M653C-10X SENSOR,SQUEEGEE 2U 1
30 90185-01J00 NUT U : FU01SS(M12) 2
31 90933-01J001 BEARING 4
32 99480-04010 PIN PARALLEL: 4X10 4
33 99480-05010 PIN,PARALLEL 6
34 $SC4-M5A SPEED CONTROLLER 4
35 91312-04006 BOLT HEX.SOCKET HEAD 4 M4X6
36 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
37 91312-04012 BOLT,HEX.SOCKET HEAD 2 M4X12
38 91312-04014 BOLT HEX.SOCKET HEAD 8 M4X14
39 91312-04025 BOLT HEX.SOCKET HEAD 6 M4X25
40 91312-04035 BOLT HEX.SOCKET HEAD 4 M4X35
41 91312-05030 BOLT HEX.SOCKET HEAD 4 M5X30
42 91312-06012 BOLT HEX.SOCKET HEAD 4 M6X12
43 91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
44 91312-06035 BOLT HEX,SOCKET HEAD 4 M6X35
45 95302-05600 NUT HEXAGON 2
46 95302-08600 NUT HEXAGON 2
47 97602-04306 SCREW,PAN HEAD W/W 4
61
4
3
5
56
51
56
57
41
5
32
65
67
35
33
66
35
66
35
66
35
12
30
49
8
8
54
9
64
64
55
55
67
60
60
22
23
35
55
52
53
18
56
56
58
17
68
47
56
53
18
48
48
40
40
27
27
28
29
59
39
39
29
55
21
67
55
51
20
51
37
37
55
55
55
51
25
67
35
25
14
36
36
14
55
37
36
14
16
35
2
33
66
35
11
54
64
8
8
54
54
33
26
55
13
10
63
63
68
47
28
15
59
58
58
56
52
31
50
62
6
19
46
51
16
51
51
37
36
14
24
13
1
42
55
7
34
43
60
44
38
33
54
54
3
3
SY Assy
Moving-axis
KHU-080917
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M2602-00X FRAME L,SY AXIS 1
2 KHU-M2602-50X FRAME R,SY AXIS 1
3 KHU-M2605-00X HOLDER NUT,SY 1
4 KHU-M2606-00X HOLDER BRG.,SY 1
5 KHU-M2607-00X BALL SCREW,SY AXIS 1
6 KHU-M2609-00X DOG,SY 1
7 KHU-M2610-00X BRKT SENSOR,SYF 1
8 KHU-M2613-00X MASK PLATE 4
9 KHU-M2614-00X MASK PLATE,FL 1
10 KHU-M2614-50X MASK PLATE,FR 1
11 KHU-M2615-00X MASK PLATE,R 1
12 KHU-M2615-50X MASK PLATE,L 1
13 KHU-M2616-00X MASK PLATE ,M 2
14 KHU-M2622-00X BRKT STOPPER,SY 4
15 KHU-M2625-00X CABLE,DUCT SY 1
16 KHU-M2603-00X SY GUIDE, SET 1
17 KHU-M2630-00X FRAME, SQ HEAD 1
18 KHU-M2631-00X BRKT FRAME,SQ 2
19 KHU-M2632-00X BASE FRAME,SQL 1
20 KHU-M2632-50X BESE FRAME,SQR 1
21 KHU-M2633-00X BRKT,DUCT 1
22 KHU-M2634-00X PULL 1
23 KHU-M2635-00X FRAME,CAMERA 1
24 KHU-M2650-00X MASK CLAMPER,L 2
25 KHU-M2650-50X MASK CLAMPER,R 2
26 KHU-M2655-00X COVER HNS. 1
27 KHU-M2657-00X TAPE 1,CY DUCT 1
28 KHU-M2658-00X TAPE 2,CX DUCT 1
29 KHU-M2659-00X TAPE 3,CX DUCT 1
30 K44-M1354-00X MG.CATCH (TL-152-2) 1
31 K46-M101B-00X GROMMET (NG-79-Q) 2
32 KG2-M2604-00X SUPPORT UNIT 1
33 KGJ-M2601-01X POST,SY AXIS 4
34 KGJ-M2607-00X HOLDER,MOTER SY 1
35 KGJ-M2609-00X WASHER 32
35-1 90990-28J014 WASHER,PLAIN 32 (2007/12/7) MDX0084 OK
36 KGJ-M2612-00X DAMPER,SY 4
37 KGJ-M3133-00X COLLAR,DAMPER 4
38 KGJ-M3149-00X DISH SPRING WASHER 4
38-1 90990-37J004 WASHER,BELLEVILLE 4 (2008/4/15) ME20075 OK
39 KGY-M2471-00X BRACKET 1,CY TAPE 2
40 KGY-M2475-00X PLATE,NUT CY 2
41 KV4-M2220-00X COUPLING Z 1
42 KHU-M653A-70X SENSOR,SY ORG 1
43 90K55-741D33 AC SERVO MOTOR 1
44 99009-10400 CIRCLIP 1
45
46 99480-06020 PIN,PARALLEL 2
47 $NK-2N NYLON CLIP 46
48 91312-03005 BOLT HEX.SOCKET HEAD 4 M3X5
49 91312-03010 BOLT HEX.SOCKET HEAD 2 M3X10
50 91312-04010 BOLT HEX.SOCKET HEAD 2 M4X10
51 91312-04014 BOLT HEX.SOCKET HEAD 30 M4X14
52 91312-04020 BOLT HEX.SOCKET HEAD 16 M4X20
53 91312-05008 BOLT HEX.SOCKET HEAD 12 M5X8
54 91312-05010 BOLT HEX.SOCKET HEAD 10 M5X10
55 91312-05014 BOLT HEX.SOCKET HEAD 22 M5X14
56 91312-05020 BOLT HEX.SOCKET HEAD 30 M5X20
57 91312-05025 BOLT HEX.SOCKET HEAD 4 M5X25
58 91312-06010 BOLT HEX.SOCKET HEAD 6 M6X10
59 91312-06014 BOLT HEX.SOCKET HEAD 6 M6X14
60 91312-06025 BOLT HEX.SOCKET HEAD 8 M6X25
61 91312-06065 BOLT HEX.SOCKET HEAD 2 M6X65
62 92902-04200 WASHER PLAIN 2
63 98702-05010 SCREW FLAT HEAD 16
64 98702-05012 SCREW,FLAT HEAD 16
64-1 92B17-05016 SCREW CR0S.COUN 16 (2008/2/26) MDY0025 OK
65 98902-03010 SCREW BINDING HEAD 2
66 90112-12J045 BOLT,HEX.SOCKET HEAD 16
67 90112-12J080 BOLT,HEX.SOCKET HEAD 16
68 90990-11J001 SCREW PAN HEAD 46
21
16
22
12
18
11
2
8
3
9
5
19
10
20
14
13
7
7
17
17
11
6
21
16
22
11
18
11
17
7
1
8
3
9
4
19
10
20
14
13
7
15
17
6
4
3
SY-Mask Clamper R/L
Moving-axis
KHU-080917
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHU-M2651-50X STAY,CYL.R 2
2 KHU-M2651-00X STAY,CYL.L 4
3 KHU-M2652-00X PLATE,CYL. 4
4 KHU-M2656-10X SEAL,MASK CLAMP R 2
5 KHU-M2656-00X SEAL,MASK CLAMP L 2
6 KGJ-M2619-00X CYLINDER,MASK 4
7 KGJ-M2621-00X SHAFT 8
8 KGJ-M262B-00X WASHER 1,MASK 4
8-1 90990-28J015 WASHER,PLAIN 4 (2007/12/7) MDX0084 OK
9 KGJ-M262C-00X WASHER 2,MASK 4
9-1 90990-28J016 WASHER,PLAIN 4 (2007/12/7) MDX0084 OK
10 KGJ-M262D-00X WASHER 3,MASK 4
10-1 90990-28J017 WASHER,PLAIN 4 (2007/12/7) MDX0084 OK
11 KGY-M2621-00X SLIDE BUSH 8
12 $NK-2N NYLON CLIP 4
13 $SC4-M5MA SPEED CONTROLLER 4
14 $SL4-M5 JOINT 4
15 KHU-M653B-01X SENSOR,MASK CLAMP 2
16 90K41-000280 LABEL,ALERT 2
17 91312-04006 BOLT HEX.SOCKET HEAD 16 M3X6
18 91312-05014 BOLT HEX.SOCKET HEAD 18
19 91312-05016 BOLT HEX.SOCKET HEAD 4
20 91312-05030 BOLT HEX.SOCKET HEAD 2
21 90990-01J005 BOLT,HEX.SOCKET HEAD 8
22 90990-11J001 SCREW PAN HEAD 4
