Cable trees_20211124_080251 - 第17页
Cable trees Page 17 / 21 24.11.2021
Cable trees
Page 16 / 21 24.11.2021
Cable trees
Page 17 / 21 24.11.2021
Cable trees
Page 18 / 21 24.11.2021
Pos. Item no. Description Part marking
31 00334212-01 KABEL: STEUERPL.
PIPETTENWECHS. - VENTIL
39 00345332-01 CABLE: POWER SUPPLY PCB-
BARCODE
40 00345333-01 CABLE: DISTRIBUTOR PCB-
BARCODE - MC
00369644-02 CABLE: PCB-BARCODE
CONNECTION CABLE
03022166-01 GROUND WIRE DISTRIBUTOR PCB-
BARCODE READER
03016827-01 CABLE DISTRIBUTOR PCB BARCODE
READER
SPARE PART
00373479-01 CABLE: DISTRIBUTOR, PCB
BARCODE SCANNER
SPARE PART
00369755-01 CABLE HS50, MODULAR HEAD SPARE PART
00369860-01 CABLE S2X/FX, MODULAR
HEAD/DCA CAMERA
SPARE PART
03006808-01 CABLE HF: HEAD MOD./ DCA
CAMERA
SPARE PART
00369755-01 CABLE HS50, MODULAR HEAD SPARE PART
00369860-01 CABLE S2X/FX, MODULAR
HEAD/DCA CAMERA
SPARE PART
03006808-01 CABLE HF: HEAD MOD./ DCA
CAMERA
SPARE PART
33 00355468-02 CABLE: COMPONENTS FLAP TABLE
LEFT SIDE SWITCH S2
00334770S04 CABLE FOR SMEMA SPARE PART

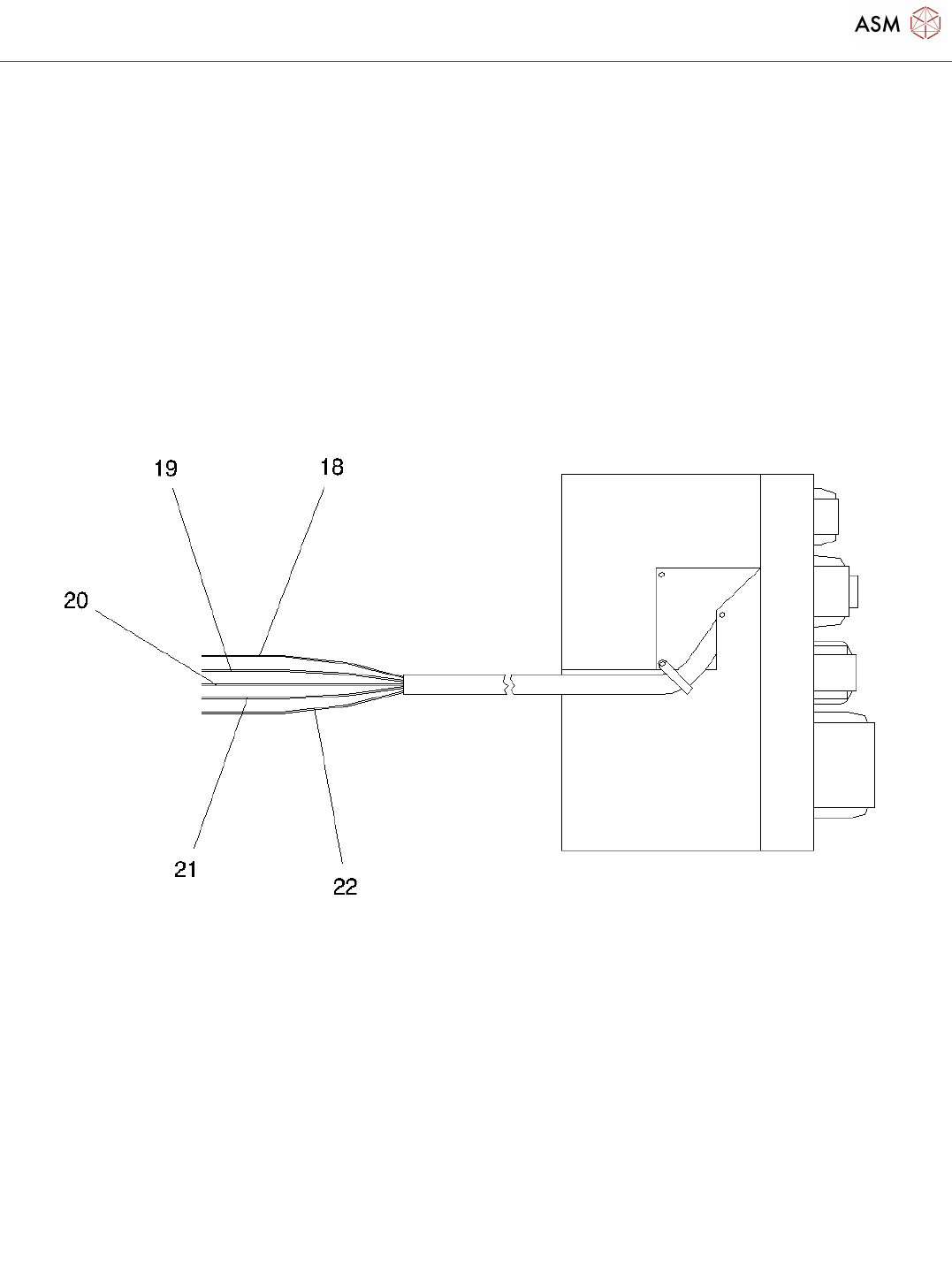

19 00356539-01 POWER CABLE: MAINS FILTER -
MAIN ERROR DISPLAY
20 00356733-01 CABLE: POWER SUPPLY - TERMINAL
BOARD
21 00356540-01 POWER CABLE: POWER SUPPLY -
TERMINAL BOARD
22 00321113-02 CABLE: POWER SUPPLY - TERMINAL
BOARD
23 00324358-02 CABLE GROUND POWER SUPPLY -
TERMINAL BOARD
22 00356539-01 POWER CABLE: MAINS FILTER -
MAIN ERROR DISPLAY
23 00356733-01 CABLE: POWER SUPPLY - TERMINAL
BOARD
24 00356540-01 POWER CABLE: POWER SUPPLY -
