MODEL TCM-X1 10J 0507-002 262 制御ボックス部 CONTROL BOX SECTION Fig. RH-1 制御基板レイアウト Control P .C.B. Layout 59 See Fig.RH-2 Key No.153 59 99 98 53 54 51 55 52 56 . 57 58 . 61 59 63 99 98 65
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
261
51 630 115 3353 BOX 1 810RG-010-051
52 630 094 7458 P.C.B,MOUNT 1 UA72*001*0000 810RG-010-052
53 630 115 3360 COVER 1 810RG-010-053
54 630 127 0937 TERMINAL 10 810RG-010-054
56 630 058 8460 ACCESSORY,WIRING 1 810RG-010-056
57 630 127 0975 ACCESSORY,WIRING 1 810RG-010-057
58 630 091 1749 BRACKET,WIRING 2 810RG-010-058
59 630 089 6480 RAIL,WIRING 1 810RG-010-059
60 630 094 7441 P.C.B,MOUNT 1 UA71*001*0000 810RG-010-060
63 630 090 1078 P.C.B,MOUNT(P.C.B.) 1 UA54*001*0000 810RG-010-063
64 630 087 7786 PROGRAM ROM 1 #CPLD CZT1E2 810RG-010-064
65 630 093 0054 ACCESSORY,P.C.B 6 810RG-010-065
66 630 093 0061 ACCESSORY,P.C.B 5 810RG-010-066
70 630 104 4323 P.C.B,MOUNT 1 UA99*001*0000 810RG-010-070
71 630 013 7637 ACCESSORY,P.C.B 2 810RG-010-071
89 630 000 7749 BOLT,HEX-SCT 2 810RG-010-089
90 411 141 6705 WASHER SPR 5 2 810RG-010-090
91 630 001 0220 WASHER 2 810RG-010-091
92 411 113 7501 SCR TRS 4X10 6 810RG-010-092
93 411 113 9109 SCR TRS 5X10 4 810RG-010-093
94 411 162 1604 SCR PAN 3X20 7 810RG-010-094
95 411 119 1909 WASHER V 3X7X0.5 12 810RG-010-095
96 411 086 4408 WASHER SPR 3 7 810RG-010-096
97 411 043 5004 SCR PAN 4X8 13 810RG-010-097
98 411 008 1706 WASHER SPR 4 13 810RG-010-098
99 411 119 2104 WASHER V 4X9X0.8 13 810RG-010-099
RG-1
MODEL TCM-X110J
0507-002
262
制御ボックス部
CONTROL BOX SECTION

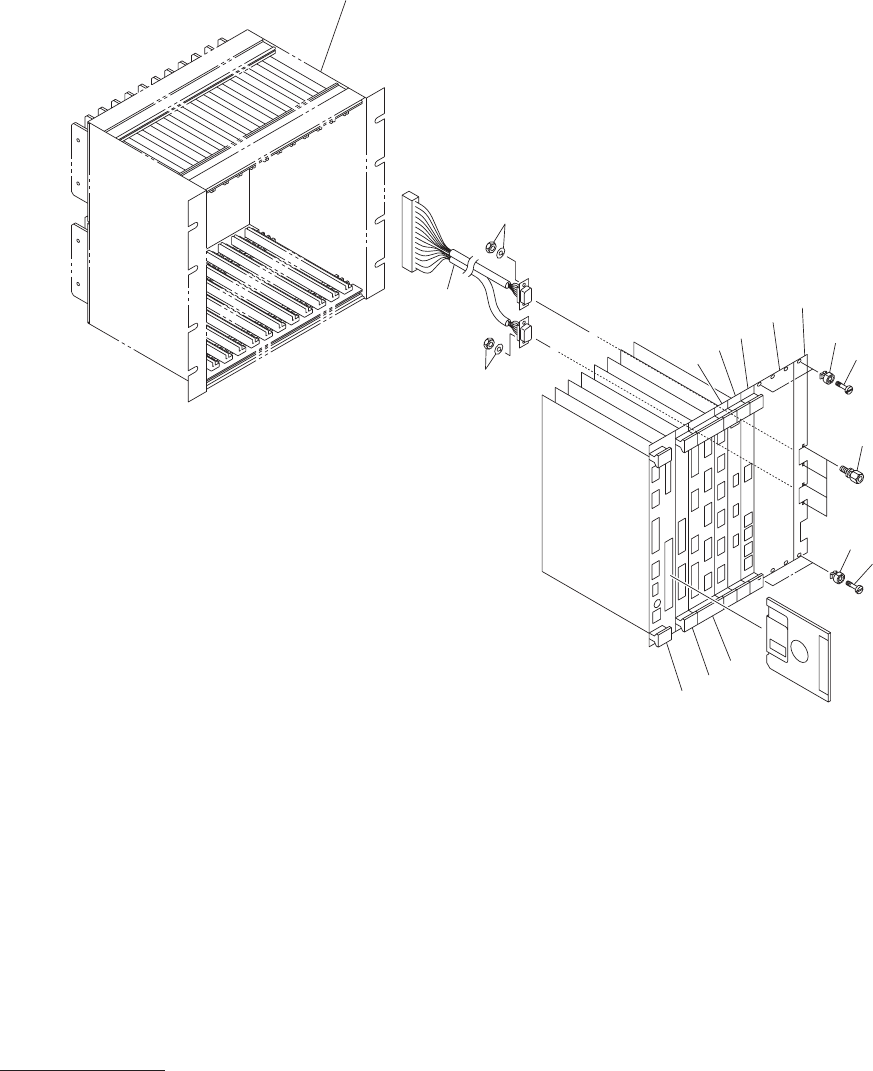

Fig. RH-1
制御基板レイアウト
Control P.C.B. Layout
59
See Fig.RH-2
Key No.153
59
99
98
53
54
51
55
52
56
.
57
58
.
61
59
63
99
98
65
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
263
51 630 085 3681 P.C.B,MOUNT 1 UA60*001*0000 810RH-010-051
52 630 131 3825 P.C.B,MOUNT 1 UB15*001*0000 810RH-010-052
53 630 121 1312 P.C.B,MOUNT 1 UA58*003*0000 810RH-010-053
54 630 090 1030 P.C.B,MOUNT(P.C.B.) 1 UA59*001*0000 810RH-010-054
55 630 090 1047 P.C.B,MOUNT(P.C.B.) 1 UA57*001*0000 810RH-010-055
56 630 131 3818 P.C.B,MOUNT 1 UB23*001*0000 810RH-010-056
57 630 120 8169 P.C.B,MOUNT 1 UA52*001*0001 810RH-010-057
58 410 142 1900 IC LE27C2001F-12Y1 1 810RH-010-058
59 630 029 5139 ACCESSORY,CONN 4 810RH-010-059
61 630 089 0624 COVER 1 810RH-010-061
63 630 093 8470 ASSY,CONNECTOR 1 XCN34,35-XCN33 810RH-010-063
65 630 129 1413 COVER 1 810RH-010-065
98 630 091 4795 ACCESSORY,P.C.B 6 810RH-010-098
99 630 091 4788 ACCESSORY,P.C.B 6 810RH-010-099
RH-1
