P-0188-003 - 第275页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10J 0507-002 273 RL-2 151 630 1 19 8330 UNIT ,DRIVER 1 APMD13(TR),APMD14(CHW), APMD19(BPC),#D3390 810RL-010-151 153 630 123 9910 UNIT ,DRIVER 1 ASMD6(X),#SGDH…
MODEL TCM-X110J
0507-002
272
機械廻り１
MISCELLANEOUS PARTS-1

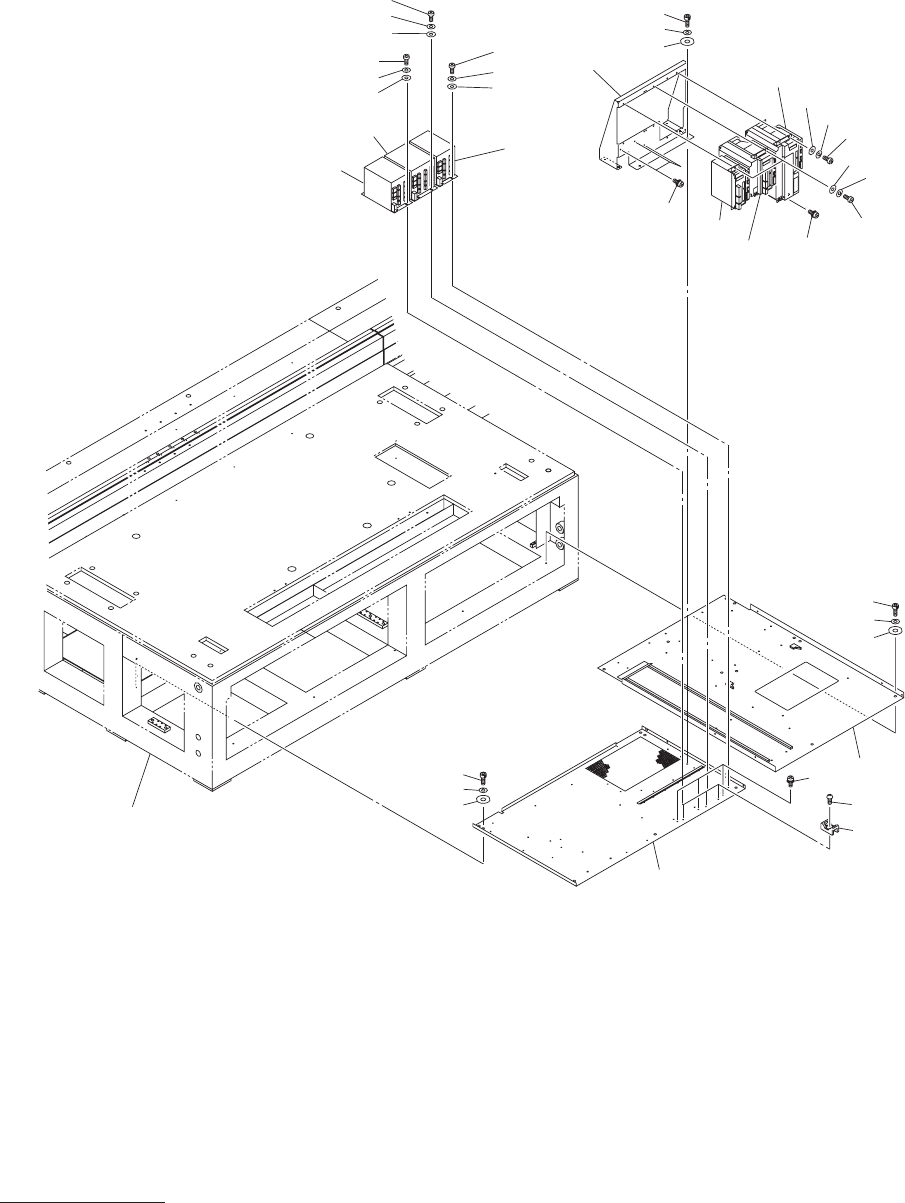

Fig. RL-2 XY
モータドライバ
XY Motor Drivers
See Fig.L-1
Key No.9
158
194
195
196
157
194
195
196
190
194
195
196
193
155
154
153
192
191
199
198
197
190
199
198
197
199
198
197
199
198
197
151
159
159
190
156
189
160
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
273
RL-2
151 630 119 8330 UNIT,DRIVER 1 APMD13(TR),APMD14(CHW),
APMD19(BPC),#D3390
810RL-010-151
153 630 123 9910 UNIT,DRIVER 1 ASMD6(X),#SGDH-30AE-RY414
810RL-010-153
154 630 124 0053 UNIT,DRIVER 1 ASMD7(Y),#SGDH-10AE-RY414
810RL-010-154
155 630 123 9941 UNIT,DRIVER 1 ASMD8(XYTR),#SGDH-A5AE-RY414
810RL-010-155
156 630 129 0904 PLATE 1 810RL-010-156
157 630 115 3407 PLATE 1 810RL-010-157
158 630 115 4442 BRACKET 1 810RL-010-158
159 630 119 8323 UNIT,DRIVER 2 APMD16(LCVW),APMD22(L2CV),
APMD17(RCVW),APMD26(R2CV),
#D3380 810RL-010-159
160 630 048 3833 MECH PARTS(MOUNTING BASES 24 810RL-010-160
189 411 113 9109 SCR TRS 5X10 24 810RL-010-189
190 411 114 7807 SCR PAN+SW+W 4X10 6 810RL-010-190
191 411 113 2803 SCR PAN 5X8 4 810RL-010-191
192 411 008 2109 WASHER SPR 5 4 810RL-010-192
193 411 088 1702 WASHER V 5X10X1 4 810RL-010-193
194 630 000 7756 BOLT,HEX-SCT 17 810RL-010-194
195 411 141 6705 WASHER SPR 5 17 810RL-010-195
196 630 001 0220 WASHER 17 810RL-010-196
197 411 042 3001 SCR PAN 4X10 12 810RL-010-197
198 411 008 1706 WASHER SPR 4 12 810RL-010-198
199 411 119 2104 WASHER V 4X9X0.8 12 810RL-010-199
MODEL TCM-X110J
0306-001
274
機械廻り１
MISCELLANEOUS PARTS-1

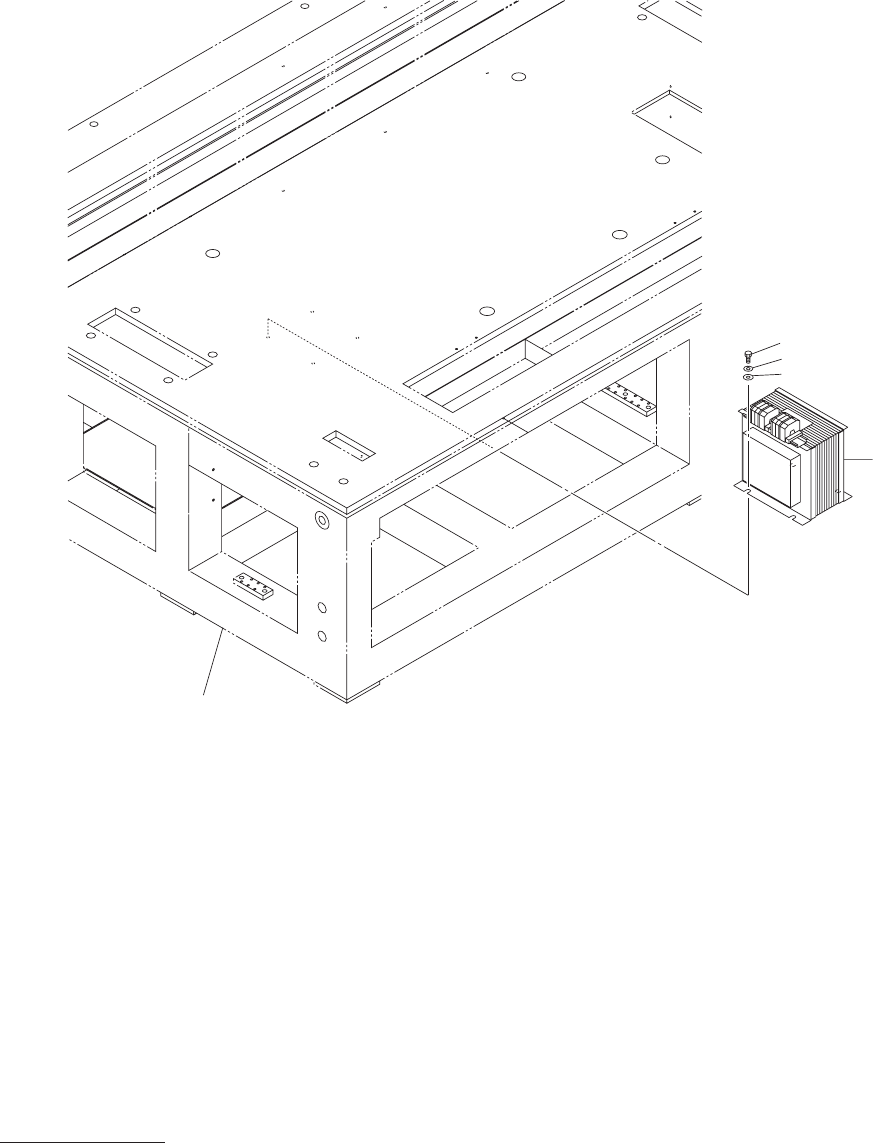

Fig. RL-3
パワートランス
Transformer Power
297
298
299
251
See Fig.L-1
Key No.9
