Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10J 0507-002 277 RL-5 451 630 097 6502 SOCKET 1 810RL-010-451 452 630 1 15 5890 BOX 1 810RL-010-452 453 630 123 9965 UNIT ,DRIVER 2 ASMD2(F1),ASMD5(F2), #SGDH…
MODEL TCM-X110J
0507-002
276
機械廻り１
MISCELLANEOUS PARTS-1

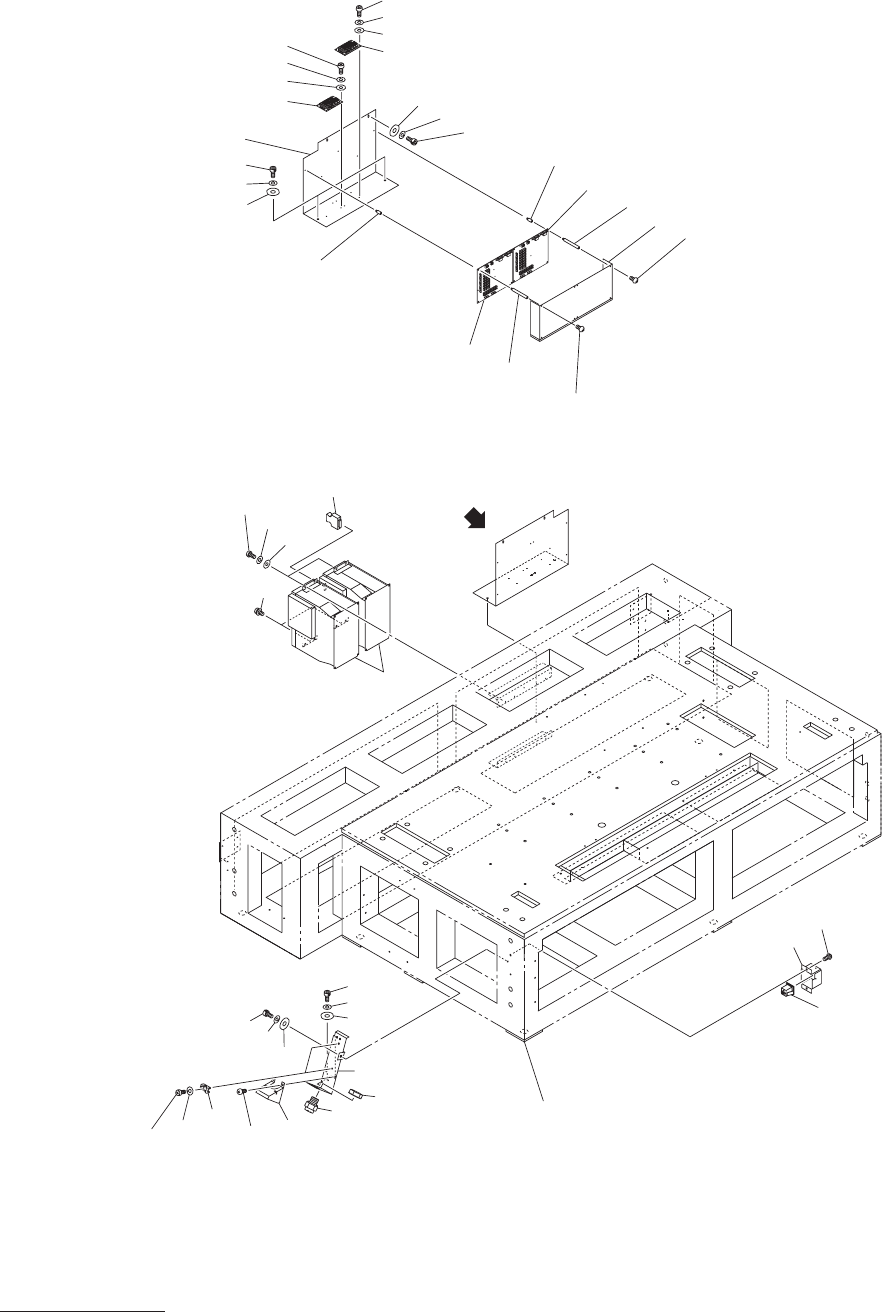

Fig. RL-5 F
軸モータドライバ
F Axis Motor Drivers
454
497
498
499
467
455
457
466
483
499
463
495
494
492
463
495
494
492
498
497
467
456
455
.
.
466
465
483
462
453
See Fig.L-1
Key No.9
485
489
490
491
486
487
488
460
459
458
499
498
497
489
490
461
484
464
451
452
496
VIEW "A"
A
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0507-002
277
RL-5
451 630 097 6502 SOCKET 1 810RL-010-451
452 630 115 5890 BOX 1 810RL-010-452
453 630 123 9965 UNIT,DRIVER 2 ASMD2(F1),ASMD5(F2),
#SGDH-30AE-RY416 810RL-010-453
454 630 120 3669 PANEL 1 810RL-010-454
455 630 090 1078 P.C.B,MOUNT(P.C.B.) 2 UA54*001*0000 810RL-010-455
456 630 087 7793 PROGRAM ROM 1 #CPLD CZR12E2 810RL-010-456
457 630 119 8392 PROGRAM ROM 1 #CPLD CZF34 810RL-010-457
458 630 087 4273 ACCESSORY,WIRING 1 810RL-010-458
459 630 111 7607 BRACKET 1 810RL-010-459
460 630 088 4425 ACCESSORY,WIRING 1 810RL-010-460
461 630 048 3833 MECH PARTS(MOUNTING BASES 2 810RL-010-461
462 630 086 8340 RESISTOR,SPECIAL 1 810RL-010-462
463 630 109 9439 P.C.B,MOUNT 2 #UB01(RELAY) 810RL-010-463
464 630 112 2663 COVER 1 810RL-010-464
465 630 124 1432 COVER 1 810RL-010-465
466 630 100 6055 ACCESSORY,P.C.B 8 810RL-010-466
467 630 102 7487 SPACER 8 810RL-010-467
483 411 050 5004 SCR TRS 3X6 8 810RL-010-483
484 411 140 8007 SCR TRS 5X6 2 810RL-010-484
485 411 114 7807 SCR PAN+SW+W 4X10 2 810RL-010-485
486 411 140 3804 BOLT HEX-SCT 4X10 2 810RL-010-486
487 411 141 2905 WASHER SPR 4 2 810RL-010-487
488 630 001 0213 WASHER 2 810RL-010-488
489 411 113 2803 SCR PAN 5X8 10 810RL-010-489
490 411 008 2109 WASHER SPR 5 10 810RL-010-490
491 411 088 1702 WASHER V 5X10X1 8 810RL-010-491
492 411 040 6202 SCR PAN 3X10 8 810RL-010-492
494 411 119 1909 WASHER V 3X7X0.5 8 810RL-010-494
495 411 086 4408 WASHER SPR 3 8 810RL-010-495
496 411 113 9109 SCR TRS 5X10 2 810RL-010-496
497 630 000 7756 BOLT,HEX-SCT 5 810RL-010-497
498 411 141 6705 WASHER SPR 5 5 810RL-010-498
499 630 001 0220 WASHER 5 810RL-010-499
MODEL TCM-X110J
0306-001
278
機械廻り１
MISCELLANEOUS PARTS-1

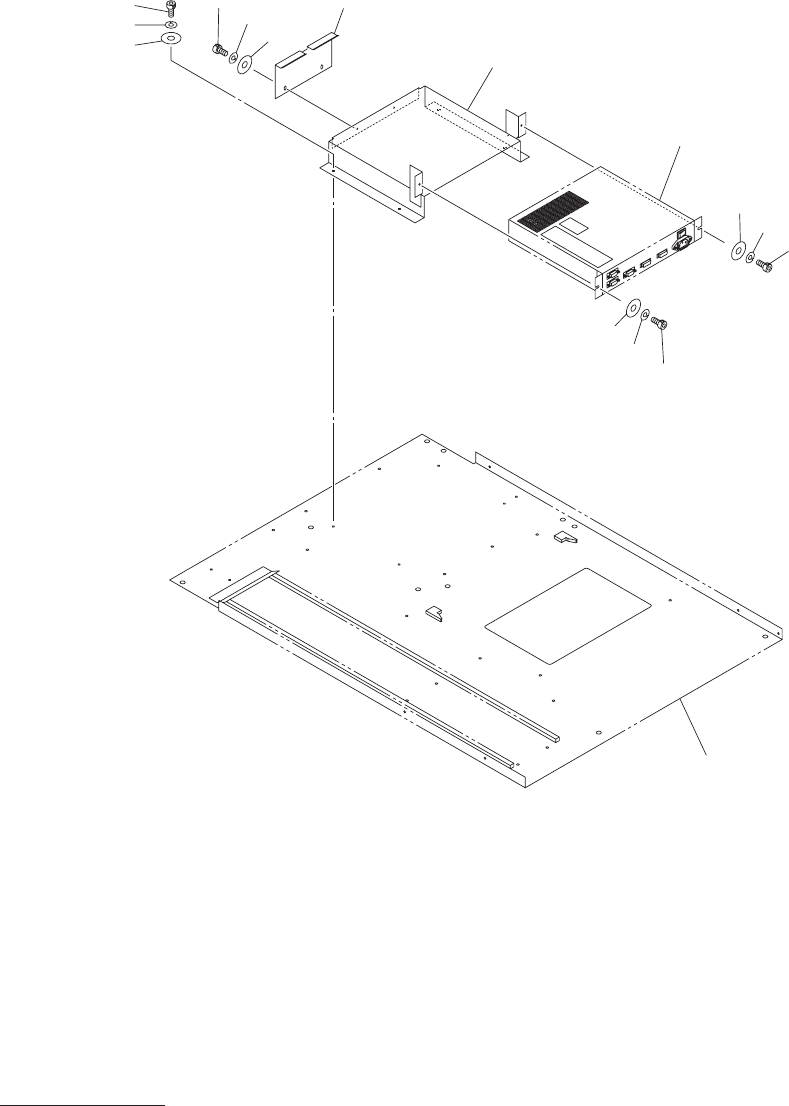

Fig. RL-6
ディスプレイコントローラ取付
Display Controller Mounting
See Fig RL-2
Key No.157
594
595
596
598
599
597
552
551
594
595
596
594
595
596
See Fig.MA-1
0
Key No.902-0
5
