MODEL TCM-X110J
0306-001
280
機械廻り１
MISCELLANEOUS PARTS-1

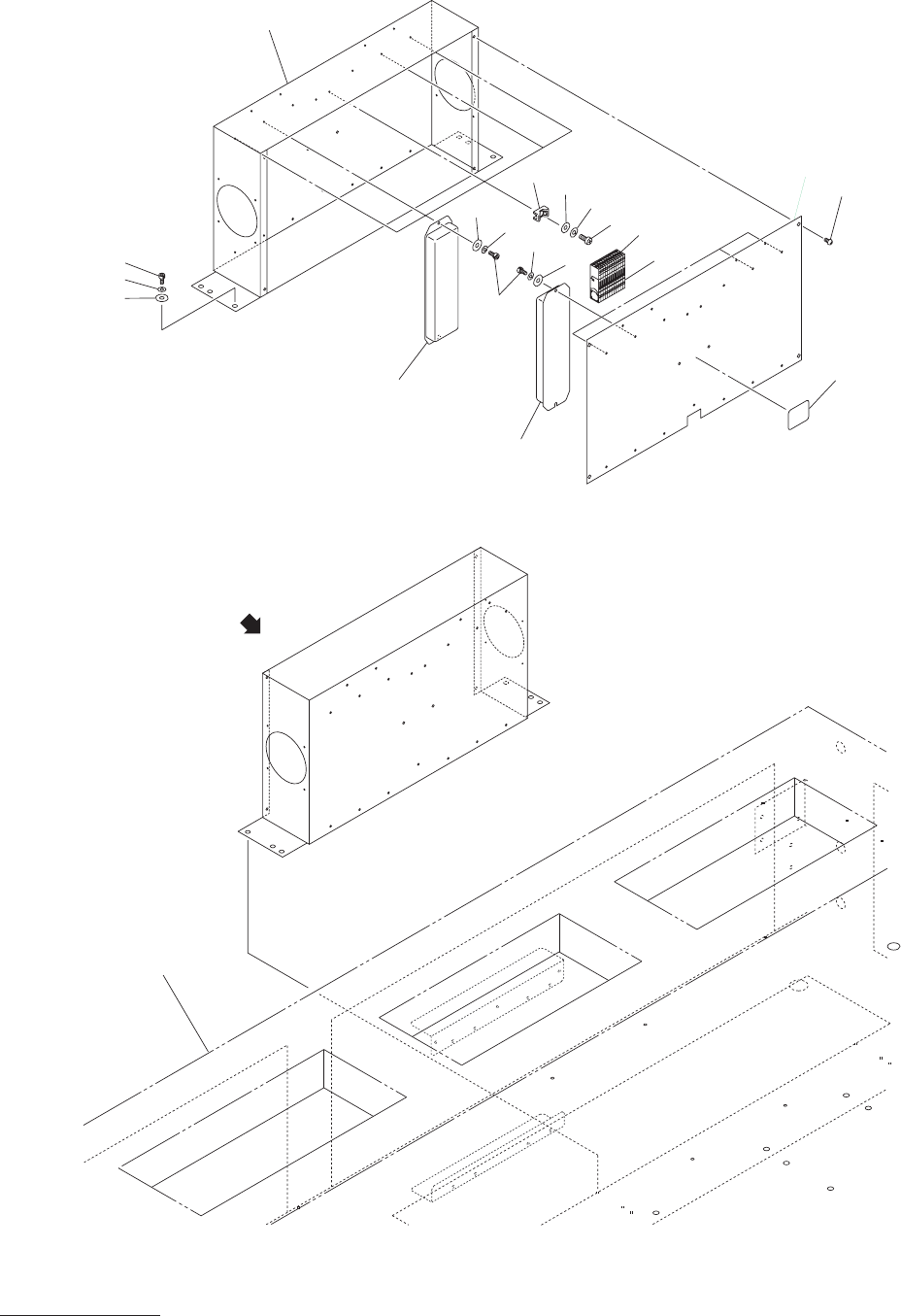

Fig. RL-7 F
軸回生抵抗
F Axis Regenerative Resistance
657
655
.
665
652
654
663
662
661
656
660
659
658
651
659
660
651
666
667
See Fig.L-1
Key No.9
664
668
653
VIEW "A"
A
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
281
RL-7
651 630 094 7250 RESISTOR,SPECIAL 8 810RL-010-651
652 630 114 9950 BOX 1 810RL-010-652
653 630 114 4269 COVER 1 810RL-010-653
654 630 048 3833 MECH PARTS(MOUNTING BASES 6 810RL-010-654
655 630 116 3932 CONNECTOR 2 810RL-010-655
656 630 116 3956 CONNECTOR 2 810RL-010-656
657 630 116 3963 ACCESSORY,CONN 16 810RL-010-657
658 630 000 7602 BOLT,HEX-SCT 16 810RL-010-658
659 411 141 2905 WASHER SPR 4 16 810RL-010-659
660 411 141 4008 WASHER V 4X9X0.8 16 810RL-010-660
661 411 113 1400 SCR PAN 4X6 6 810RL-010-661
662 411 008 1706 WASHER SPR 4 6 810RL-010-662
663 411 119 2104 WASHER V 4X9X0.8 6 810RL-010-663
664 411 140 8007 SCR TRS 5X6 4 810RL-010-664
665 630 000 7756 BOLT,HEX-SCT 4 810RL-010-665
666 411 141 6705 WASHER SPR 5 4 810RL-010-666
667 630 001 0220 WASHER 4 810RL-010-667
668 630 100 1029 NAME PLATE,NOTICE 1 810RL-010-668
MODEL TCM-X110J
0507-002
282
機械廻り２
MISCELLANEOUS PARTS-2
Fig. RM-1
H
、
CZ
、
MZ
軸モータドライバ
H,CZ,MZ Axis Motor Driver
67
72
86
See Fig.L-1
Key No.1
2
86
54
92
91
90
70
82
96
98
93
52
51
99
97
98
99
95
98
99
69
96
98
99
87
88
89
87
56
88
89
57
55
87
88
89
63
61
65
86
66
85
84
61
62
59
64
66
85
60
83
71
94
