MODEL TCM-X1 10J 0306-001 300 Fig.ZQ-1 4797L TCM-X200 TCM-X300 4797A 1 マスター治具 MASTER JIG Fig. ZQ-1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
299
751 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN60(X)-XCN61(Y) 810SB-010-751
752 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN62(Y)-XCN69(XYTR)
810SB-010-752
753 630 121 7222 ASSY,CORD(MECH-LINK 4.5M) 1 XCN70(XYTR)-XCN63(H)
810SB-010-753
754 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN64(H)-XCN65(CZ) 810SB-010-754
755 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN66(CZ)-XCN67(MZ)
810SB-010-755
756 630 121 7208 ASSY,CORD(MECH-LINK 0.5M) 1 XCN52(F1)-XCN53(F2)
810SB-010-756
759 630 121 7215 ASSY,CORD(MECH-LINK 3.0M) 1 XCN59(X)-XCN22(UA57)
810SB-010-759
760 630 121 7215 ASSY,CORD(MECH-LINK 3.0M) 1 XCN51(F1)-XCN23(UA57)
810SB-010-760
767 630 092 4145 ASSY,CORD(X200SB102) 1 XCN20(UA51)-X320(T1)
810SB-010-767
768 630 092 4169 ASSY,CORD(X200SB104) 1 XCN12- 810SB-010-768
769 630 092 4176 ASSY,CORD(X200SB105) 1 XCN13- 810SB-010-769
770 630 119 7906 ASSY,CORD(X210SB185) 1 XCN34- 810SB-010-770
774 630 092 4237 ASSY,CORD(X200SB110) 1 810SB-010-774
SB-8
MODEL TCM-X110J
0306-001
300
Fig.ZQ-1
4797L
TCM-X200
TCM-X300
4797A
1

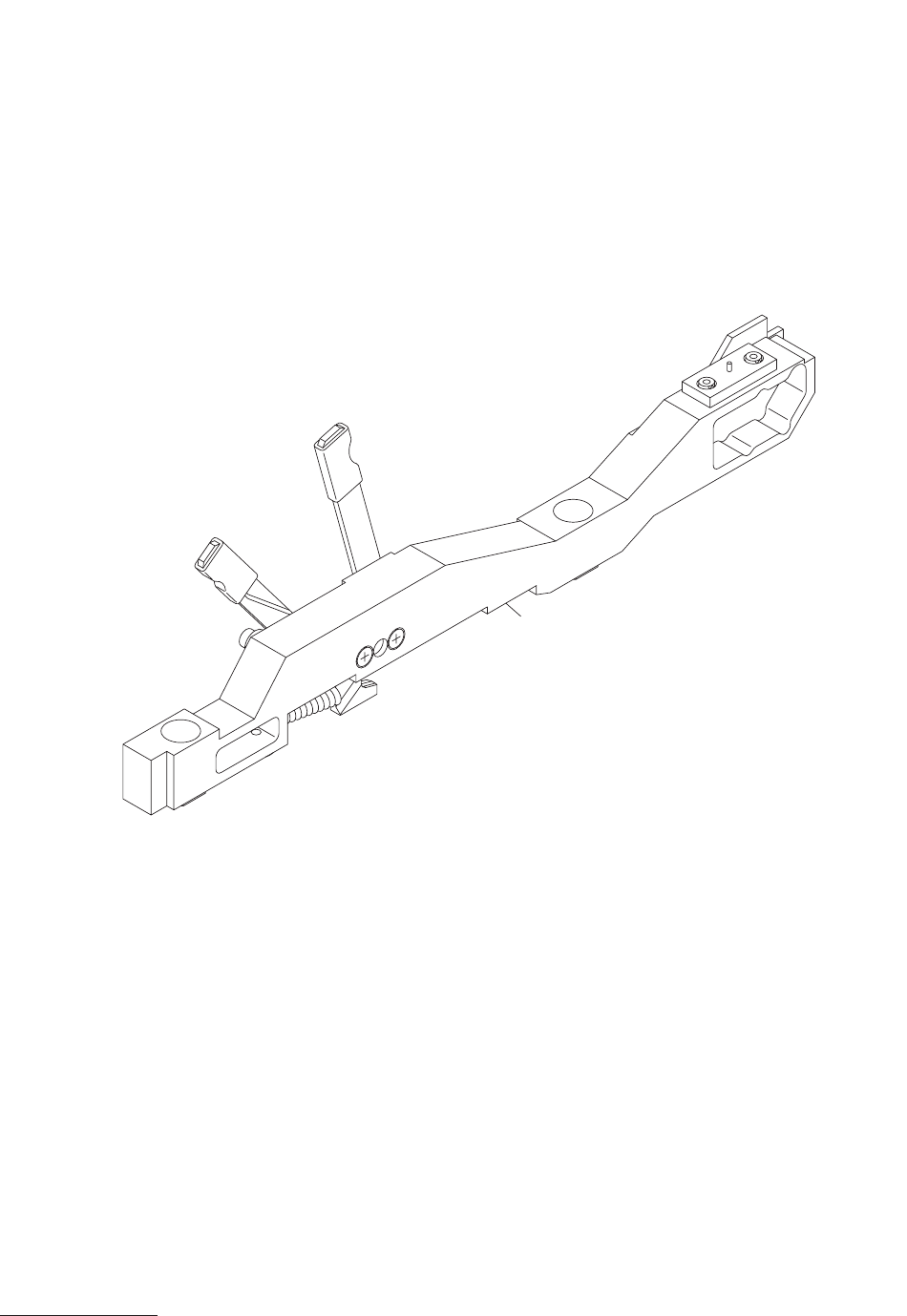

マスター治具
MASTER JIG
Fig. ZQ-1
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110J
0306-001
301
1 630 110 4041 ASSY,FRAME(MASTER JIG) 1 XCN184-XCN8 810ZQ-010-001
ZQ-1
