2.4.4.6.

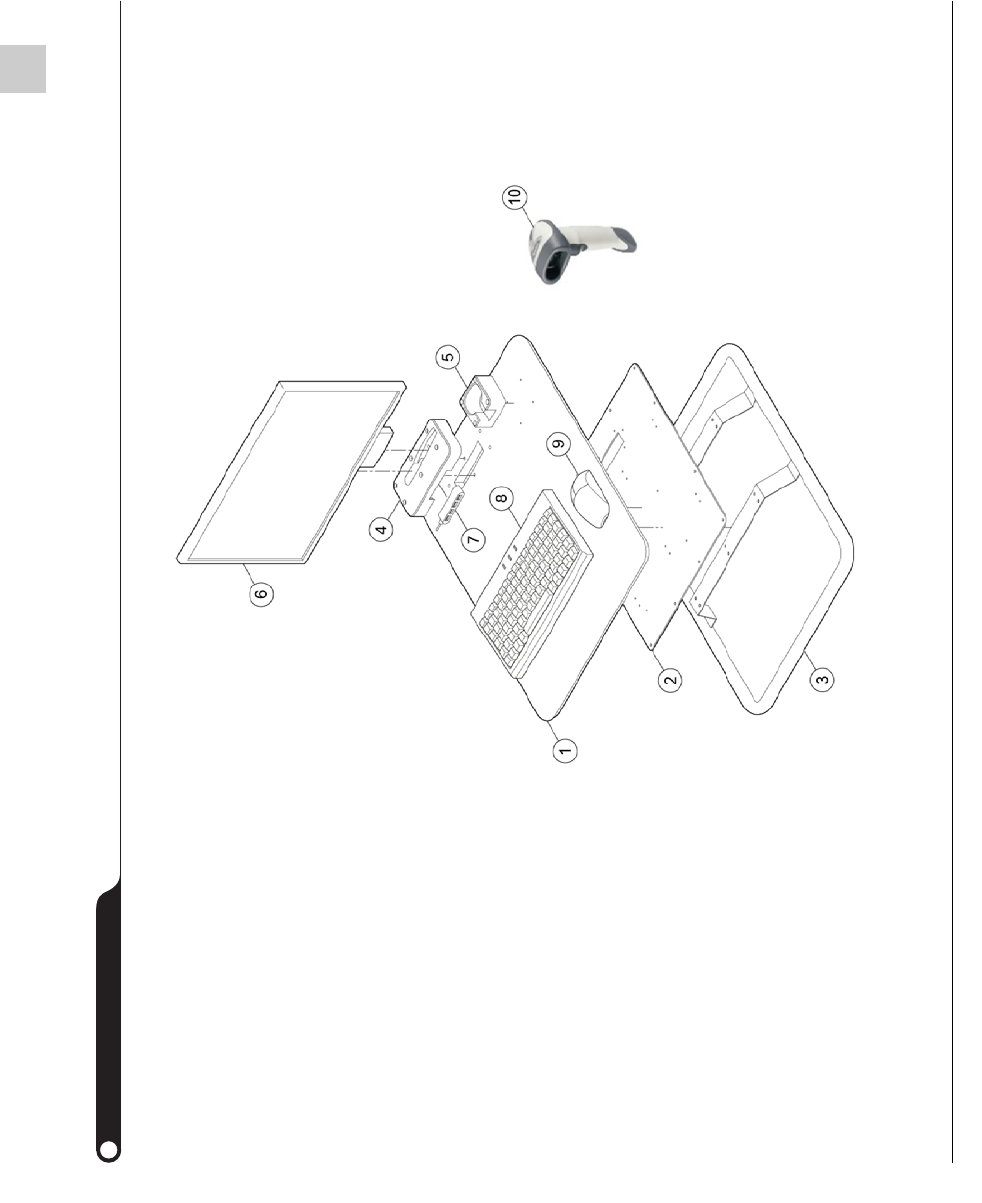

Part Panel 分解图及零件表

2-59

附加装置

No. Part No. Part Name Q'ty

Service

Material

Remarks

1 FC15-005419A COVER-PART PANEL COVER_SM1-FWS-025 1

2 FC30-005154A PLATE-PART PANEL_SM1-FWS-204;FLMS 1

3 EP05-001033A CONCENT-FLMS_SM1-FWS-062;FLMS,2 1 AC220V2P

4 EP06-002798A UPS/SMPS-SMPS1_RSP500-24 4

5 FC09-008078A BRACKET-SMPS BRK1_SM1-FWS-203;FLMS 4

6 FC07-003939A BLOCK-GND BLOCK_SM1-FWS-206;FLMS 1

7 EP03-001057A DUCT,CABLE-CABLE DUCT_30X40;FLMS 5

8 EP21-001032A BLOCK,TERMINAL-TERMINAL

BLOCK_KH6010;FLM

9 FC09-008079A BRACKET-PANEL1_BRK_SM1-FWS-205;FLMS 1

10 FC30-005155A PLATE-PANEL1_SM1-FWS-207 1

11 EP20-001032A SWITCH,ETC-S-S/W1_8216;FLMS 4
