SP-020-003e - 第23页
G -S015-02 1012-003 21 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 307 6301364124 COVER 1→0 829G--010-642 21 1A9716 321 6301494487 BRACKET 1 829G-A010020-A051 21 1FB265 322 6301300054 BRACKET 1 829G-A010020…
G -S015-02
0909-002
20
327
321
322
323
324
324
EXCHANGE
REAR PANEL
331
.
333
335
.
332
.
334
336
.
307
操作パネル部
A OPERATING PANEL SECTION
A
Fig. FE-4
パネル
Panel
G -S015-02
1012-003
21
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
307 6301364124 COVER 1→0 829G--010-642 211A9716
321 6301494487 BRACKET 1
829G-A010020-A051
211FB265
322 6301300054 BRACKET 1
829G-A010020-A052
211F8792
323 6301409870 EQUIPMENT 1 -B79
829G-A010020-A061
4U260289
324 6301300184 MECH PARTS(RUBBER DAMPER) 1
829G-A010020-A076
226J1972
327 6301367712 COVER 1
829G-A010020-A642
211A9766
331 6300007619 BOLT,HEX-SCT 6 M4X8 221A0016
332
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
333
4111412905 WASHER SPR 4 6 SW4 221H0284
334
4111416705 WASHER SPR 5 2 SW5 221H0287
335
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
336
4111414107 WASHER V 5X10X1 2 FW5 221H0318
FE-4
G -S015-02
0909-002
22

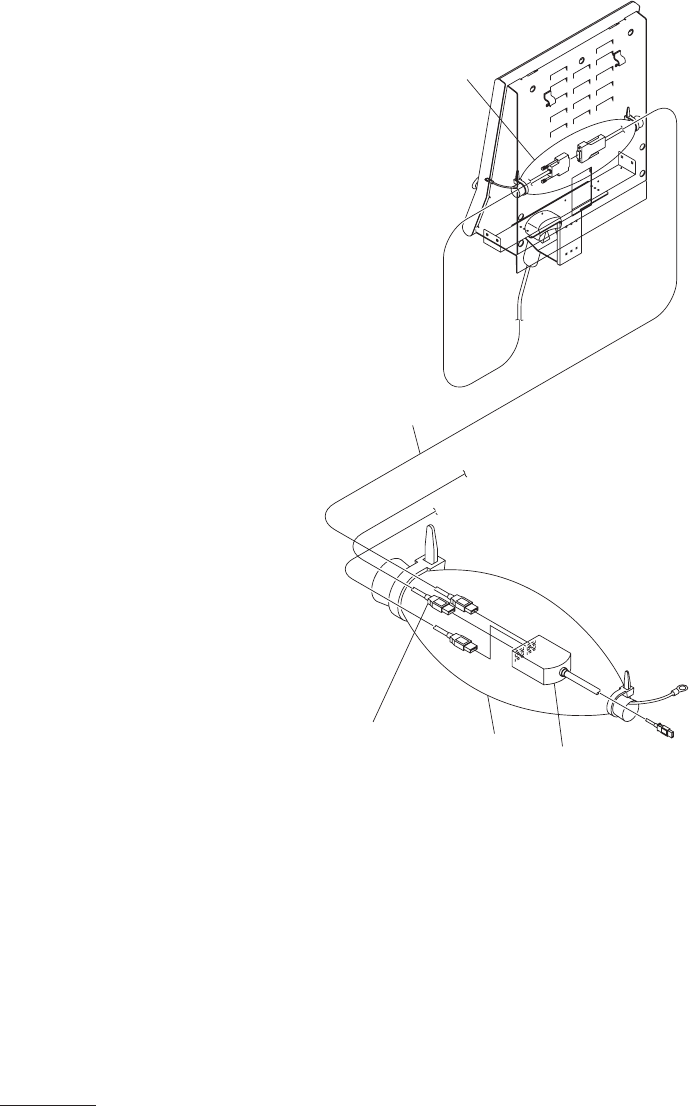

473
See Fig BS-5
Key No.458
478
479
REAR PANEL
489
.
472
操作パネル部
A OPERATING PANEL SECTION
A
Fig. FE-5
ケーブル
Cable
