SP-020-003e - 第33页
G -S015-03 1012-003 31 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 406 6301255798 PLA TE 1→0 803G--210-306 21 1D9464 407 6301255781 BRACKET 1→0 803G--210-307 21 1F8188 431 6301494487 BRACKET 2 803G-A210070-…
G -S015-03
0909-002
30
431
432
431
433
REAR P ANE L
433
441
.
443
445
.
441
.
443
445
.
442
.
444
446
.

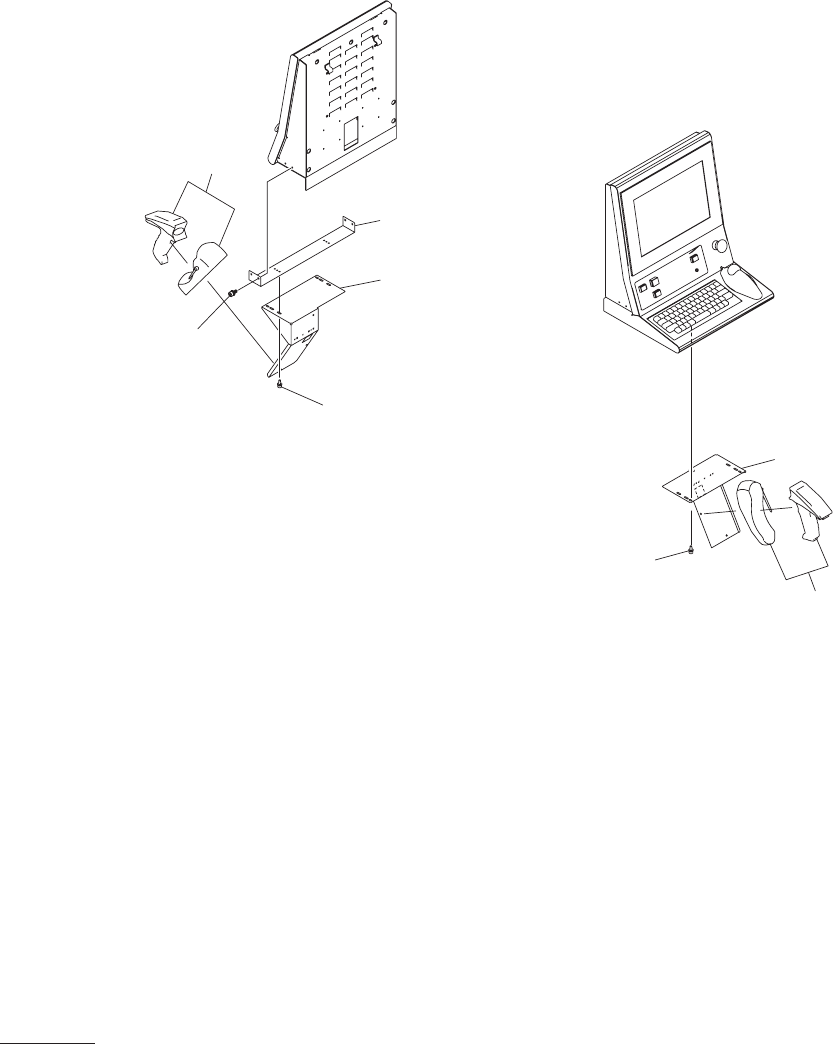

FRONT PANEL
カバー部
COVER SECTION
Fig. G-5
パネル
Panel
G -S015-03
1012-003
31
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
406 6301255798 PLATE 1→0 803G--210-306 211D9464
407 6301255781 BRACKET 1→0 803G--210-307 211F8188
431 6301494487 BRACKET 2
803G-A210070-A051
211FB265
432 6301300054 BRACKET 1
803G-A210070-A052
211F8792
433 6301409870 EQUIPMENT 2 -B79
803G-A210070-A061
4U260289
434 6301300184 MECH PARTS(RUBBER DAMPER) 1
803G-A210070-A076
226J1972
436 6301327839 PLATE 1
803G-A210070-306
211DA139
437 6301429007 BRACKET 1
803G-A210070-307
211FA455
441 6300007619 BOLT,HEX-SCT 12 M4X8 221A0016
442
6300007732 BOLT,HEX-SCT 4 M5X8 221A0028
443
4111412905 WASHER SPR 4 12 SW4 221H0284
444
4111416705 WASHER SPR 5 4 SW5 221H0287
445
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
446
4111414107 WASHER V 5X10X1 4 FW5 221H0318
G-5
G -S015-03
0909-002
32
831
832
832
831
831
831
832
832
カバー部
COVER SECTION
Fig. G-9
ラベル、銘板
Label,Name Plate
