P-254-006e - 第90页

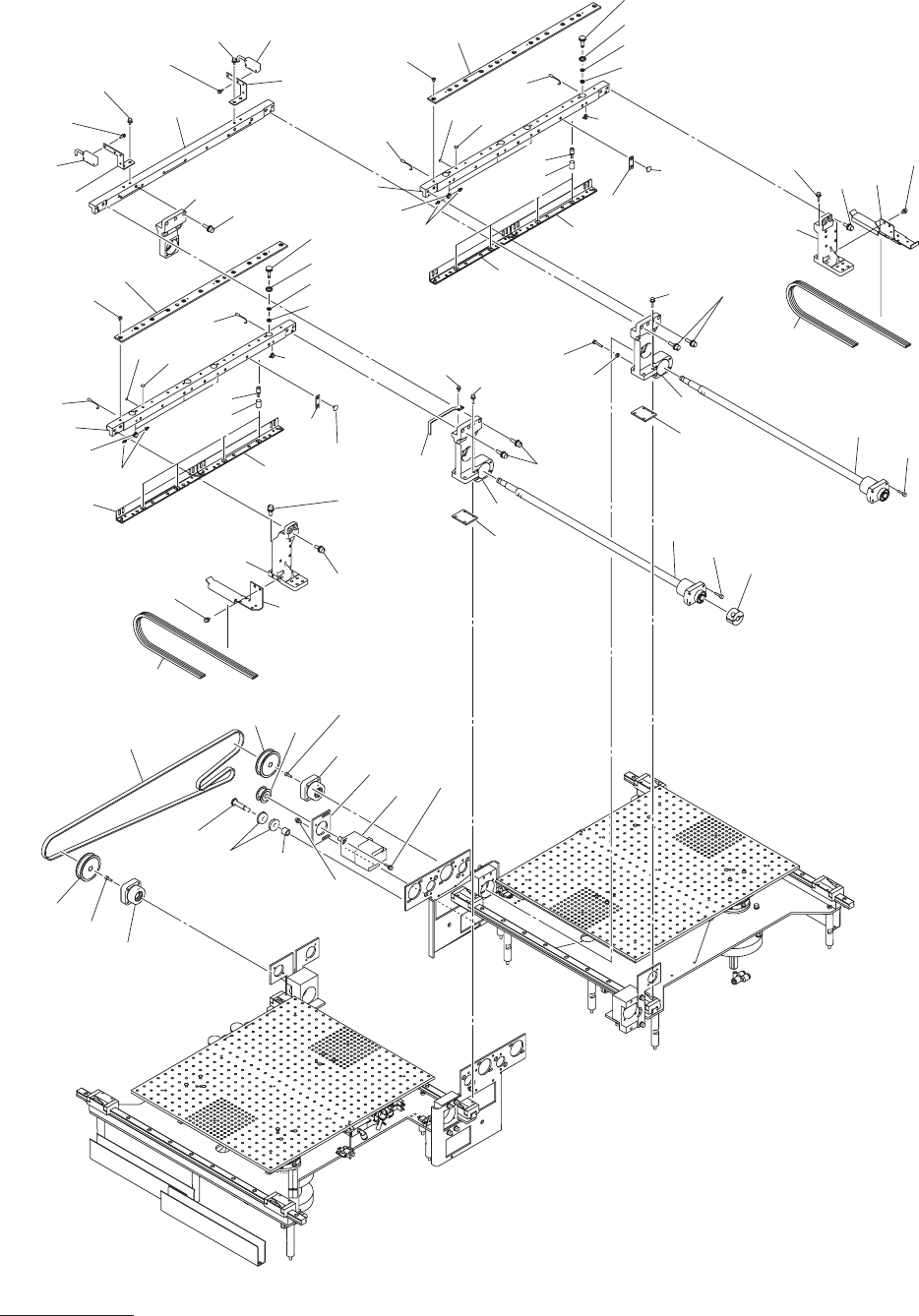

MODEL GXH-1S 0701-002 88 コンベア部 NA,NB,NC CONVEYOR SECTION NA,NB,NC Fig. N-8 シュート１ Chute 1 754 . 767 . 772 754 . 767 . 772 759 . 768 . 773 758 . 767 . 772 760 . 768 . 773 751 . 766 . 771 758 . 767 . 772 752 . 766 . 771 753…
MODEL GXH-1S
1012-006
87
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-7
604 6301440583 BRACKET 2 803N--210-004 211FA602
606 6301233031 COLLAR 8 803N--210-006 216A11
11
607 6301470818 COLLAR 4 803N--210-007 216A1392
608
6301466057 PLATE 2 803N--210-008 211DB696
609 6301470825 PLATE 2 803N--210-009 210DB751
610
6301463469 ROD 2 803N--210-010 216C0867
614
6301462738 COLLAR 2 803N--210-014 216A1387
616
6301626208 BALL SCREW 6 803N--210-016 223B0423
619
6301532097 PULLEY,TIMING 2 803N--210-019 223Q0705
620
6301498089 PULLEY,TIMING 6 803N--210-020 223Q0681
621
6301440033 BELT,TIMING 2 803N--210-021 223L0318
623
6301002729 MOTOR,AC-SERVO 2 -M53 803N--210-023 4M150130
625 6300969009 BEARING,RADIAL 8 803N--210-025 222D0343
634
6301442617 BRACKET 2 803N--210-604 211F
A627
640 6301454443 COLLAR 2 803N--210-610 216A1381
641
6301454450 COLLAR 2 803N--210-611 216A1382
642 6301454467 COLLAR 2 803N--210-612 216A1383
643
6301454481 PLATE 6 803N--210-613 211DB575
651 6300007602 BOLT,HEX-SCT 18 M4X6 221A0015
652
6300007619 BOLT,HEX-SCT 6 M4X8 221A0016
653
6300007626 BOLT,HEX-SCT 16 M4X10 221A0017
654
6300007640 BOLT,HEX-SCT 36 M4X14 221A0019
655
6300007671 BOLT,HEX-SCT 24 M4X25 221A0022
656
6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
658
4110511708 SCR TRS 4X6 18 M4X6 TRS 221E0532
661 4111412905 WASHER SPR 4 76 SW4 221H0284
662
4111416705 WASHER SPR 5 4 SW5 221H0287
666
4111414008 WASHER V 4X9X0.8 76 FW4 221H0315
667
4111414107 WASHER V 5X10X1 4 FW5 221H0318
676
4111409905 NUT HEX 3 2 M3 221F0079
677
6300008944 SET SCREW 4 M5X6 SET 221C0007
MODEL GXH-1S
0701-002
88
コンベア部
NA,NB,NC CONVEYOR SECTION NA,NB,NC
Fig. N-8
シュート１
Chute 1
754
.
767
.
772
754
.
767
.
772
759
.
768
.
773
758
.
767
.
772
760
.
768
.
773
751
.
766
.
771
758
.
767
.
772
752
.
766
.
771
753
.
767
.
772
752
.
766
.
771
753
.
767
.
772
758
.
767
.
772
760
.
768
.
773
759
.
768
.
773
758
.
767
.
772
734
732
763
762
738
739
701
703
738
707
714
715
716
765
710
721
711
712
727
718
717
712
720
719
733
737
750
724
755
749
740
741
745
735
744
749
755
750
746
731
702
704
760
.
768
.
773
757
748
725
757
748
709
705
705
722
729
707
714
715
716
765
710
721
711
712
727
718
717
712
720
719
704
709
705
705
729
742
753
.
767
.
772
723
723
722
743
753
.
767
.
772
MODEL GXH-1S
1012-005
89
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-8
N-8 701 6301273662 BLOCK 1 803N--210-301 211G3537
702 6301466385 BLOCK 1 803N--210-302 211G4613
703 6301273686 BRACKET 1 803N--210-303 211F8437
704 6301315669 BLOCK 2 803N--210-104 211G3758
705 6301232652 PLATE 4 803N--210-105 211D9252
707 6301315690 SHAFT 8 803N--210-107 213A1126
709 6301233253 SPRING,COMP 8 803N--210-109 222M1297
710
6301242101 BRACKET 1 803N--210-110 21
1F8057
711 6301236933 GUIDE,SLIDE 8 803N--210-111
222C0106
712 6301237022 SENSOR,PELEC 4 -B4201,-B4202 803N--210-112
23G00241
714 6300701838 SEAL 8 803N--210-114 226A0124
715 6300033212 SEAL 8 803N--210-115 226A0003
716 6300701845 SEAL 8 803N--210-116 226A0125
717 6301236889 CAP 8 803N--210-117 217A0128
718 6301241371 BOLT,HEX-SCT(BUTTON HEAD) 22 803N--210-118 221A0319
719
6300484656 PIPE FITTINGS 6 803N--210-119 225F0261
720 6300769029 PIPE FITTINGS 3 803N--210-120 225F0330
721
6300465556 PIPE FITTINGS 1 803N--210-121 225F0253
722
6301274478 TUBE 1 803N--210-232 225G0275
723
6301444949 SPACER 2 803N--210-243 211E0980
724 6301236445 PULLEY,TIMING 1 803N--210-304 223Q0540
725
6301246352 COLLAR 1 803N--210-235 216A1127
727 6301315539 PLATE 2 803N--210-102 211DA002
729 6301614175 SPACER 10 803N--210-439 211E1
117
731 6301315928 BLOCK 1 803N--210-201 211G3765
732 6301444994 BLOCK 1 803N--210-202 211G4526
733 6301440798 BLOCK 1 803N--210-203 211G451
1
734 6301446714 BLOCK 1 803N--210-204 211G4537
735 6300969009 BEARING,RADIAL 2 803N--210-025 222D0343
737
6300987706 BELT,TIMING 1 803BX-210-307 223L0209
738
6301237145 SENSOR,PELEC 2 -B4401,-B4402 803N--210-308 23G00243
739 6301274034 BRACKET 1 803N--210-309 211F8443
740 6301470856 BRACKET 1 803N--210-210 211FB013
741 6301241340 MOTOR,AC-SERVO 1 -M56 803N--210-231 4M150196
742 6301274003 BRACKET 1 803N--210-212 211F8442
743 6301465722 BRACKET 1 803N--210-213 211F
A951
744 6301440811 SHAFT 1 803N--210-214 213A1300
745
6301440842 COLLAR 1 803N--210-215 216A1357
746
6301441801 BRACKET 1 803N--210-216 211F
A617
748 6301236599 BALL SCREW 2 803N--210-218 223B0350
749
6301469089 BEARING,UNIT 2 803N--210-219 222F0104
750
6301236452 PULLEY,TIMING 2 803N--210-305 223Q0541
751
6300007510 BOLT,HEX-SCT 2 M3X8 221A0006
752
6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
753
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
754
6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
755
6300007633 BOLT,HEX-SCT 8 M4X12 221A0018
757
6300007657 BOLT,HEX-SCT 8 M4X16 221A0020
758
6300007657 BOLT,HEX-SCT 15 M4X16 221A0020
759
6300007886 BOLT,HEX-SCT 2 M6X16 221A0043
