MODEL GXH-1S 1012-003 133 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE QA-1 4Unit/1Machine 1 6301607023 BASE 1 803QA-210-001 210A2941 3 6301573878 BLOCK 5 803QA-210-003 21 1G5359 4 6301376561 BLOCK 1 803QA-2…
MODEL GXH-1S
0709-001
132
フィーダベース部
FEEDER BASE SECTION
Fig. QA-1
フィーダベース
Feeder Base
1
27
28
89
.
78
.
79
89
.
78
.
79
53
67
.
80
.
81
51
.
76
.
77
5
6
19
87
33
34
35
36
37
6
4
42
66
72
70
72
66
8
3
MODEL GXH-1S
1012-003
133
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
QA-1
4Unit/1Machine
1 6301607023 BASE 1 803QA-210-001 210A2941
3 6301573878 BLOCK 5 803QA-210-003 211G5359
4 6301376561 BLOCK 1 803QA-210-004 211G4122
5 6301376578 BLOCK 1 803QA-210-005 211G4123
6 6301560960 MECH PARTS 2 803QA-210-006 226J2369
8
6301474625 PLATE 26 803QA-210-008 211DB81
1
19 6301253541 ROD 1 803QA-210-019 216C0713
27
6301298528 COVER 1 803QA-210-027 211A8958
28 6301298535 COVER 1 803QA-210-028 211A8959
33 6301572819 CYLINDER 1 803QA-210-103 224C0602
34
6301572833 AIR LINE EQPT 2 803QA-210-104 225B0575
35
6301249995 VALVE 1 803QA-210-105 225C0106
36
6301106083 PIPE FITTINGS 1 803QA-210-106 225F0467
37
6300036534 AIR LINE EQPT 2 803QA-210-107 225B0059
42
6301260068 NAME PLATE,INDEX 1 803QA-210-112 6P460124
49 6301268064 PIPE FITTINGS 1 803QA-210-191 225F0577
51
4110418908 SCR PAN 3X6 2 803QA-210-501 221E0497
53
6300007527 BOLT,HEX-SCT 78 803QA-210-503 221A0007
66
6300007756 BOLT,HEX-SCT 4 803QA-210-516 221A0030
67
6300007763 BOLT,HEX-SCT 10 803QA-210-517 221A0031
70
6300933192 BOLT,HEX-SCT 2 803QA-210-520 221A0261
72
6300007763 BOLT,HEX-SCT 2 803QA-210-522 221A0031
76
4111412806 WASHER SPR 3 2 803QA-210-526 221H0281
77
4111413902 WASHER V 3X7X0.5 2 803QA-210-527 221H0312
78
4111412905 WASHER SPR 4 4 803QA-210-528 221H0284
79
4111414008 WASHER V 4X9X0.8 4 803QA-210-529 221H0315
80
4111416705 WASHER SPR 5 10 803QA-210-530 221H0287
81
4111414107 WASHER V 5X10X1 10 803QA-210-531 221H0318
87
4111411007 NUT HEX 8 1 803QA-210-537 221F0135
89
6300007626 BOLT,HEX-SCT 4 803QA-210-539 221A0017
MODEL GXH-1S
0709-001
134
フィーダベース部
FEEDER BASE SECTION

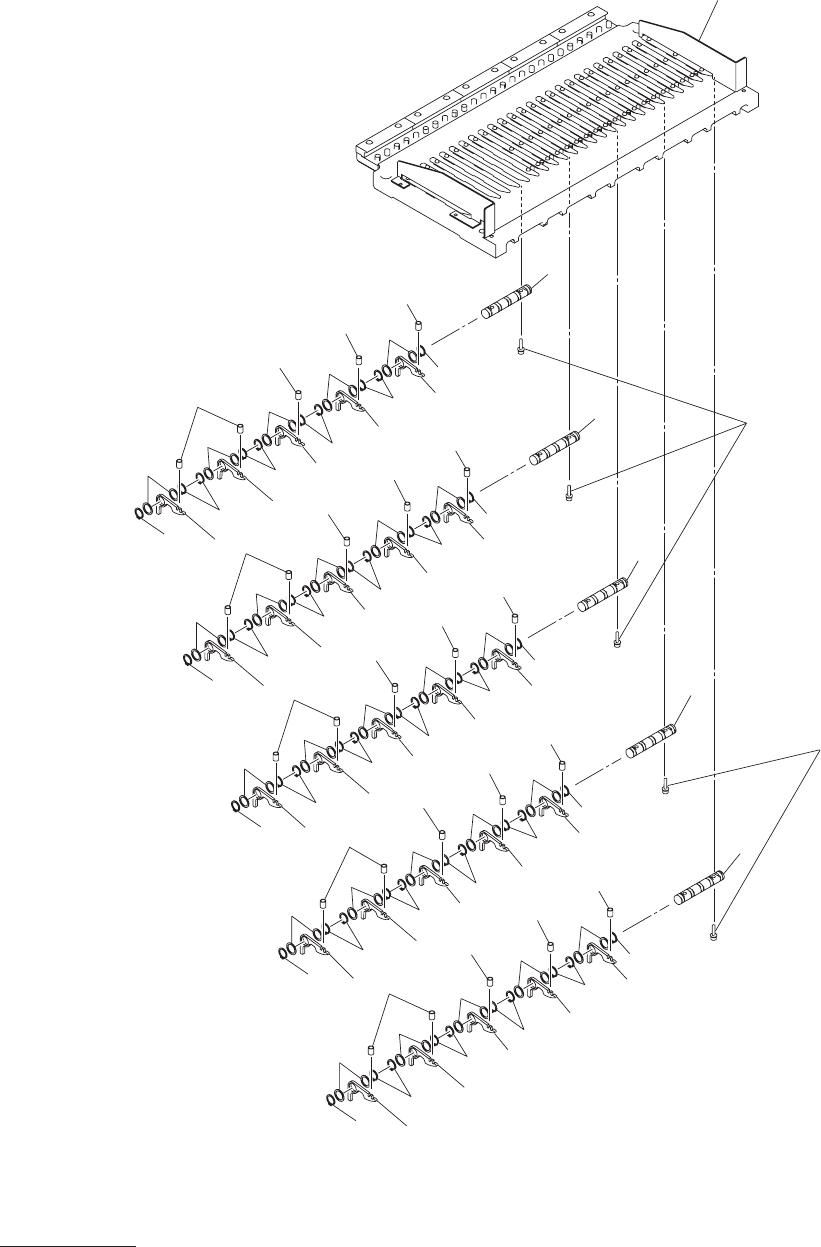

Fig. QA-2
フィーダレバー１
Feeder Lever 1
113
113
113
113
122
122
123
123
123
123
122
122
122
113
113
121
113
113
113
113
122
122
123
123
123
123
122
122
122
113
113
113
113
113
113
122
122
123
123
123
123
122
122
122
113
113
113
113
113
113
122
122
123
123
123
123
122
122
122
113
113
113
113
113
113
122
122
123
123
123
122
122
122
113
113
120
120
120
120
120
See Fig. QA-1
168
.
180
.
181
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
121
123
121
121
121
121
121
168
.
180
.
181
