MODEL GXH-1S 0709-001 136 フィーダベース部 FEEDER BASE SECTION Fig. QA-3 フィーダレバー２ Feeder Lever 2 See Fig. QA-1,2 210 231 234 231 231 210 225 225 226 218 216 236 237 216 218 215 235 208 266 266 266 221 222 265 . 280 . 281 273 . 2…
MODEL GXH-1S
1012-003
135
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
QA-2
4Unit/1Machine
113 4110007508 RING C 15 50 803QA-210-113 221K0079
120 6301246222 SHAFT 5 803QA-210-010 213A1024
121
6301266756 PLATE 25 803QA-210-011 21
1D9584
122 6301572734 SPACER 50 803QA-210-012 211E1085
123 6301246253 SPRING,COMP 25 803QA-210-013 222M1298
168
6300007770 BOLT,HEX-SCT 10 803QA-210-518 221A0032
180
4111416705 WASHER SPR 5 10 803QA-210-530 221H0287
181
4111414107 WASHER V 5X10X1 10 803QA-210-531 221H0318
MODEL GXH-1S
0709-001
136
フィーダベース部
FEEDER BASE SECTION

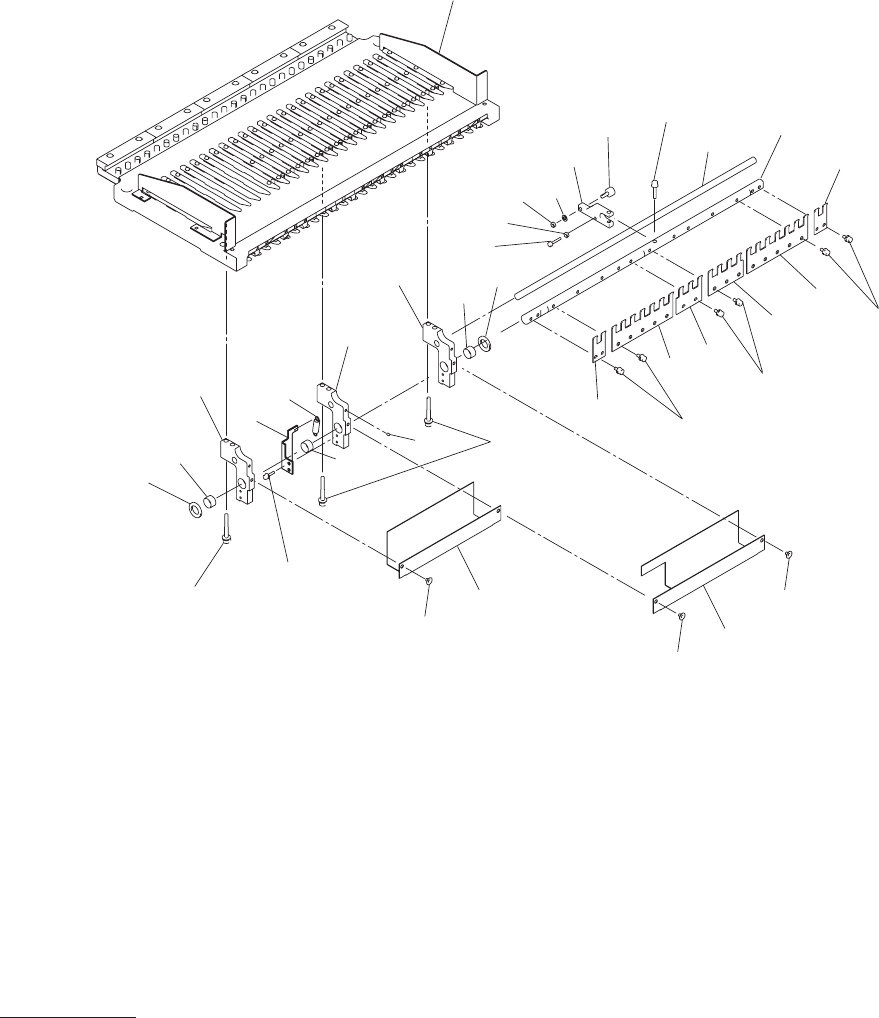

Fig. QA-3
フィーダレバー２
Feeder Lever 2
See Fig. QA-1,2
210
231
234
231
231
210
225
225
226
218
216
236
237
216
218
215
235
208
266
266
266
221
222
265
.
280
.
281
273
.
282
.
283
273
.
282
.
283
259
.
278
.
279
264
260
285
286
269
238
210
265
.
280
.
281
265
.
280
.
281
281
MODEL GXH-1S
1012-003
137
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
QA-3
4Unit/1Machine
208 6301250045 CAM FOLLOWER 1 803QA-210-108 222H0132
210 6301575841 BUSH,BEARING 3 803QA-210-110 222A0166
215 6301577937 SHAFT 1 803QA-210-015 213A1496
216
6301253428 SPRING,FLAT 2 803QA-210-016 222Q0121
218
6301404776 SPRING,FLAT 2 803QA-210-018 222Q0137
221
6301577920 BRACKET 1 803QA-210-021 211FC539
222 6300019001 SPRING,TENSION 1 803QA-210-022 222N0157
225
6301556420 SPACER 2 803QA-210-025 211E1062
226 6301589183 COVER 1 803QA-210-026 211AC245
231 6301589244 BUSH,BEARING 3 803QA-210-301 214A0061
234
6301588674 LEVER 1 803QA-210-304 216S3154
235
6301575490 ROD 1 803QA-210-305 216C0967
236
6301571751 SPRING,FLAT 1 803QA-210-306 222Q0167
237
6301571768 SPRING,FLAT 1 803QA-210-307 222Q0168
238
6301589015 COVER 1 803QA-210-308 211AC244
259 6300007626 BOLT,HEX-SCT 2 M4X10 803QA-210-509 221A0020
260 6300007664 BOLT,HEX-SCT 1 803QA-210-510 221A0021
264
6300304701 SET SCREW 1 803QA-210-514 221C0044
265
6300007749 BOLT,HEX-SCT 19 803QA-210-515 221A0029
266
6300007756 BOLT,HEX-SCT 3 803QA-210-516 221A0030
269
6300007787 BOLT,HEX-SCT 1 803QA-210-519 221A0033
273
6300007947 BOLT,HEX-SCT 3 803QA-210-523 221A0049
278
4111412905 WASHER SPR 4 2 803QA-210-528 221H0284
279
4111414008 WASHER V 4X9X0.8 2 803QA-210-529 221H0315
280
4111416705 WASHER SPR 5 19 803QA-210-530 221H0287
281
4111414107 WASHER V 5X10X1 19 803QA-210-531 221H0318
282
4111413001 WASHER SPR 6 3 803QA-210-532 221H0289
283
4111414305 WASHER V 6X12.5X1.6 3 803QA-210-533 221H0320
285
4111410406 NUT HEX 4 1 803QA-210-535 221F0104
286
4111410604 NUT HEX 5 1 803QA-210-536 221F0107
