MODEL GXH-1S 1012-005 151 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE G-4 301 6301489001 FRAME 1 803G--210-001 210B4048 302 6301489582 COVER 1 803G--210-002 21 1AB068 303 6301489599 COVER 1 803G--210-003 21…

100%1 / 272
MODEL GXH-1S
0709-003
150

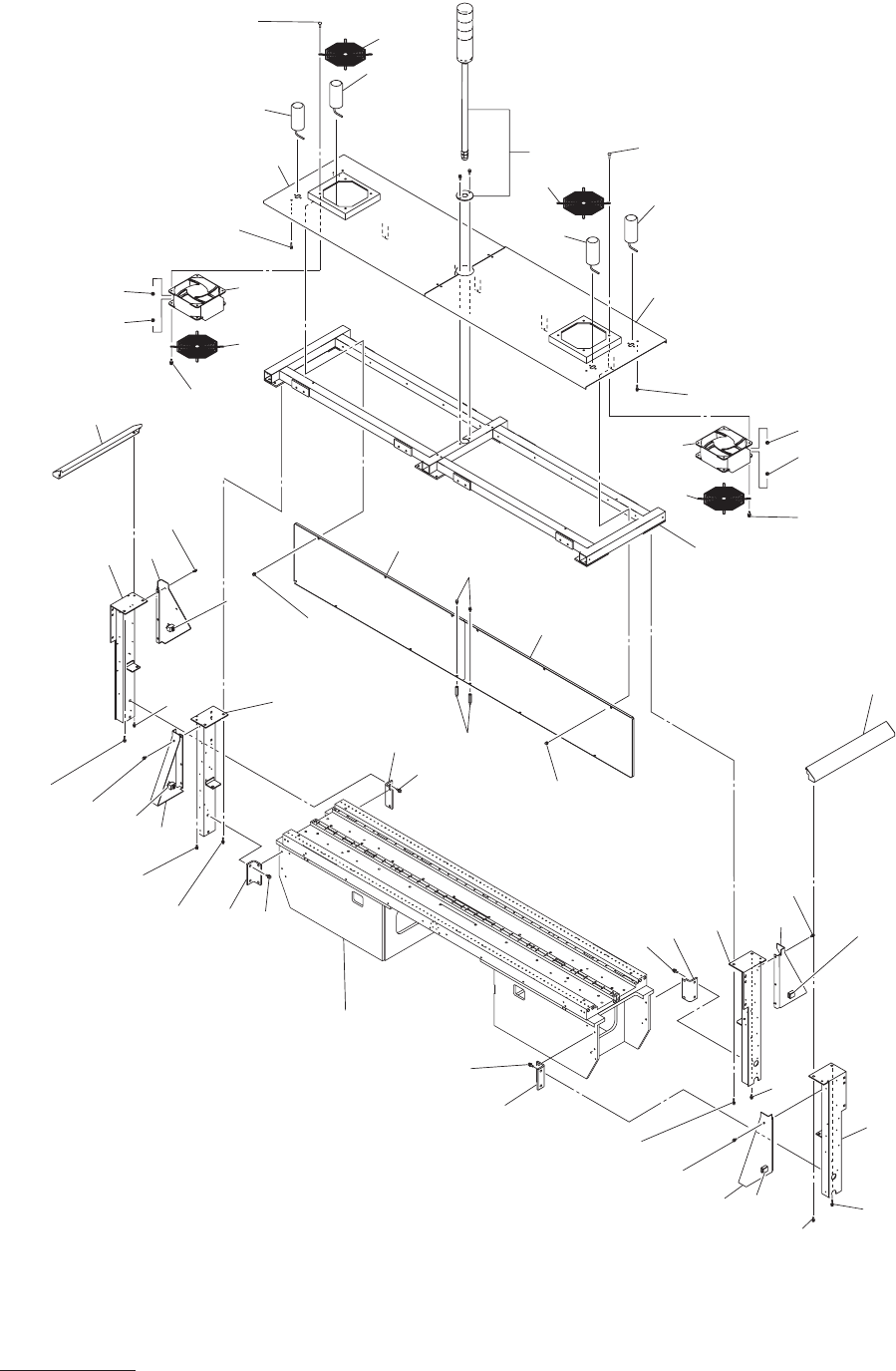

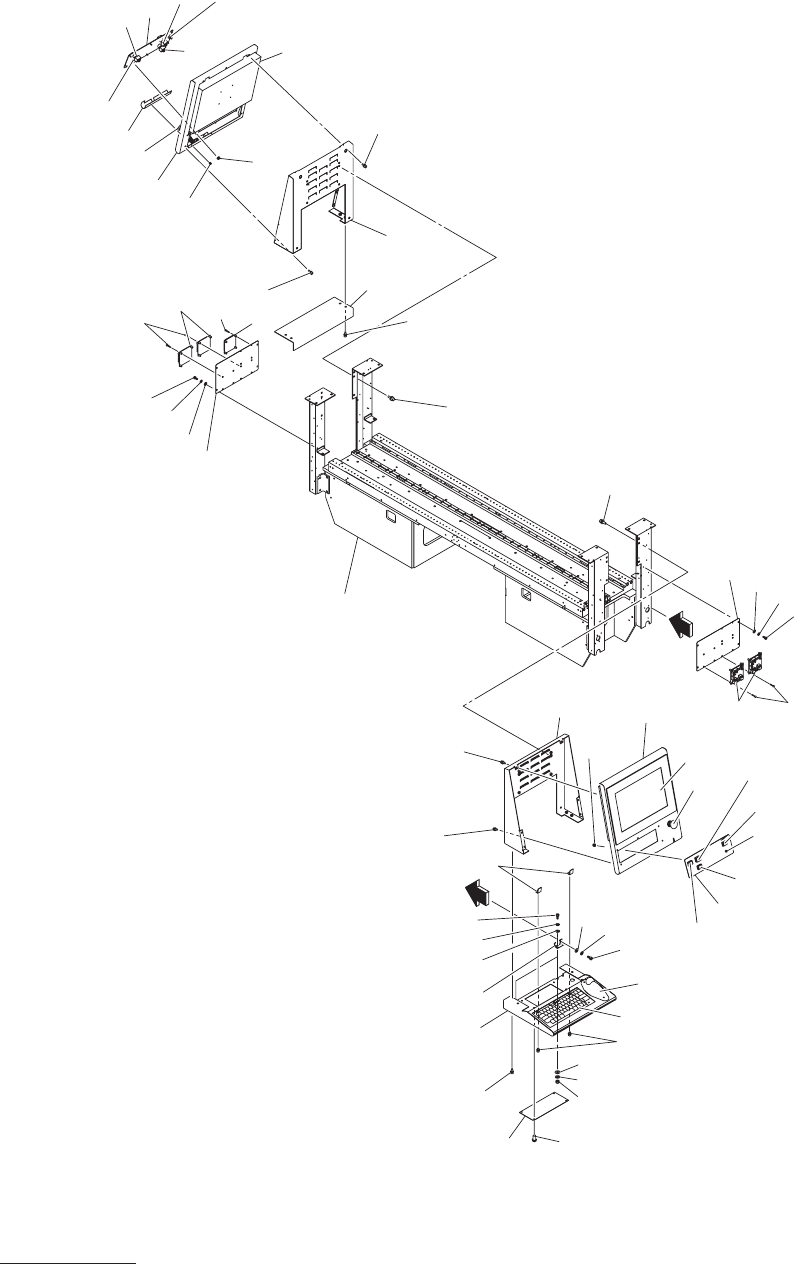

カバー部
COVER SECTION
Fig. G-4
パネルフレーム
Panel Frame
MODEL GXH-1S
1012-005
151
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-4
301 6301489001 FRAME 1 803G--210-001 210B4048
302 6301489582 COVER 1 803G--210-002 211AB068
303 6301489599 COVER 1 803G--210-003 211AB069
304 6301268965 FRAME 2 803G--210-004 210B3650
305
6301515830 STAY 2 803G--210-005 211J1439
306 6301515847 STAY 2 803G--210-006 211J1440
307 6301424088 COVER 2 803G--210-007 211AA342
308 6301424095 COVER 2 803G--210-008 211AA343
309 6301480893 BRACKET 4 803G--210-009 211FB106
311 6301544656 COVER 1 803G--210-011 21
1AB677
312 6301544663 COVER 1 803G--210-012 211AB678
313 6301273495 BOLT 2 803G--210-013 2.21E+297
351
6300002713 SWITCH,BUTTON 4 -S111
803G--210-151 4S1B0032
352 6300000382 ACCESSORY,SW 4 803G--210-152 23H20003
354
6301251752 PILOT LAMP 1 H1 803G--210-154 4T3A0205
356 6301400617 PILOT LAMP 4 803G--210-156 4T3A0218
357
6300684278 MOTOR,INDUCTION 2 M101,M102 803G--210-157 4M100029
358 6300684292 ACCESSORY,MOT-M 2 803G--210-158 23M00033
361
6300007732 BOLT,HEX-SCT 6 M5X8 221A0028
362
6300007756 BOLT,HEX-SCT 14 M5X12 221A0030
364
6300007770 BOLT,HEX-SCT 8 M5X20 221A0032
365
6300007886 BOLT,HEX-SCT 8 M6X16 221A0043
366
6300007626 BOLT,HEX-SCT 8 M4X10 221A0017
371
4111412905 WASHER SPR 4 8 SW4 221H0284
372
4111416705 WASHER SPR 5 64 SW5 221H0287
373
4111413001 WASHER SPR 6 8 SW6 221H0289
376
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
377
4111414107 WASHER V 5X10X1 48 FW5 221H0318
378
4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
387
6300007763 BOLT,HEX-SCT 8 M5X16 221A0031
388
4111410505 NUT HEX 5 16 M5 221F0085
MODEL GXH-1S
0701-002
152
カバー部
COVER SECTION
Fig. G-5
パネル
Panel
