MODEL GXH-1S 0701-002 206 電装ボックス L ELECTRICAL BOX L Fig. BL-7 コンベアドライバ Conveyor Driver 698 . 695 . 696 654 . 660 656 . 659 . 661 See Fig.BL-1 Key No.55 691 . 692 . 693 664 673 620 682 690 689 688 697 690 689 688 674 696 …
MODEL GXH-1S
1012-004
205
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
353 6301480923 BRACKET 1 803BL-210-053 211FB107
354 6301326313 BRACKET 1 803BL-210-054 211F9151
358 6301428215 BRACKET 1 803BL-210-078 211F
A444
362 6301242293 UNIT,POWER 1 -G02 803BL-210-162 4U200255
363 6301335889 UNIT,POWER 1 -G04 803BL-210-163 4U200267
370 6301405506 MOTOR,DC 1 M121 803BL-210-170 4M130026
371 6301399805 ACCESSORY,MOT-M 1 803BL-210-171 23M00062
374
6301258980 MECH PARTS(RUBBER LEGS) 2 803BL-210-184 226J1897
375
6300007510 BOLT,HEX-SCT 2 M3X8 221A0006
376
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
377
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
378
4110435004 SCR PAN 4X8 8 M4X8 PAN 221E0510
379 4111132506 SCR PAN 4X40 4 M4X40 PAN 221E0508
381 4110081706 WASHER SPR 4 4 SW4 F 221H0283
382
4111412905 WASHER SPR 4 2 SW4 221H0284
383
4111416705 WASHER SPR 5 2 SW5 221H0287
386
4111192104 WASHER V 4X9X0.8 4 FW4 F 221H0314
387
4111414008 WASHER V 4X9X0.8 2 FW4 221H0315
388
4111414107 WASHER V 5X10X1 2 FW5 221H0318
BL-4
MODEL GXH-1S
0701-002
206

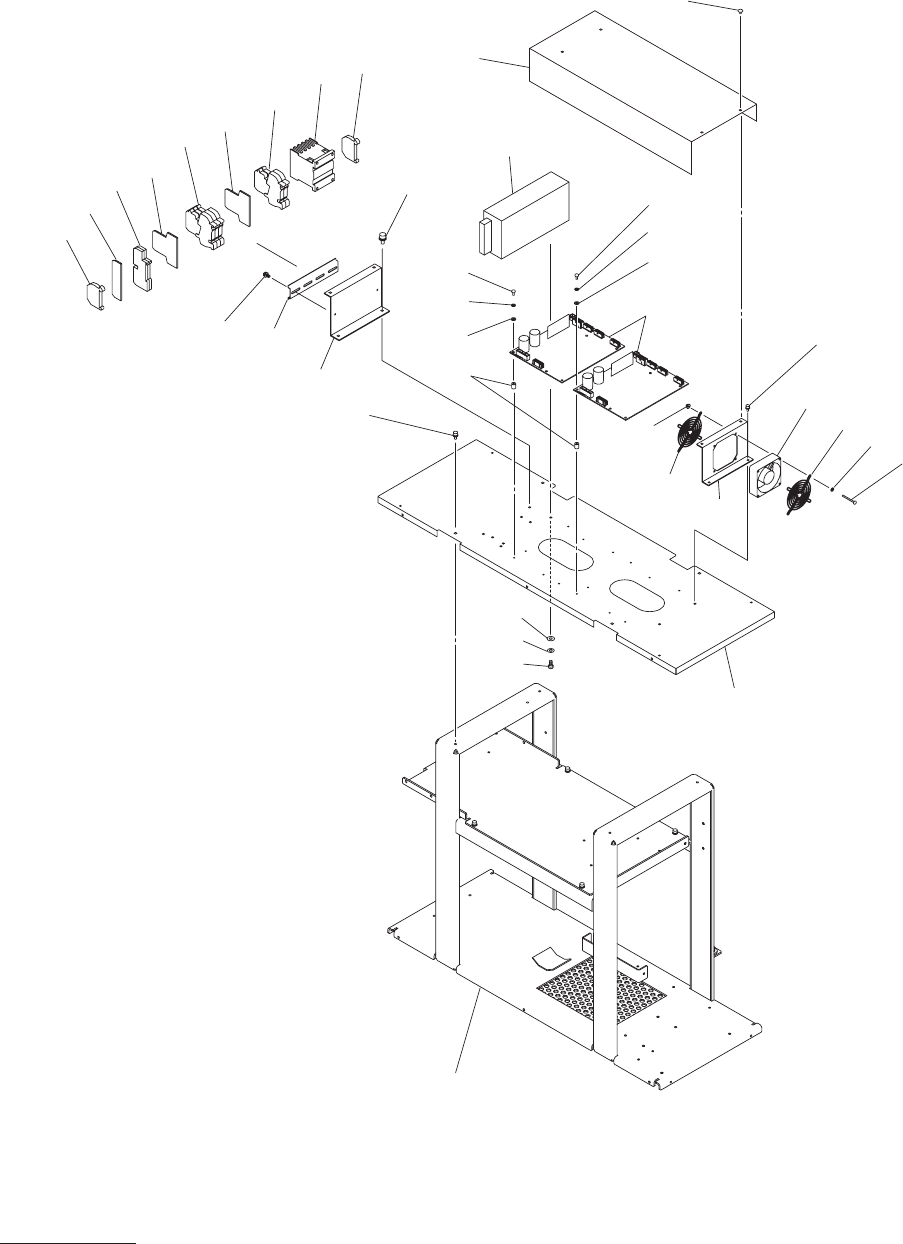

電装ボックス
L ELECTRICAL BOX L
Fig. BL-7
コンベアドライバ
Conveyor Driver
698
.
695
.
696
654
.
660
656
.
659
.
661
See Fig.BL-1
Key No.55
691
.
692
.
693
664
673
620
682
690
689
688
697
690
689
688
674
696
695
694
685
.
686
.
687
677
653
680
679
680
685
.
686
.
687
695
684
676
683
.
695
652
655
658
658
657
.
659
.
661
651
653
MODEL GXH-1S
1012-005
207
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
620 6301242088 UNIT,DRIVER 2 -A41(L),-A51(L)
803BL-210-420 4U240441
651
6300941418 EM-CONTACTOR 1 803BL-210-381 4S210086
652
6300911718 ACCESSORY,WIRING 1 803BL-210-382 23N30498
653
6300911749 BRACKET,WIRING 2 803BL-210-383 23N10027
654
6301270302 TERMINAL 2 803BL-210-384 4J320187
655
6301270296 ACCESSORY,WIRING 1 803BL-210-385 23N30612
656
6301262864 FUSE HOLDER 3 803BL-210-386 4J200033
657
6301269887 FUSE HOLDER 2 803BL-210-387 4J200034
658
6301262871 ACCESSORY,WIRING 2 803BL-210-388 23N30605
659
6301262888 ACCESSORY,WIRING 3 803BL-210-389 23N30606
660
6300969917 ACCESSORY,WIRING 1 803BL-210-390 23N30524
661
4230228302 FUSE 250V 5A 5 F033,F034,F037,F038,F041
803BL-210-391 4S300024
664
6301428406 UNIT,POWER 1 -G05 803BL-210-164 4U200289
673 6301427935 COVER 1 803BL-210-073 211AA376
674 6301427812 PLATE 1 803BL-210-074 211DB323
676 6301427966 BRACKET 1 803BL-210-076 211F
A437
677 6301427959 BRACKET 1 803BL-210-077 211F
A436
679 6301405490 MOTOR,DC 1 M122 803BL-210-179 4M130025
680 6301399799 ACCESSORY,MOT-M 2 803BL-210-180 23M00061
682
6301613994 ACCESSORY,P.C.B 14 803BL-210-182 23L10106
683
4111410307 NUT HEX 4 4 M4 221F0104
684
4111132506 SCR PAN 4X40 4 M4X40 PAN 221E0508
685 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
686
4111412905 WASHER SPR 4 4 SW4 221H0284
687
4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
688
4110418908 SCR PAN 3X6 14 M3X6 PAN 221E0497
689 4110864408 WASHER SPR 3 14 SW3 F 221H0280
690
4111191909 WASHER V 3X7X0.5 14 FW3 F 221H0311
691 6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
692
4111416705 WASHER SPR 5 4 SW5 221H0287
693
4111414107 WASHER V 5X10X1 4 FW5 221H0318
694
4111131400 SCR PAN 4X6 3 M4X6 PAN 221E0509
695 4110081706 WASHER SPR 4 13 SW4 F 221H0283
696
4111192104 WASHER V 4X9X0.8 5 FW4 F 221H0314
697
4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
698 4110435004 SCR PAN 4X8 2 M4X8 PAN 221E0510
BL-7
