MODEL GXH-1S 0701-002 210 161 171 172 181 . . 180 181 . 180 180 . 181 182 162 161 169 152 165 168 153 159 167 157 166 164 151 163 170 182 182 185 184 183 185 184 183 185 184 183 185 184 183 170 170 170 170 170 170 158 17…
MODEL GXH-1S
0701-002
209

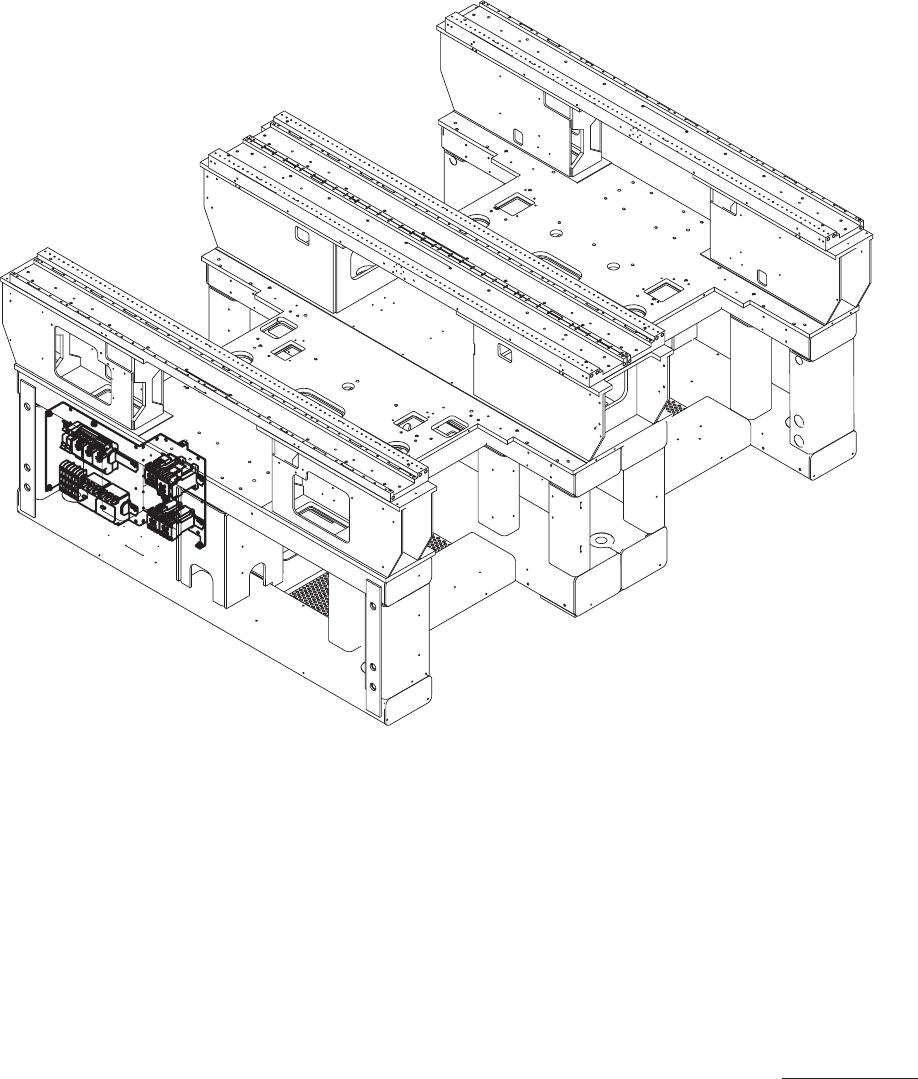

Fig. BM
架台下
XY
サーボ電源部
A UNDERFRAME XY SERVO
POWER SUPPLY SECTION
A
MODEL GXH-1S
0701-002
210
161
171
172
181
.
.
180
181
.
180
180
.
181
182
162
161
169
152
165
168
153
159
167
157
166
164
151
163
170
182
182
185
184
183
185
184
183
185
184
183
185
184
183
170
170
170
170
170
170
158
173
架台下
XY
サーボ電源部
A UNDERFRAME XY SERVO
POWER SUPPLY SECTION
A
Fig. BM-2 200V
電源１
200V Power Supply 1
MODEL GXH-1S
1012-004
211
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BM-2
151 6301340012 BREAKER 1 -Q201 803BM-210-151 4S230093
152 6301340029 EM-CONTACTOR 1 -K33 803BM-210-152 2S2101
17
153 6301241586 COMP,CR 1 803BM-210-153 4F400025
157
6301705309 CIRCUIT PROTECTOR 1 -Q221 803BM-210-157 4S250388
158 6301340074 ACCESSORY,WIRING 1 803BM-210-158 23N30652
159
6301340081 ACCESSORY,WIRING 1 803BM-210-159 23N30653
160
6301340005 RAIL,WIRING 1 803BM-210-160 23N00101
161
6300911725 ACCESSORY,WIRING 2 803BM-210-161 23N30499
162
6301406220 TERMINAL 1 803BM-210-162 4J320242
163
6301340012 BREAKER 1 -Q203 803BM-210-163 4S230093
164 6301340142 CIRCUIT PROTECTOR 1 -Q204 803BM-210-164 4S250324
165 6300492194 EM-CONTACTOR 1 -K28 803BM-210-165 4S210045
166 6301705316 CIRCUIT PROTECTOR 2 -Q222,-Q223
803BM-210-166 4S250389
167
6301340067 ACCESSORY,WIRING 3 803BM-210-167 23N30651
168
6300769166 COMP,CR 3 803BM-210-168 4F400008
169
6300492194 EM-CONTACTOR 2 -K40,-K50 803BM-210-169 4S210045
170 6300911749 BRACKET,WIRING 7 803BM-210-170 23N10027
171
6301406169 BRACKET 1 803BM-210-051 211F
A178
172 6301464640 TERMINAL 1 803BM-210-172 4J320255
173
4230252109 FUSE 250V 6.3A 1 F042 803BM-210-173 4S300023
180 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
181
4111416705 WASHER SPR 5 4 SW5 221H0287
182
6300010220 WASHER 4 BW5 221H0005
183
4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
184 4110081706 WASHER SPR 4 10 SW4 F 221H0283
185
4111192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
