MODEL GXH-1S 0804-003 262 認識 PC 部 RECOGNITION PC SECTION Fig. FC-3 ケーブル Cable 261 262 261 262 277 276 279 259 278 X19401 X29401 X39401 X49401 X9505 X9510 X951 1 X9502 X9503 X9512 X9513 X9504 X9101 X13601 X6101 X13601 X61…
MODEL GXH-1S
1012-006
261
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
51 6301237428 BRACKET 1 803FC-210-051 211F8025
52 6301237435 BRACKET 2 803FC-210-052 211F8026
53 6301511658 P.C.B,MOUNT 2 U92,U93 803FC-210-153 4B1
11572
54 6301270340 P.C.B,MOUNT 1 U94 803FC-210-154 4B1
11484
56 6301533933 EQUIPMENT 1 U91 803FC-210-156 4U260338
57 6301455907 P.C.B,MOUNT 1 U95 803FC-210-157 4B1
11556
58 6300699616 ACCESSORY,P.C.B 6 803FC-210-158 23L10045
60
6301622903 UNIT,I/O 1 803F--210-156 4U250239
62
6301235493 MECH PARTS(RUBBER DAMPER) 4 803FC-210-152 226J1834
71
6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
73
4110418908 SCR PAN 3X6 8 M3X6 PAN 221E0497
74 4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
75 4111410505 NUT HEX 5 4 M5 221F0085
76
4110864408 WASHER SPR 3 8 SW3 F 221H0311
77 4110081706 WASHER SPR 4 10 SW4 F 221H0283
78
4111416705 WASHER SPR 5 8 SW5 221H0289
81
4111191909 WASHER V 3X7X0.5 16 FW3 F 221H0280
82
4111192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
83
4111414107 WASHER V 5X10X1 4 FW5 221H0320
84
6300010220 WASHER 4 BW5 221H0005
FC-1

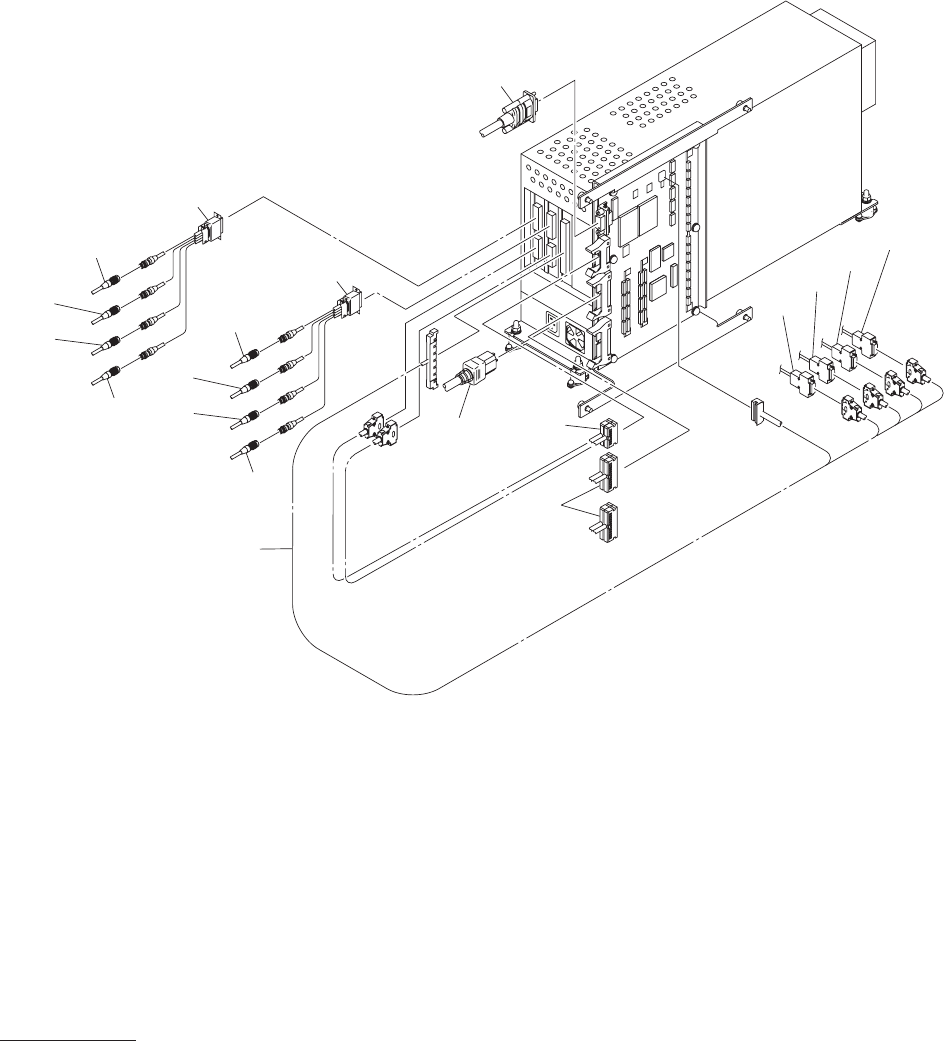

MODEL GXH-1S
0804-003
262
認識
PC
部
RECOGNITION PC SECTION
Fig. FC-3
ケーブル
Cable
261
262
261
262
277
276
279
259
278
X19401
X29401
X39401
X49401
X9505
X9510
X9511
X9502
X9503
X9512
X9513
X9504
X9101
X13601
X6101
X13601
X6101
AC200V
X9401
X9202
271
272
273
274
275
X49201
X39201
X29201
X19201
X9201
X13601
X6101
X13601
X6101
271
272
273
274
275
X49201
X39201
X29201
X19201
X9301
X9302
MODEL GXH-1S
1012-004
263
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
259 6301081861 CORD 1 803FC-210-159 4W202121
261 6301250458 CORD 2 803FC-210-161 4W202769
262
6301250472 CORD 2 803FC-210-162 4W202770
271
6301245713 CORD 2 803FC-210-351 4W202731
272
6301268637 CORD 2 803FC-210-352 4W202804
273
6301245737 CORD 2 803FC-210-353 4W202733
274
6301268644 CORD 2 803FC-210-354 4W202805
275
6301246420 CORD 2 803FC-210-355 4W202756
276
6301269061 CORD 1 803FC-210-356 4W202807
277
6301269078 CORD 4 803FC-210-357 4W202808
278
6301246475 CORD 2 803FC-210-358 4W202761
279
6301237510 CORD 1 803FC-210-359 4W202692
FC-3
