MODEL GXH-1S
1012-004
265
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
SA-1
1 6301274454 PLATE 2 803SA-210-001 211D9639
2 6301266015 ROD 20 803SA-210-002 216C0722
4
6301292946 ASSY,NOZZLE(HA09) 2 803SA-210-004 HA09----
5
6301269252 AIR LINE EQPT 288 803SA-210-005 225B0508
6
6301094243 MECH PARTS 5 803SA-210-006 226J1560
7
6301620381 ASSY,BLOCK 4 803SA-210-007 011G0064
15 6301332529 ROD 1 803SA-210-015 216C0787
16
6300622577 TOOL,HAND(HAND GREESEGUN) 1 803SA-210-016 228A0022
17
6301333793 TOOL,HAND(SYRINGE) 4 803SA-210-017 228A0171
18
6300622607 NOZZLE 2 803SA-210-018 216M0451
19
6300622621 NOZZLE 2 803SA-210-019 216M0453
20
6301373669 BRACKET 1 803SA-210-020 211F9768
21 6301376028 SEAL 12 803SA-210-021 226A0256
22
6301381541 ASSY,BLOCK(JIG) 1 803SA-210-022 011G0041
51 4230252109 FUSE 250V 6.3A 1 803SA-210-151 4S300023
52
4230228302 FUSE 250V 5A 1 803SA-210-152 4S300024
53
4230228005 FUSE 250V 1A 1 803SA-210-153 4V320007
54
4230228104 FUSE 250V 2A 1 803SA-210-154 4S300025
55
6301231303 FUSE,SPECIAL 1 803SA-210-155 4S300006
56
6300619737 MECH PARTS (PADLOCK) 2 803SA-210-156 226J0574
MODEL GXH-1S
0909-004
266

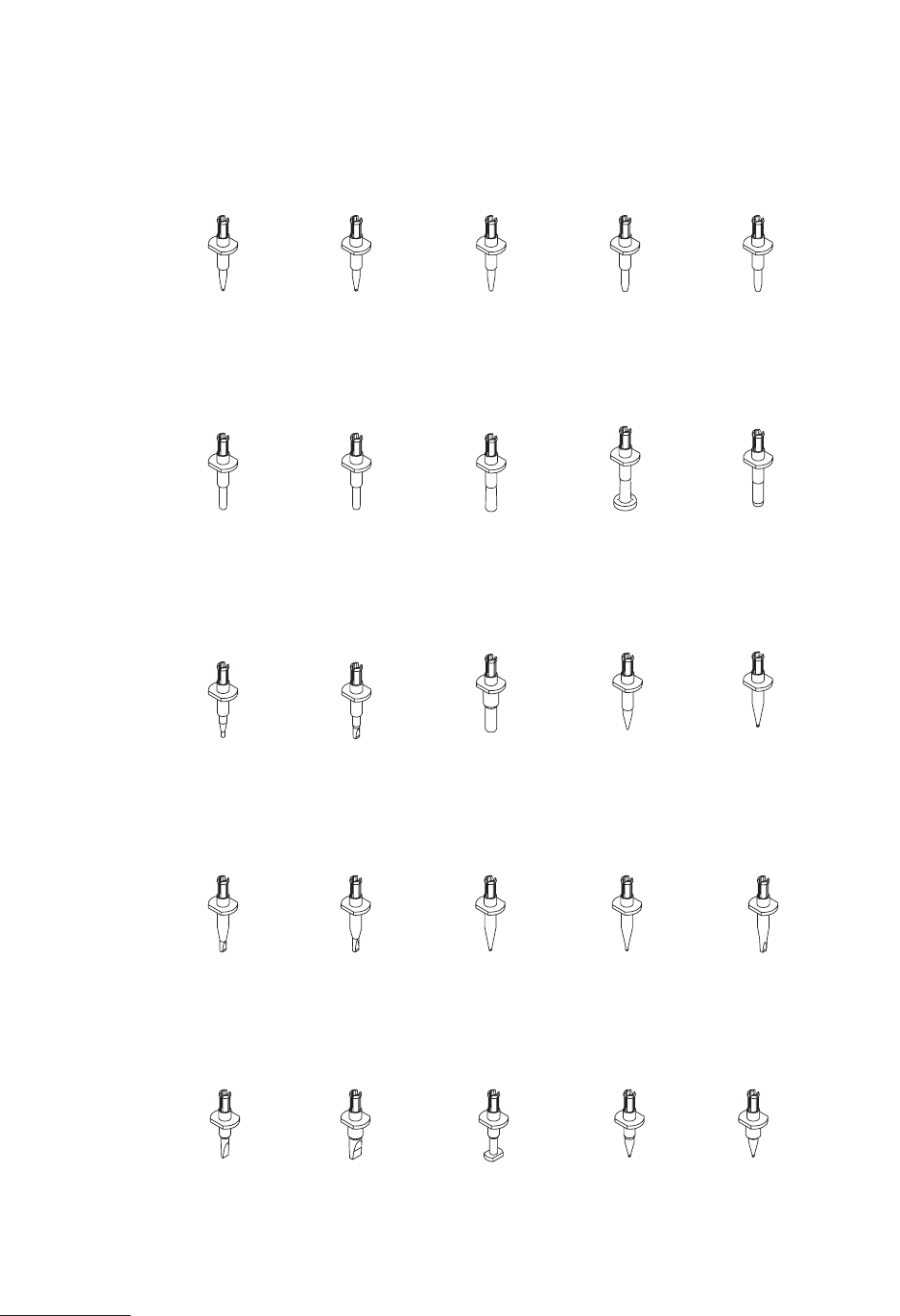

標準付属品
STANDARD ACCESSORIES
Fig. SA-2
選択部品
Optional Parts
Fig.ZS-2
4797L
TCM-X300
TCM-X200
4797A
101
󰨖
VACUUM NOZZLE (Work Corresponding)
102 103 104 105
109
114 115
1
13
110
111
116
112
120 121
119117
106 107 108
122 123 125 126124
MODEL GXH-1S
1012-005
267
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
SA-2
101 6301284842 ASSY,NOZZLE(HA10) 1 803UN-01R-001 HA10----
102 6301292878 ASSY,NOZZLE(HV01) 1 803UN-02R-001 HV01----
103
6301292885 ASSY,NOZZLE(HV02) 1 803UN-03R-001 HV02----
104
6301292892 ASSY,NOZZLE(HV03) 1 803UN-04R-001 HV03----
105
6301292908 ASSY,NOZZLE(HB03) 1 803UN-05R-001 HB03----
106
6301292915 ASSY,NOZZLE(HB04) 1 803UN-06R-001 HB04----
107
6301292922 ASSY,NOZZLE(HA04) 1 803UN-07R-001 HA04----
108
6301292939 ASSY,NOZZLE(HA05) 1 803UN-08R-001 HA05----
109
6301292946 ASSY,NOZZLE(HA09) 1 803UN-09R-001 HA09----
1
10 6301335407 ASSY,NOZZLE(PA05) 1 803UN-10R-001 PA05----
111 6301322322 ASSY,NOZZLE(PV01) 1 803UN-11R-001 PV01----
112 6301329857 ASSY,NOZZLE(PV02) 1 803UN-12R-001 PV02----
1
13 6301350295 NOZZLE(PA07) 1 803UN-13R-001 PA07----
114 6301375472 ASSY,NOZZLE(HA11) 1 803UN-14R-001 HA11----
115 6301528267 ASSY,NOZZLE(HV31) 1 803UN-15R-001 HV31----
1
16 6301528472 ASSY,NOZZLE(HV51) 1 803UN-16R-001 HV51----
1
17 6301589084 ASSY,NOZZLE(HV81) 1 803UN-17R-001 HV81----
1
19 6301586571 ASSY,NOZZLE(HG31) 1 803UN-19R-001 HG31----
120
6301599632 ASSY,NOZZLE(HG51) 1 803UN-20R-001 HG51----
121
6301613505 ASSY,NOZZLE(HG81) 1 803UN-21R-001 HG81----
122
6301665757 NOZZLE(PA19) 1 803UN-22R-001 PA19----
123 6301665764 NOZZLE(PA20) 1 803UN-23R-001 PA20----
124 6301665771 NOZZLE(PA21) 1 803UN-24R-001 PA21----
125 6301759043 ASSY,NOZZLE(HV32) 1 803UN-25R-001 HV32----
126
6301759050 ASSY,NOZZLE(HG32) 1 803UN-26R-001 HG32----
