MODEL GXH-1S 0709-002 46 カッタ部 A,D CUTTER SECTION A,D Fig. DC-1 ベースフレーム Base Frame 59 53 27 21 58 17 58 5 37 25 57 6 15 49 14 31 42 59 8 65 61 . 52 . 33 33 57 2 57 59 22 67 63 . 55 . 36 66 62 . 54 . 59 26 32 58 17 53 28 3…
MODEL GXH-1S
0602-001
45

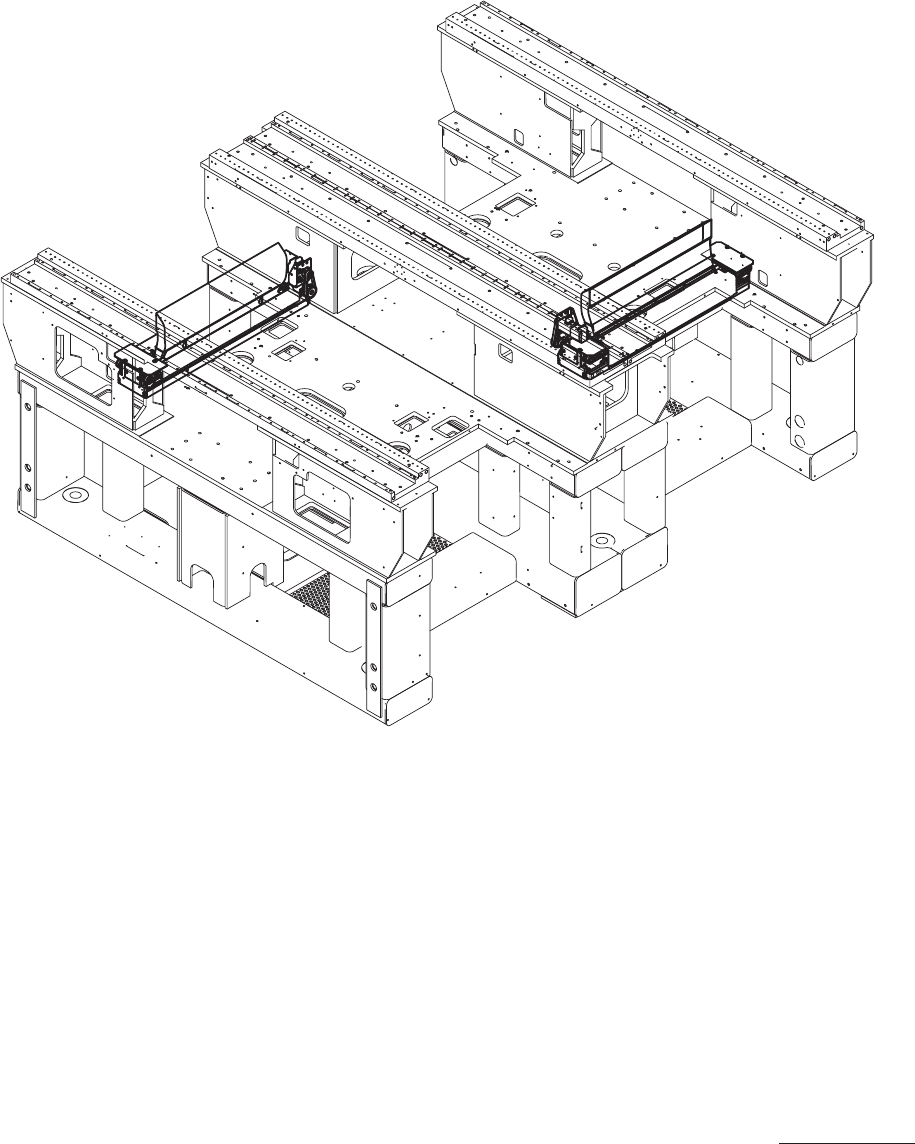

Fig. DC
カッタ部
A,D CUTTER SECTION A,D
MODEL GXH-1S
0709-002
46
カッタ部
A,D CUTTER SECTION A,D

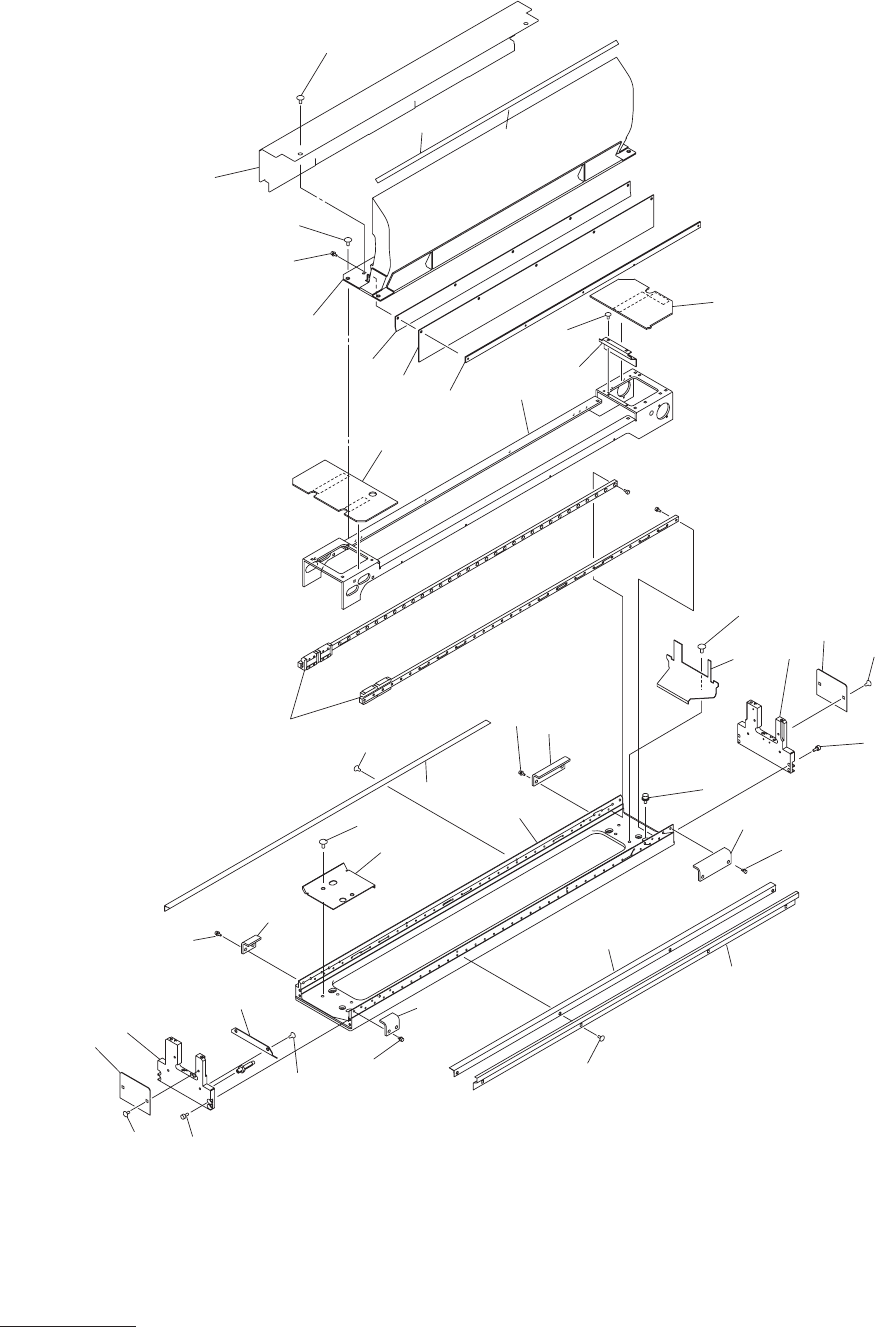

Fig. DC-1
ベースフレーム
Base Frame
59
53
27
21
58
17
58
5
37
25
57
6
15
49
14
31
42
59
8
65
61
.
52
.
33
33
57
2
57
59
22
67
63
.
55
.
36
66
62
.
54
.
59
26
32
58
17
53
28
32
66
62
.
54
.
66
62
.
54
.
66
62
.
54
.
3
1
注 1）
注 1）リニアガイドは交換できませんので、受注対象外になります。
Notice 1) Because the linear guide can not be replaced, it is not included
in the available items to be ordered.
Notice 1)
MODEL GXH-1S
1012-005
47
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301370385 COVER 1 803DC-210-001 211A9793
2 6301370392 COVER 1 803DC-210-002 211A9794
3 6301605746 COVER 1 803DC-210-003 211AC453
5 6301370521 COVER 1 803DC-210-005 211A9804
6 6301375748 COVER 1 803DC-210-006 211A9872
8 6301403618 COVER 1 803DC-210-008 211AA158
14 6301433363 PLATE 1 803DC-210-014 211DB394
15 6301370309 PLATE 1 803DC-210-015 211DA584
17 6301370378 PLATE 2 803DC-210-017 211DA586
21 6301365602 BRACKET 1 803DC-210-021 211F9663
22 6301380391 BRACKET 1 803DC-210-022 211F9817
25 6301372648 BRACKET 1 803DC-210-025 211F9758
26 6301380414 BRACKET 1 803DC-210-026 211F9819
27 6301403649 BLOCK 1 803DC-210-027 211G4318
28 6301403656 BLOCK 1 803DC-210-028 211G4319
31 6301260068 NAME PLATE,INDEX 1 803DC-210-231 6P460124
32
6301370217 BLOCK 2 803DC-210-032 211G4069
33 6301370224 BLOCK 2 803DC-210-033 211G4070
36 6301380384 BASE 1 803DC-210-056 210A2400
37
6301371924 FRAME 1 803DC-210-057 210B3901
42
6301538662 SUPPORT 1 803DC-210-072 211K3356
49 6301366906 GUIDE 1 803DC-210-049 212A2219
52
6300007527 BOLT,HEX-SCT 5 M3X10 221A0007
53
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
54
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
55
6300007725 BOLT,HEX-SCT 4 M5X6 221A0027
57
4110505004 SCR TRS 3X6 10 M3X6 TRS 221E0529
58 4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
59 4111408007 SCR TRS 5X6 10 M5X6 TRS 221E0536
61 4111412806 WASHER SPR 3 5 SW3 221H0281
62
4111412905 WASHER SPR 4 8 SW4 221H0284
63
4111416705 WASHER SPR 5 4 SW5 221H0287
65
4111413902 WASHER V 3X7X0.5 5 FW3 221H0312
66
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
67
4111414107 WASHER V 5X10X1 4 FW5 221H0318
DC-1
2Unit/1Machine
