MODEL GXH-1S
0709-002
96
コンベア部
NA,NB,NC CONVEYOR SECTION NA,NB,NC

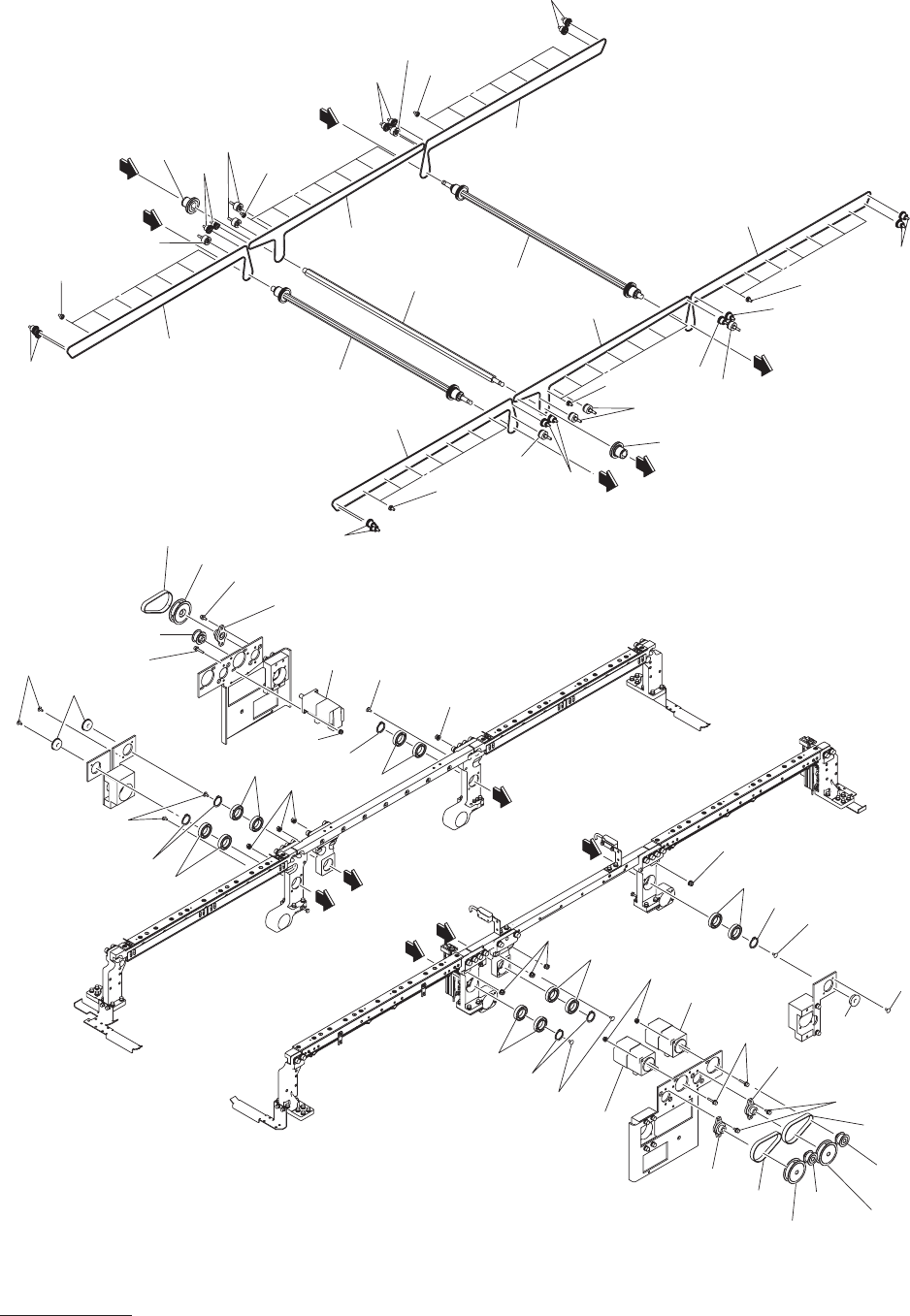

Fig. N-10
搬送部
Conveyor
MODEL GXH-1S
1012-005
97
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-10
913 6301311616 PIN,GUIDE 42 803N--210-113 216F0902
920 6301505206 PULLEY,TIMING 2 803N--210-220 223Q0682
921
4110007805 RING C 20 6 803N--210-221 221K0084
922
6300765731 BEARING,RADIAL 12 803N--210-222 222D0298
923
6301272733 PULLEY,TIMING 16 803N--210-223 223Q0564
924
6301236537 PULLEY,FLAT 8 803N--210-224 223M0050
925
6301236780 BELT,TIMING 4 803N--210-225 223L0261
926
6301236810 BELT,TIMING 2 803N--210-226 223L0264
927
6300882988 BEARING,UNIT 2 803N--210-227 222F0076
928
6300011425 BEARING,RADIAL 3 803N--210-228 222D0021
929
6301236490 PULLEY,TIMING 2 803N--210-229 223Q0545
930
6301236506 PULLEY,TIMING 2 803N--210-230 223Q0546
931
6301241340 MOTOR,AC-SERVO 2 -M41,-M42 803N--210-231 4M150196
936 6301236773 BELT,TIMING 2 803N--210-306 223L0260
937
6301287034 GUIDE,SLIDE 2 803N--210-237 222C0109
941
6301241340 MOTOR,AC-SERVO 1 -M44 803BX-210-231 4M150196
945 6301314860 ROD 1 803BX-210-205 216C0772
946
6301236810 BELT,TIMING 1 803BX-210-226 223L0264
947
6300882988 BEARING,UNIT 1 803BX-210-227 222F0076
949
6301236490 PULLEY,TIMING 1 803BX-210-229 223Q0545
950
6301236506 PULLEY,TIMING 1 803BX-210-230 223Q0546
951
6300007626 BOLT,HEX-SCT 6 M4X10 221A0017
952
6300007664 BOLT,HEX-SCT 6 M4X20 221A0021
955
4110512804 SCR TRS 4X8 12 M4X8 TRS 221E0533
956 4111412905 WASHER SPR 4 12 SW4 221H0284
958
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
961
4111410307 NUT HEX 4 6 M4 221F0082
962
4111410505 NUT HEX 5 8 M5 221F0085
