Programmers Manual
| 41
10) Nonbase All Off
Create an edge-trace for all flashes and traces in a nonbase layer within a work
area.
Ú Caution: Once a change is made to a flash or trace, it cannot be reversed.

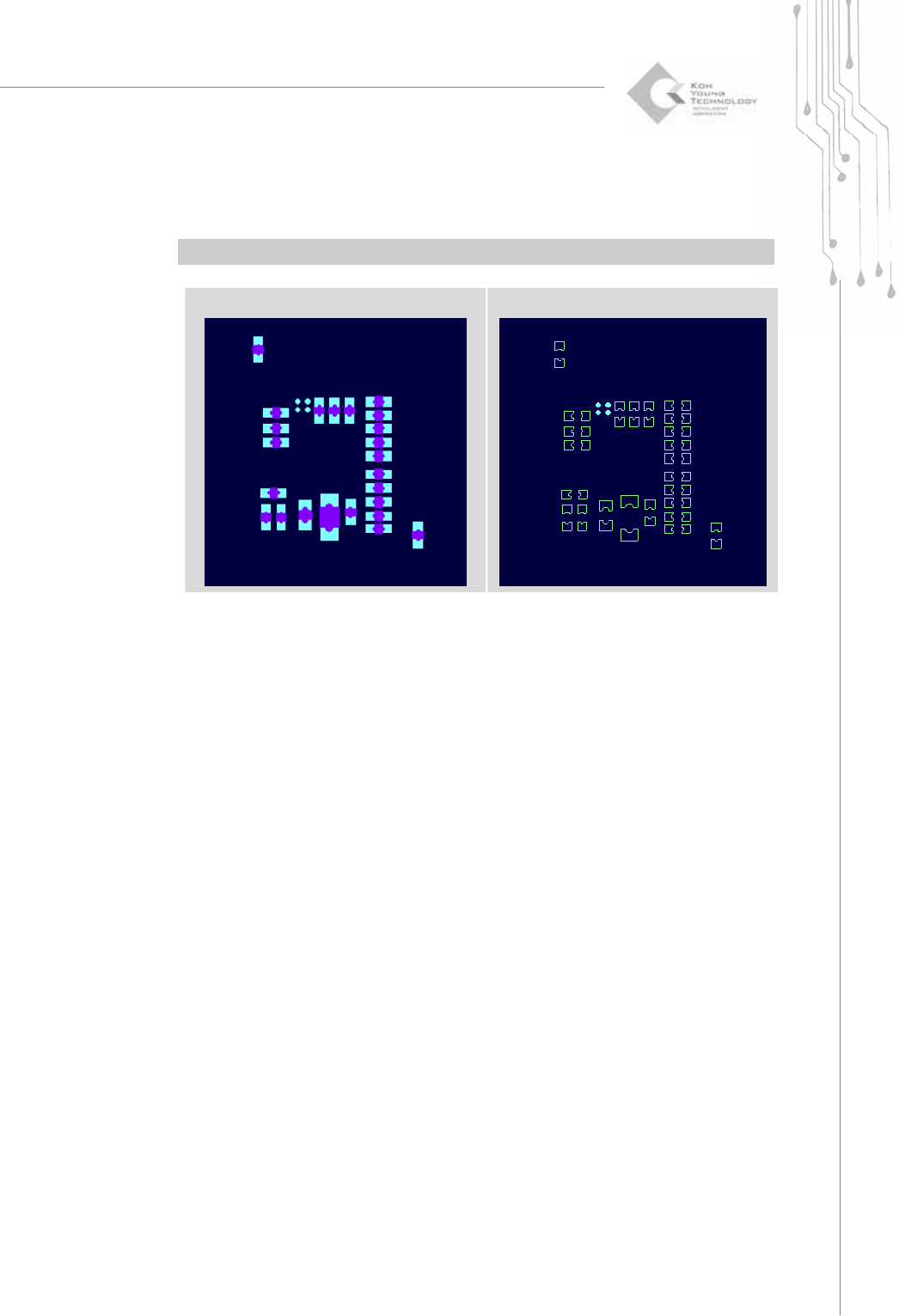

(Before "Nonbase All Off")
(After "Nonbase All Off")
42 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
1.3.4. Setup
1) Create All Patterns (Ctrl + F1)
Retrieve all flashes and traces within a work area and create patterns and pads
automatically.
※ Caution:
y If you run "Create All Patterns", all the existing pattern and pad data will be lost.
y Specify a work area before performing "Create All Patterns". Otherwise, it may lead to a pattern
omission, pattern data error or unnecessary pattern.
You can perform the following tasks in relation to "Create All Patterns".
(1) Choose "Edit ▶ Add Pattern" in the menu bar.
(2) Choose "Edit ▶ Modify Pattern" in the menu bar.
(3) Choose "Edit ▶ Remove Pattern" in the menu bar.

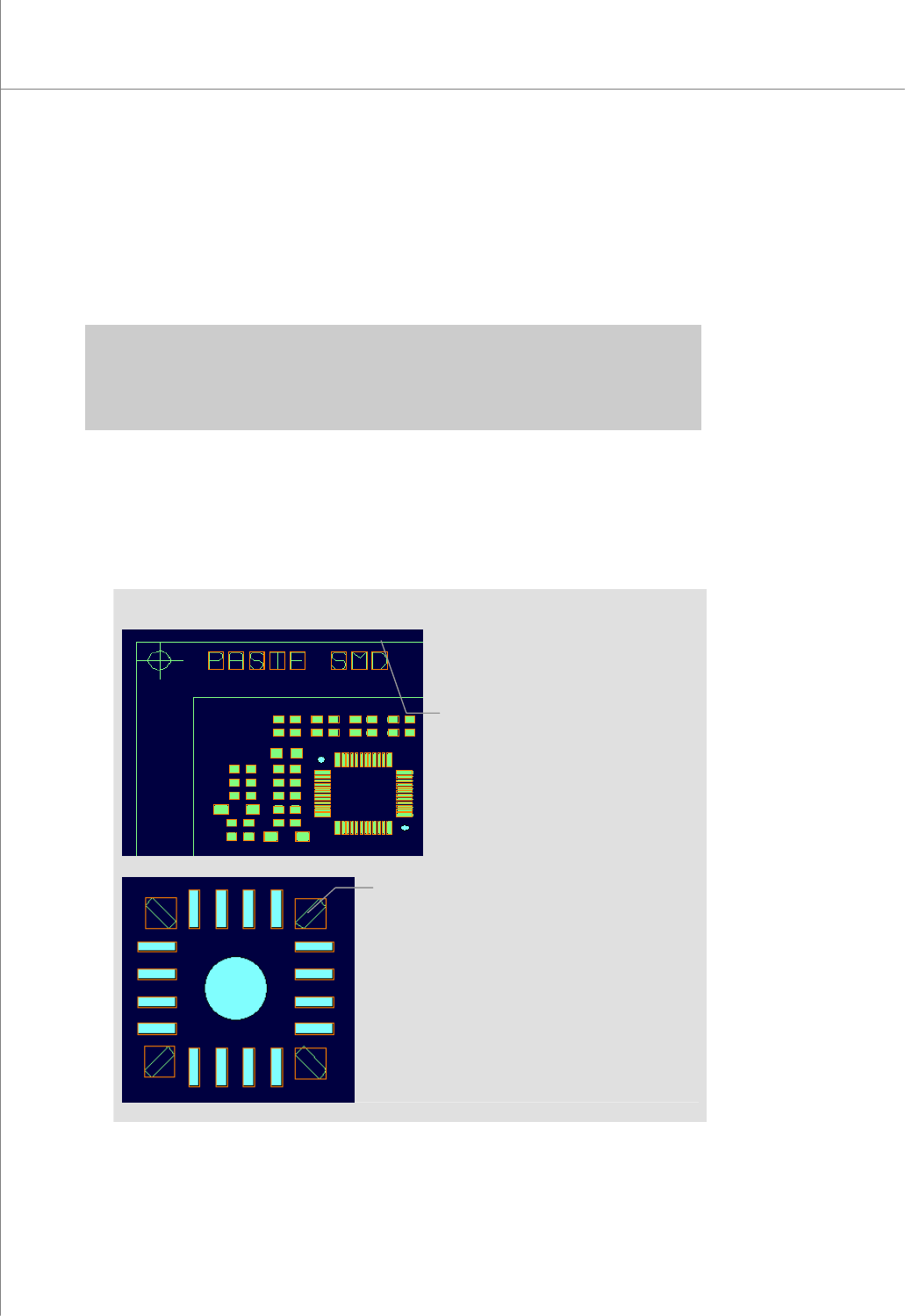

(Result of the "Create All Patterns" Task)
Choose “Edit ▶ Remove Pattern” in
the menu bar after selecting
unneeded patterns.
If you need to check patterns, choose
“Edit ▶ Modify Pattern” in the menu bar.
Programmers Manual
| 43
2) Work Area
Change the mouse pointer mode to Work Area Selection mode.
You can add, remove or resize a work area as follows:
(1) Add: Select a work area by dragging your mouse. The rectangular area created
by the mouse drag will be set as a work area.
(2) Remove: Click your mouse over the work area that you want to remove.
(3) Resize: Move the mouse pointer over the center of each side of the work area.
When the shape of the mouse pointer is changed to a bi-directional
arrow, resize the work area by dragging your mouse.
※ Note: You can specify up to 40 work and paint areas altogether.
You can perform the following tasks in relation to a work area.
(1) Choose "Setup ▶ Create All Patterns" in the menu bar.
(2) Choose "Edit ▶ Edge Trace" in the menu bar.
(3) Choose "Edit ▶ Nonbase All Off" in the menu bar.
(4) Choose "Edit ▶ Add Pattern" in the menu bar.
(5) Choose "Edit ▶ Scan Reference" in the menu bar.
Work Area
