10) Add Check Point (Shift + H)
Change the mouse pointer mode to Check Point mode.
Place your mouse over a location where you want create a check point and click it.

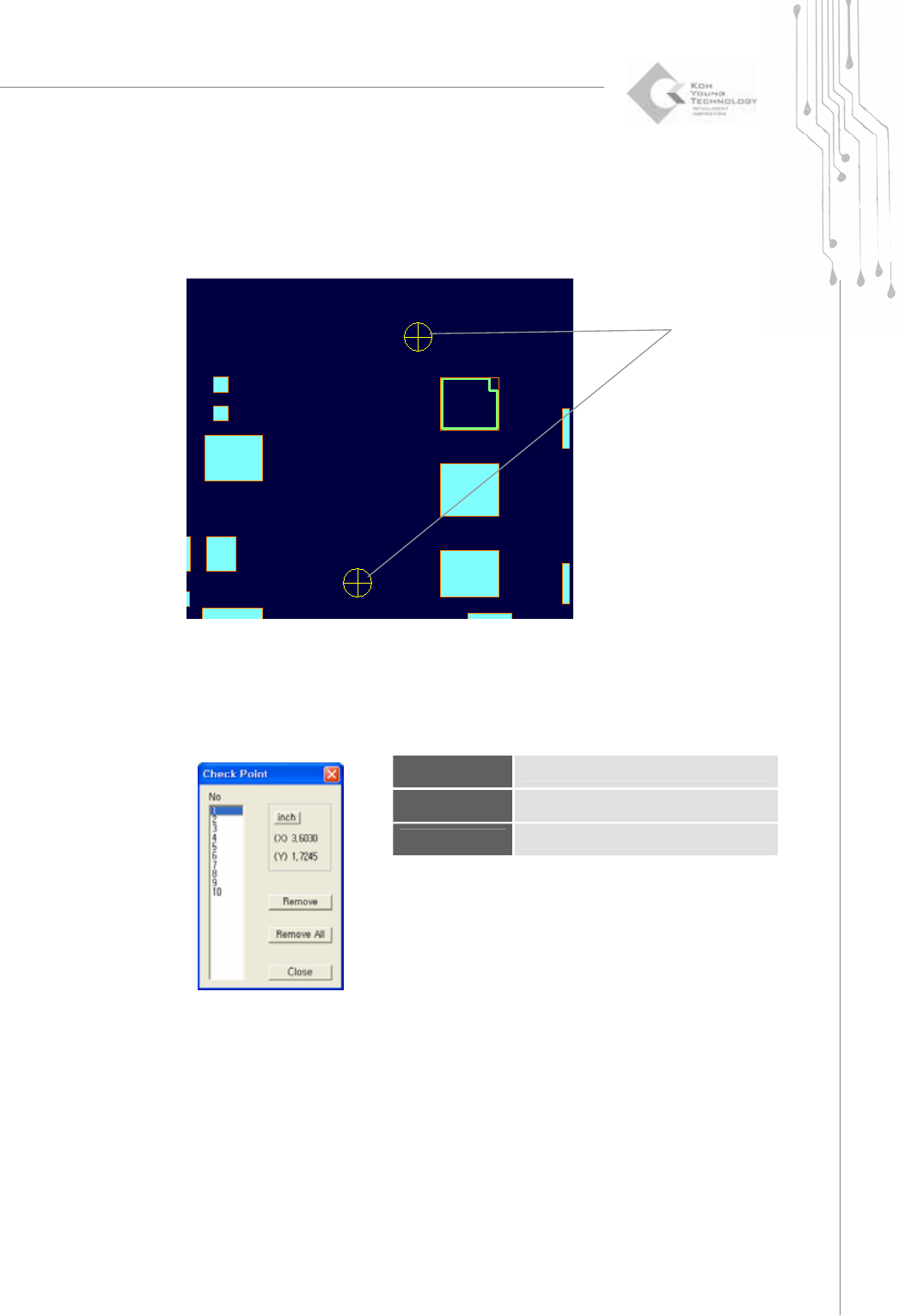

A check point will be created.
11) Edit Check Point (Shift+N)
Open the "Check Point" dialog box to edit data.
The “Check Point” Dialog Box
No
Check point number
Remove
Remove the selected check point.
Remove All
Remove all check points.
Check
Points
50 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems
12) Scan Reference (Currently not used)
You can scan through a group of identical pads within a work area as if they were a
single part.
Open the "Scan" dialog box to enter a reference code.

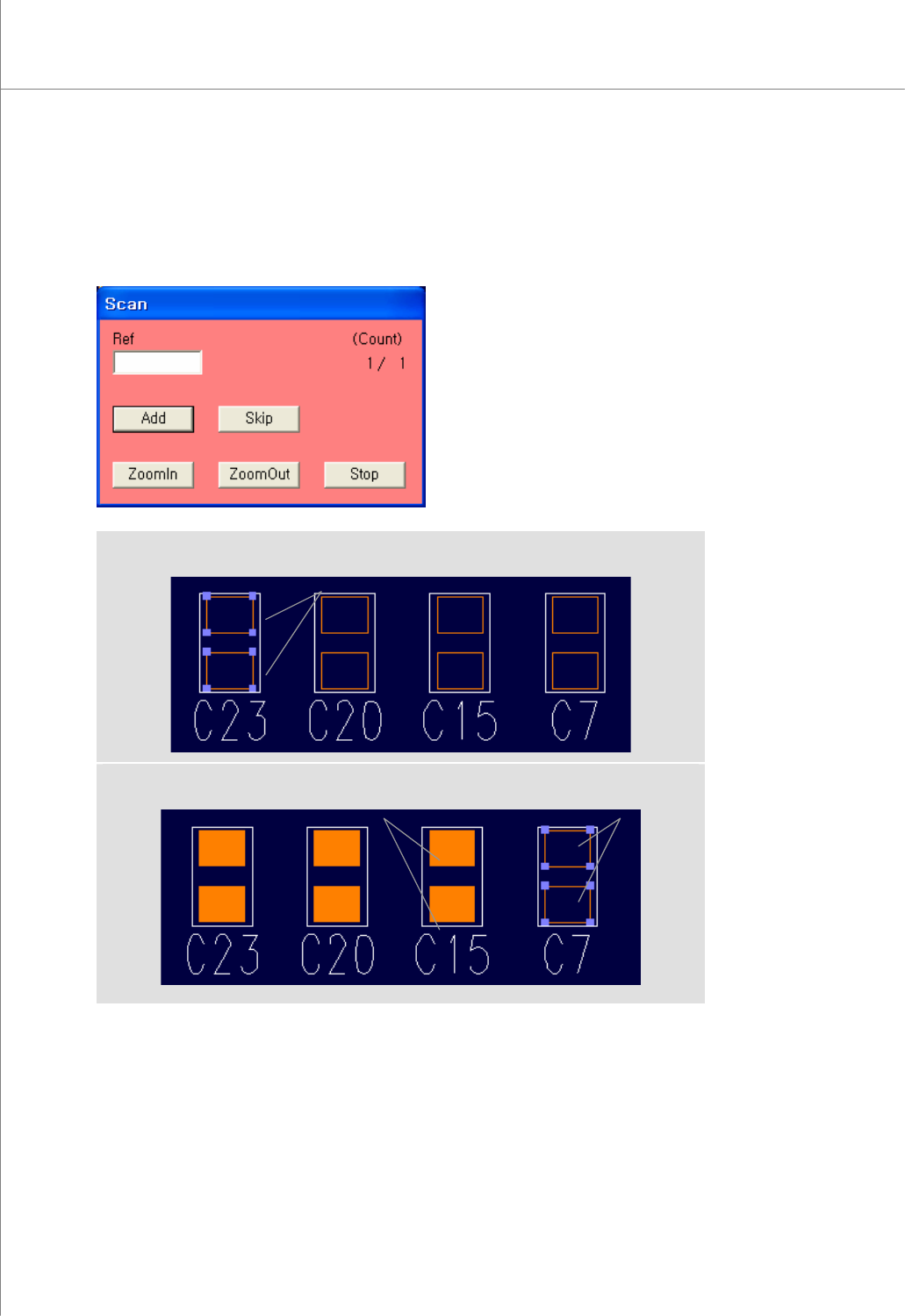

(Selecting a Pad)
(After Performing "Scan Reference")
Selected pads automatically Referenced pads
Selected pads
Programmers Manual
| 51

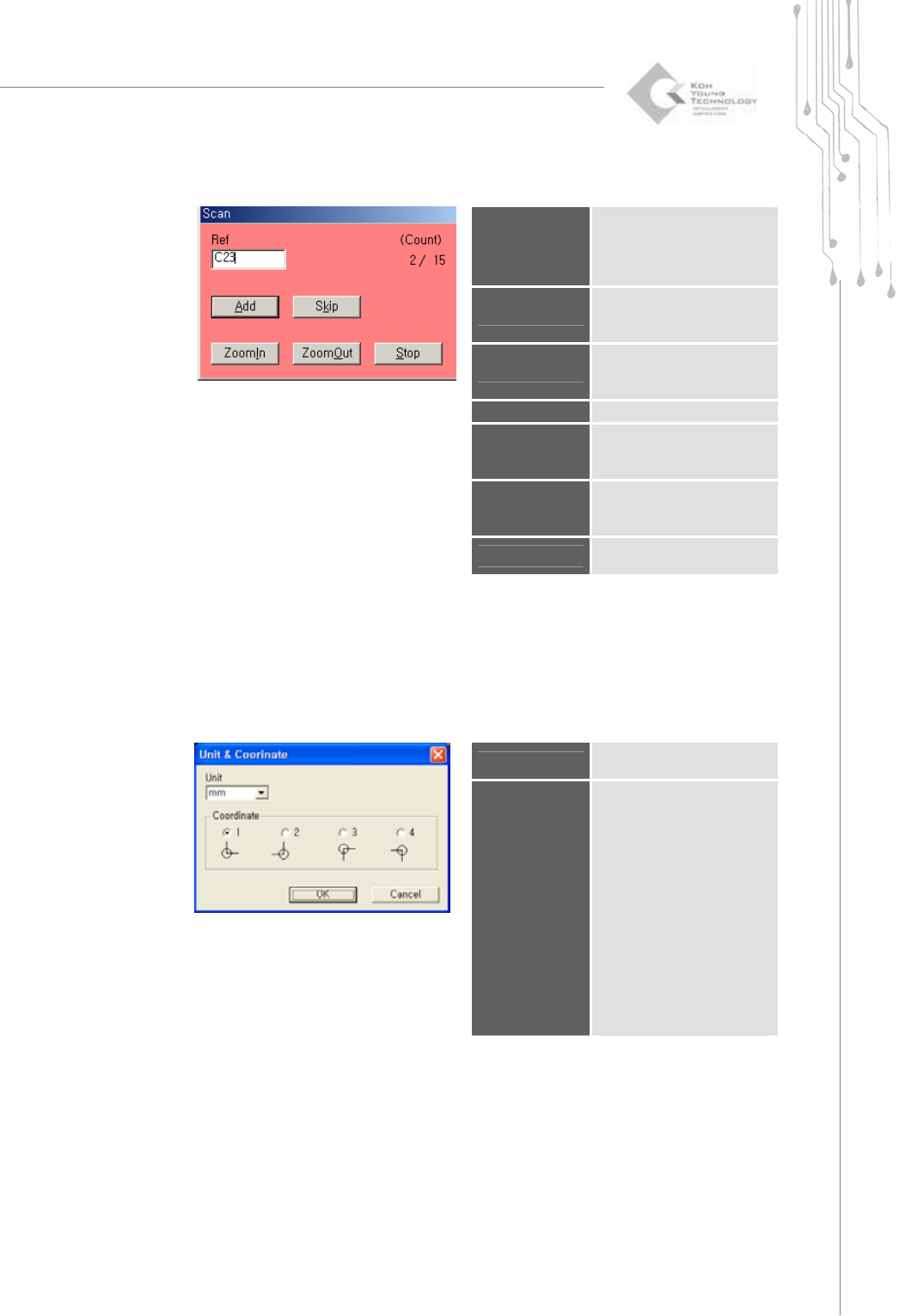

The "Scan" Dialog Box
Ref
Part reference code.
※ Note: You may not use
the same part reference
number twice.
(Count)
The number of pads found /
The total number of pads
scanned
Add
Assign a part reference
code to a group of selected
pads.
Skip
Move to the next pad group.
Zoom In
Zoom in the screen based
on the current center
position.
Zoom Out
Zoom out the screen based
on the current center
position.
Stop
Stop scanning and close the
dialog box.
13) Unit & Coordinate
Open the "Unit & Coordinate" dialog box to specify a display unit and coordinate
system.
The "Unit & Coordinate" Dialog Box
Unit
Select a unit. (Available
units: mm, inches)
Coordinate
1: Lower Left
2: Lower Right
3: Upper Left
4: Upper Right
Select a coordinate system.
Increase X-values to the
right. / Increase Y-values
upward.
Increase X-values to the left.
/ Increase Y-values upward.
Increase X-values to the
right. / Increase Y-values
downward.
Increase X-values to the left.
/ Increase Y-values
downward.
