2. CEditor
2.1. Program Structure

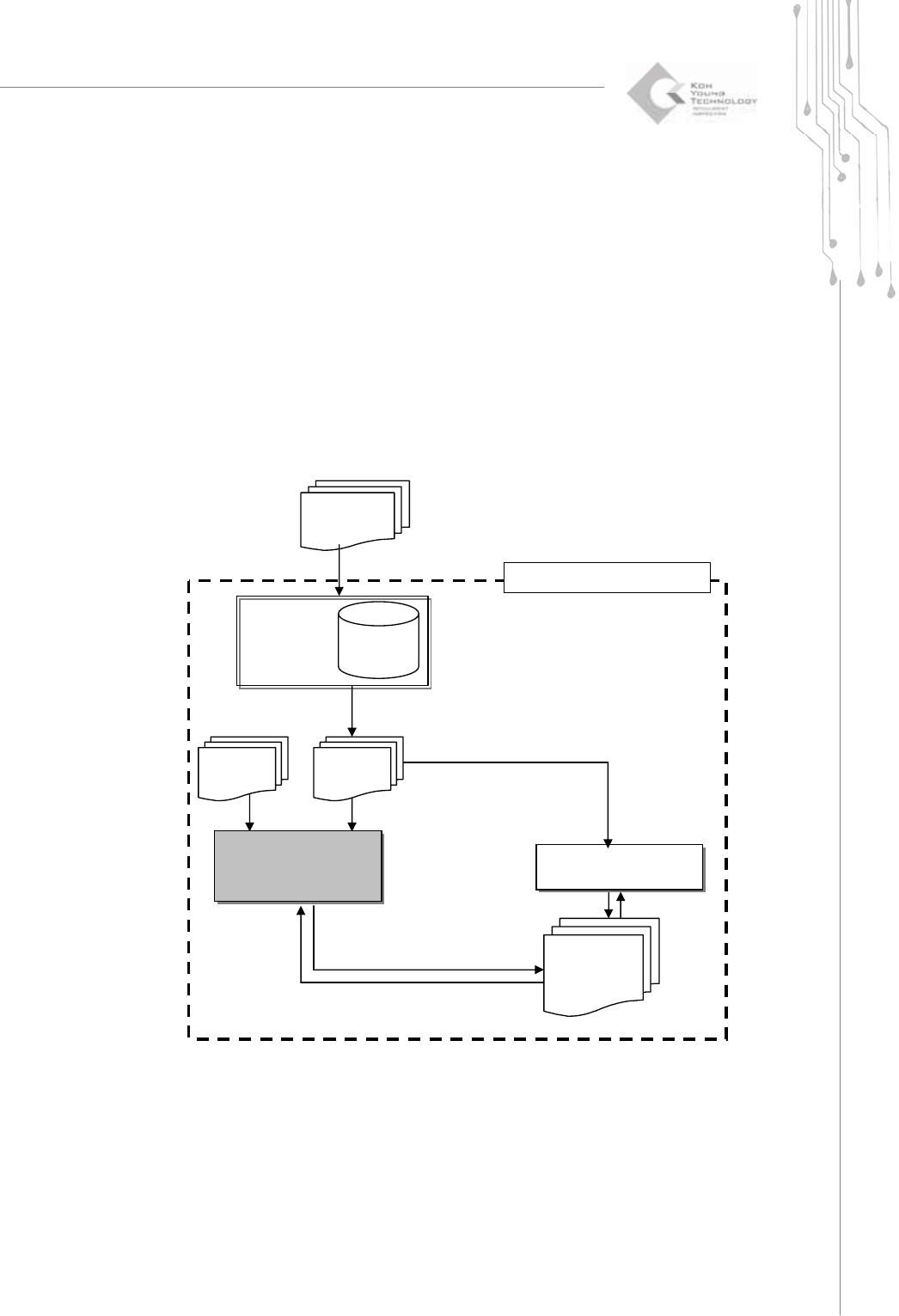

2.1.1. Data Flow Diagram
The CEditor program lets you to set the inspection tolerance and to group a series of
pads into a part and assign a part name and component ID to it for easier management
of pad files. In addition to the job file editing function of the 3D Inspector, the CEditor
program allows you to edit a pad or CAD file and save it into a job file for effective
management.
GerbPad
:Retrieve
Pad Data
Job File
*.gpd
Gerber File
*.gbr
CEditor
:Modify Pad File and
Project File
3D Inspector
:PCB Inspection
Pad File
*.pad
Project File
*.mdb
KY-3030 Series
CAD File
*.txt,*.asc
68 | KY-8030 Series(KYOS-2007001_rev0)
3DIn‐lineSolderPasteInspectionSystems

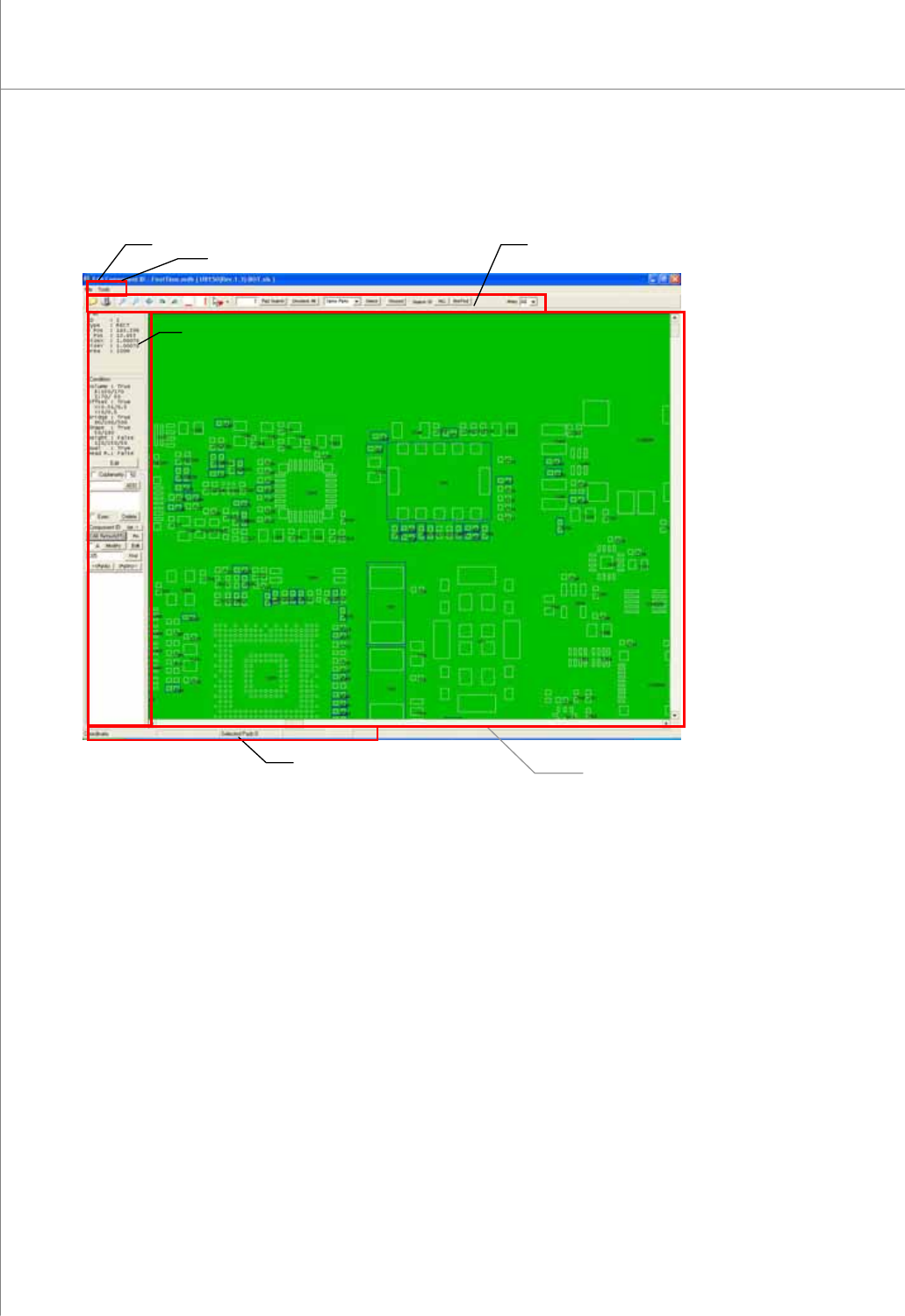

2.1.2. Screen Layout
Status Bar
Main View
Title Bar
Tool Bar
Menu Bar
Operation Window
